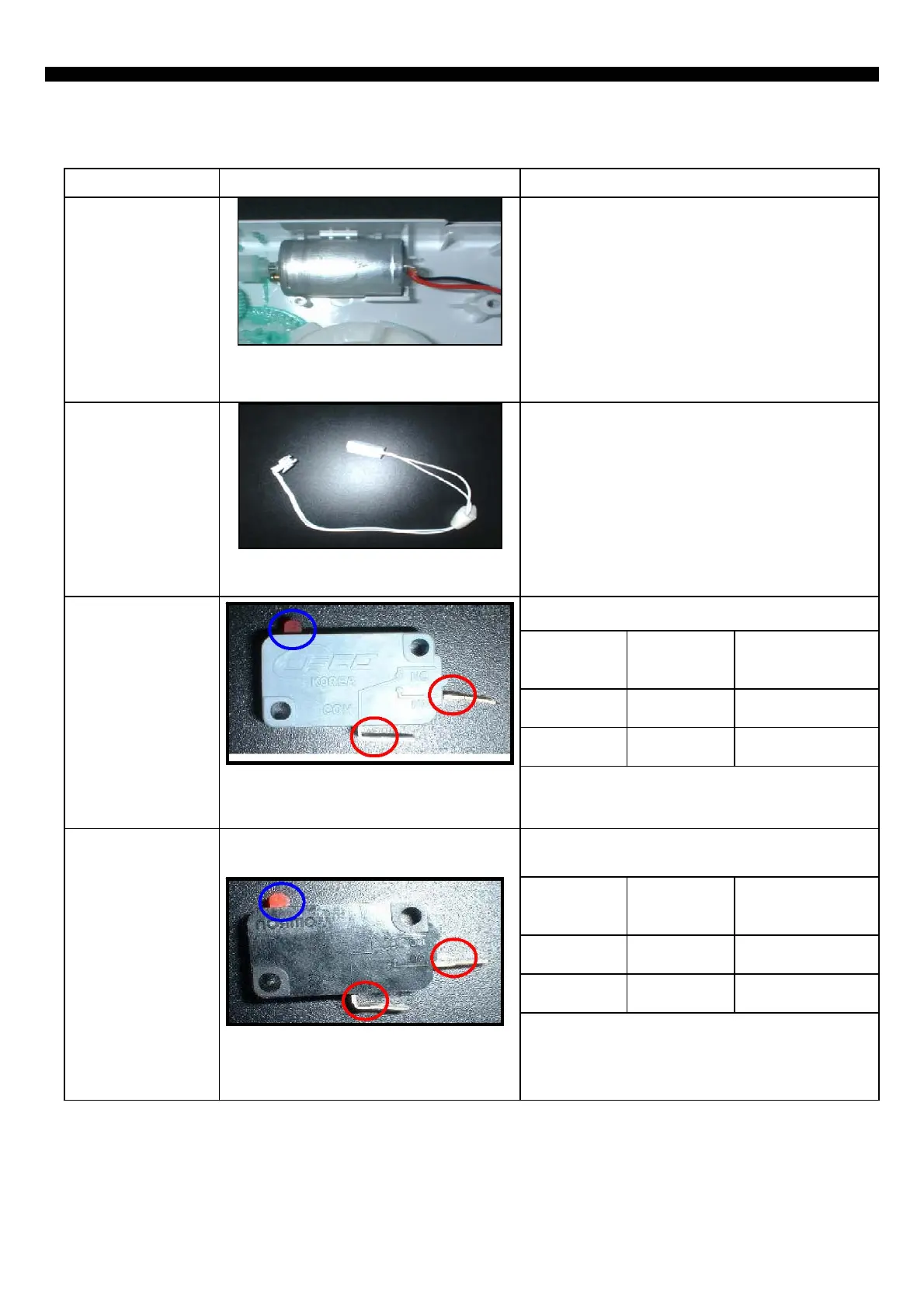

PARTS HOW TO CHECK CRITERION
Ice Dropping Motor
2) How to Check Ice Maker
▷ Check resistance value of 2 wires
with a Multi Tester.
▷ GOOD : RS-360RH-14250
: 6 ~ 14Ω
▷ DEFECTIVE :
Change the motor.
I-Sensor
(Ice Sensor)
▷ Check resistance value of 2 wires
with a Multi Tester.
▷ GOOD : 4.4 ~ 50kΩ
(It depends on surround temp.)
▷ DEFECTIVE :
Change the sensor.
Full Ice
Sensing Switch
▷ Check resistance value of 2 terminals
with a Multi Tester.
▷ GOOD :
▷ DEFECTIVE :
Change the switch.
Level Switch
▷ Check resistance value of 2 terminals
with a Multi Tester.
▷ GOOD :
▷ DEFECTIVE :
Change the switch.
Tact Switch
(Blue Circle)
Terminals
(Red circle)
Tester Result
(Resistance Mode)
ON (Close) Connected Some Value
OFF (Open) Disconnected No value (0)
Tact Switch
(Blue Circle)
Terminals
(Red circle)
Tester Result
(Resistance Mode)
ON (Close) Connected Some Value
OFF (Open) Disconnected No value (0)
