DAEWOO ELECTRONICS MINI - Power Train of Wall-Mounted Front-Load Washer MINI

3

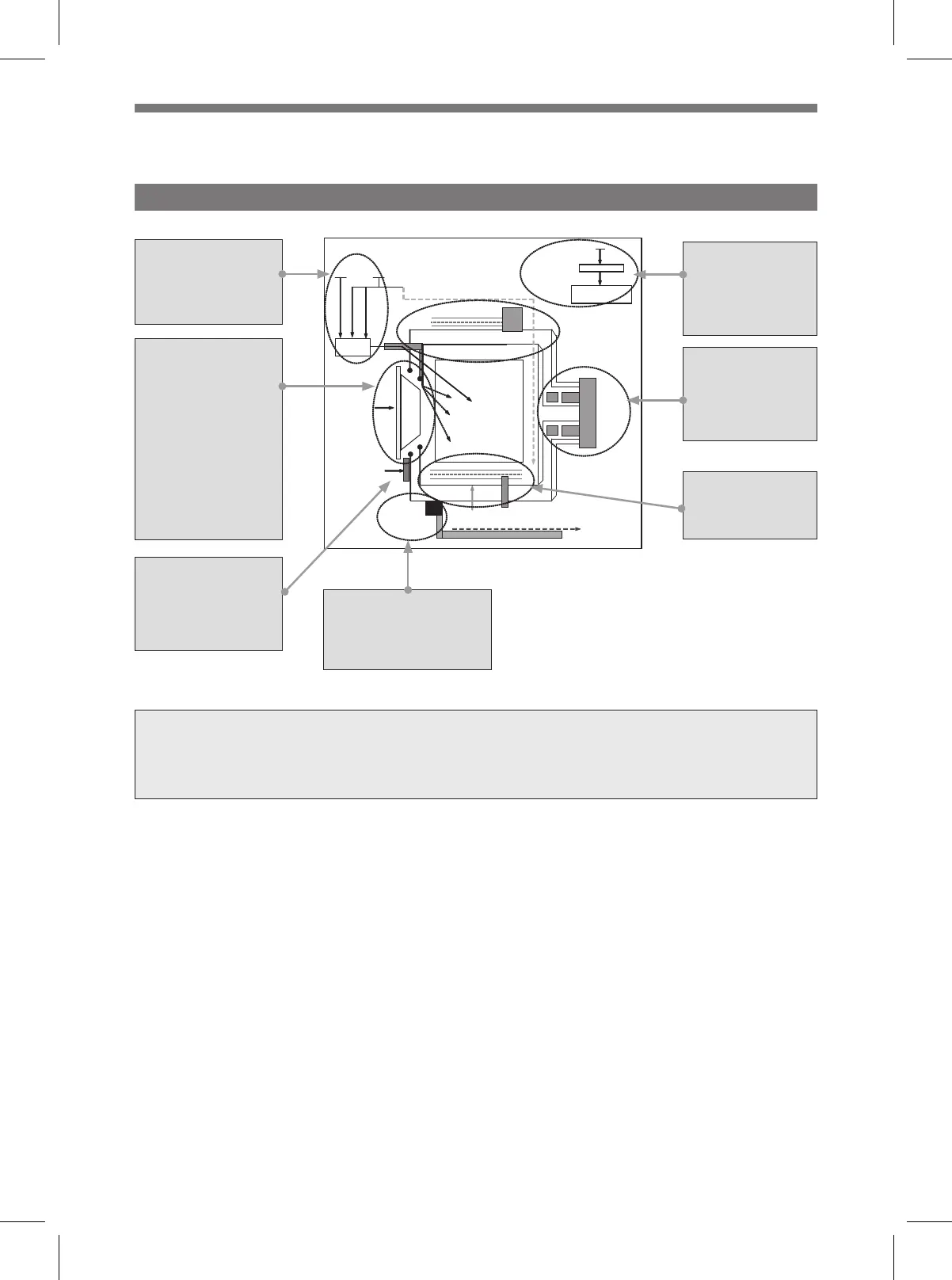

3. Power Train of Wall-Mounted Front-Load Washer MINI
4. WATER SUPPLY PART
• Cold Water: 3 holes
Cold water, Jet shower,
Rinse
• condensation water
6. DRY PARTS
• HEATER DRY : OPTION
• BLOWER FAN
• FAN MOTOR : BLDC
• THERMISTOR
• THERMOSTAT
: FUSE, BI-METAL
• CONDENSING SYSTEM
• DRY FAN DRIVE
→ GENERATION OF
HEATERʼS HEAT
→ TEMP. SENSOR
→ 95℃ OFF 90℃ ON:
OPTION
Water
Supply
Detergent
Container
Thermister
Door
Drainage
Pump
Washing
Heater
Thermister
Inverter
Motor
Drum
Program
Electricity Input
Noise Filter
5. DOOR
• Door lock S/W
• Lock hinge
• Door AS: Glass
• Gasket
• DOOR OPEN SWITCH
7. DRAINAGE PART
• Natural drainage system:
Natural drainage
• Valve housing
• Hose
3. HEATING PART
• Water Heater: 1400W
• Washing temperature
sensor
2. DRIVING PART
• Inverter Motor
• Drum
• Bearing
• Spider/ shaft
• Tub
1. CONTROL PART
• Main PCB
• Front PCB(Touch Type)
• Harness
• Noise filter
• 250V,10A,FUSE(15A)
Door Switch
• Inverter Motor: Transforms electric energy into mechanical energy
• Highly powerful and functional inverter motor rotates the system.
