ADJUSTMENTS

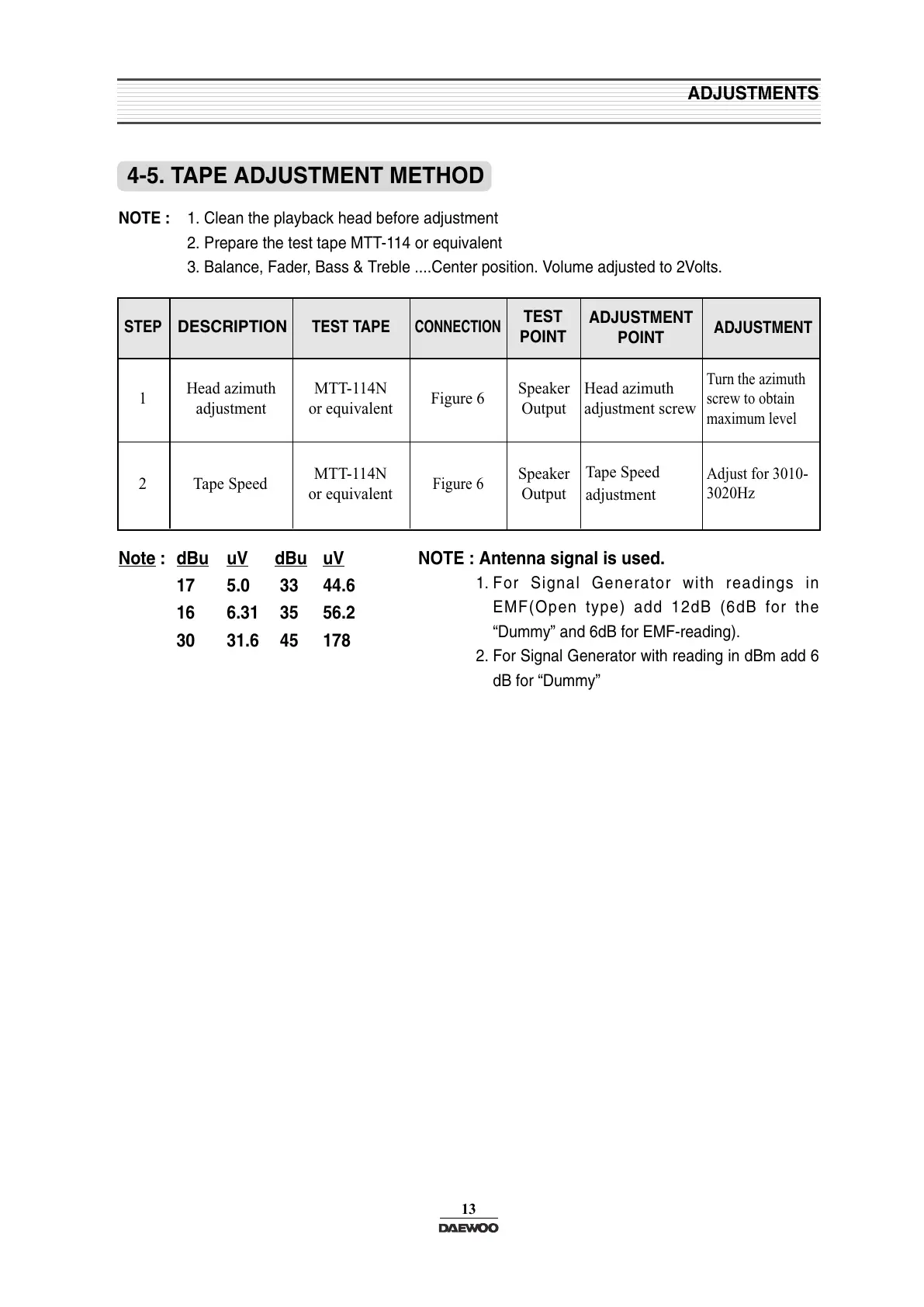

4-5. TAPE ADJUSTMENT METHOD
13
NOTE : 1. Clean the playback head before adjustment
2. Prepare the test tape MTT-114 or equivalent
3. Balance, Fader, Bass & Treble ....Center position. Volume adjusted to 2Volts.
Note
: dBu uV
dBu uV
17 5.0 33 44.6
16 6.31 35 56.2
30 31.6 45 178
NOTE : Antenna signal is used.
1. For Signal Generator with readings in
EMF(Open type) add 12dB (6dB for the
“Dummy” and 6dB for EMF-reading).
2. For Signal Generator with reading in dBm add 6
dB for “Dummy”
STEP
1
Head azimuth
adjustment
Tape Speed
Figure 6
Figure 6
MTT-114N
or equivalent
MTT-114N
or equivalent
Speaker
Output
Speaker
Output
Head azimuth
adjustment screw
Turn the azimuth
screw to obtain
maximum level
Adjust for 3010-
3020Hz
Tape Speed
adjustment
2
DESCRIPTION
TEST TAPE
CONNECTION
TEST
POINT
ADJUSTMENT
POINT
ADJUSTMENT
To Next Page
