DECK MECHANISM EXPLODED VIEW & PARTS LIST
26

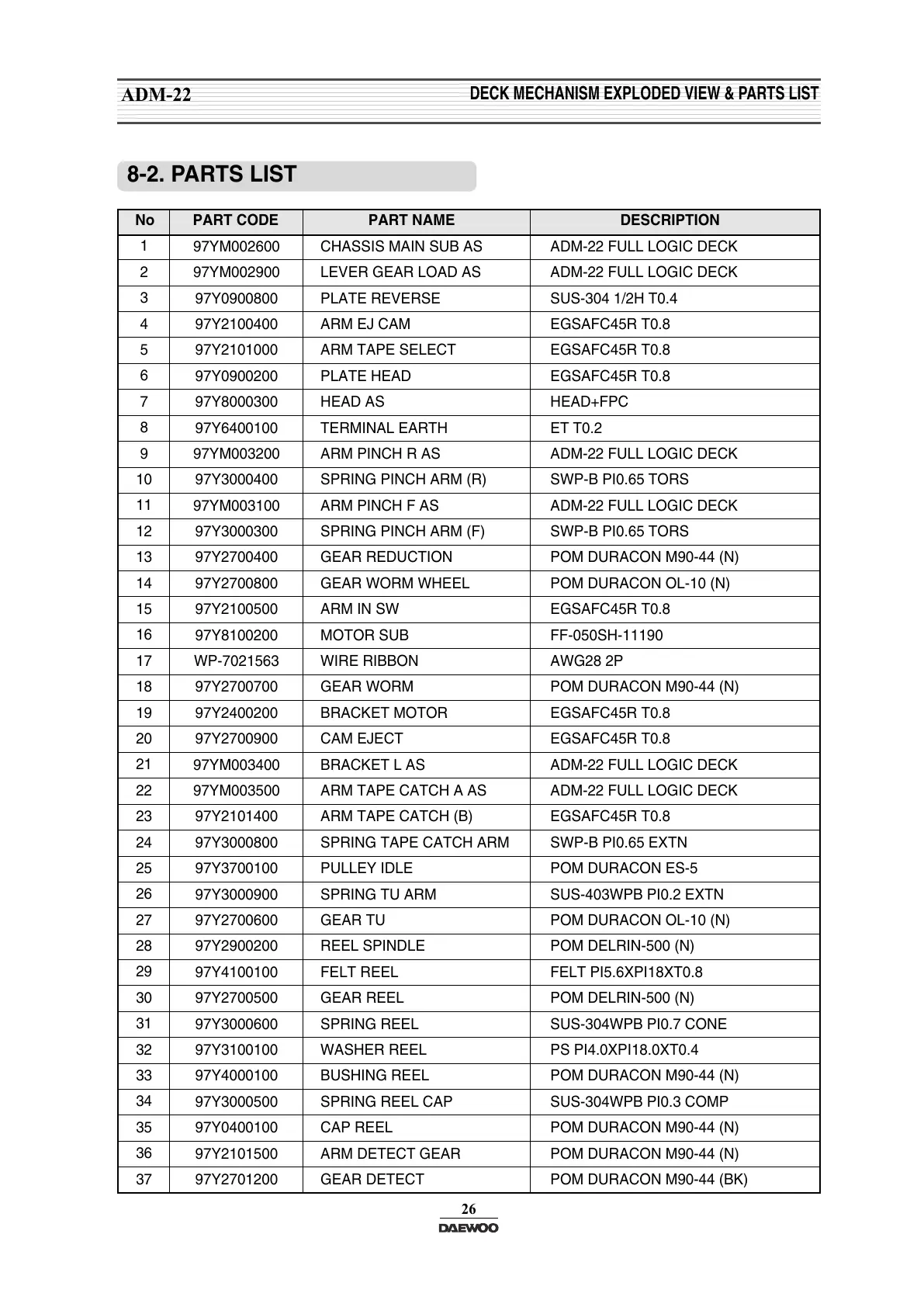

8-2. PARTS LIST
No PART CODE
97YM002600
97YM002900
97Y0900800
97Y2100400
97Y2101000
97Y0900200
97Y8000300
97Y6400100
97YM003200
97Y3000400
97YM003100
97Y3000300
97Y2700400
97Y2700800
97Y2100500
97Y8100200
WP-7021563
97Y2700700
97Y2400200
97Y2700900
97YM003400
97YM003500
97Y2101400
97Y3000800
97Y3700100
97Y3000900
97Y2700600
97Y2900200
97Y4100100
97Y2700500
97Y3000600
97Y3100100
97Y4000100
97Y3000500
97Y0400100
97Y2101500
97Y2701200
PART NAME
CHASSIS MAIN SUB AS
LEVER GEAR LOAD AS
PLATE REVERSE
ARM EJ CAM
ARM TAPE SELECT
PLATE HEAD
HEAD AS
TERMINAL EARTH
ARM PINCH R AS
SPRING PINCH ARM (R)
ARM PINCH F AS
SPRING PINCH ARM (F)
GEAR REDUCTION
GEAR WORM WHEEL
ARM IN SW
MOTOR SUB
WIRE RIBBON
GEAR WORM
BRACKET MOTOR
CAM EJECT
BRACKET L AS
ARM TAPE CATCH A AS
ARM TAPE CATCH (B)
SPRING TAPE CATCH ARM
PULLEY IDLE
SPRING TU ARM
GEAR TU
REEL SPINDLE
FELT REEL
GEAR REEL
SPRING REEL
WASHER REEL
BUSHING REEL
SPRING REEL CAP
CAP REEL
ARM DETECT GEAR
GEAR DETECT
DESCRIPTION
ADM-22 FULL LOGIC DECK
ADM-22 FULL LOGIC DECK
SUS-304 1/2H T0.4
EGSAFC45R T0.8
EGSAFC45R T0.8
EGSAFC45R T0.8
HEAD+FPC
ET T0.2
ADM-22 FULL LOGIC DECK
SWP-B PI0.65 TORS
ADM-22 FULL LOGIC DECK
SWP-B PI0.65 TORS
POM DURACON M90-44 (N)
POM DURACON OL-10 (N)
EGSAFC45R T0.8
FF-050SH-11190
AWG28 2P
POM DURACON M90-44 (N)
EGSAFC45R T0.8
EGSAFC45R T0.8
ADM-22 FULL LOGIC DECK
ADM-22 FULL LOGIC DECK
EGSAFC45R T0.8
SWP-B PI0.65 EXTN
POM DURACON ES-5
SUS-403WPB PI0.2 EXTN
POM DURACON OL-10 (N)
POM DELRIN-500 (N)
FELT PI5.6XPI18XT0.8
POM DELRIN-500 (N)
SUS-304WPB PI0.7 CONE
PS PI4.0XPI18.0XT0.4
POM DURACON M90-44 (N)
SUS-304WPB PI0.3 COMP
POM DURACON M90-44 (N)
POM DURACON M90-44 (N)
POM DURACON M90-44 (BK)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
ADM-22
