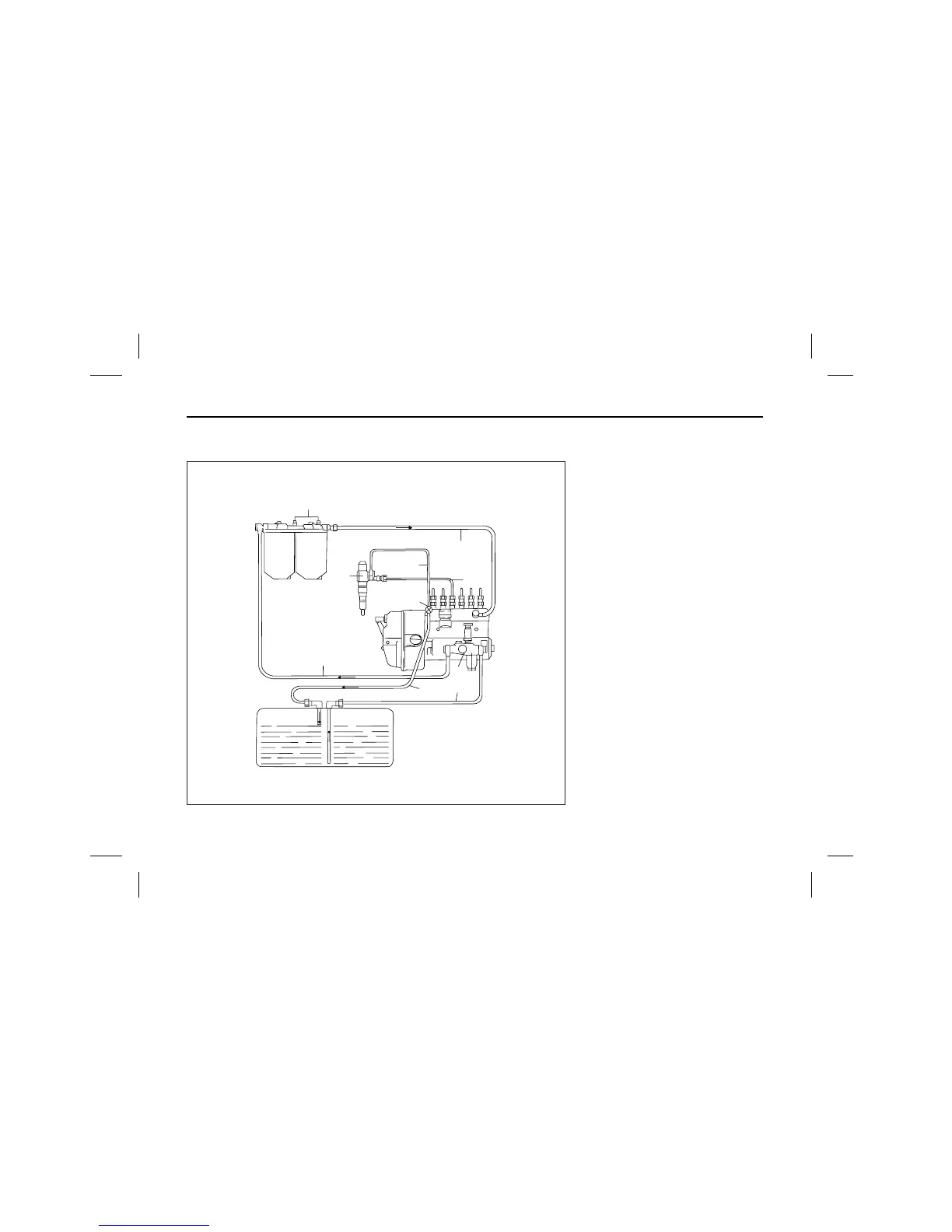

Fuel system diagram
D1146 ENGINE
1. Fuel filter ыь
2. Air bleeder screw
3. Injection nozzle
4. Fuel return pipe
5. Fuel feed pipe
(filter ؠ pump)
6. Overflow valve
7. Injection pipe
8. Fuel feed pipe
(pump ؠ filter)
9. Fuel tank
10. Fuel return pipe
11. Fuel suction pipe
12. Fuel feed pump
13. Injection pump
13
12
11
10
9
8
6
3
4
7
5
2
1
1
