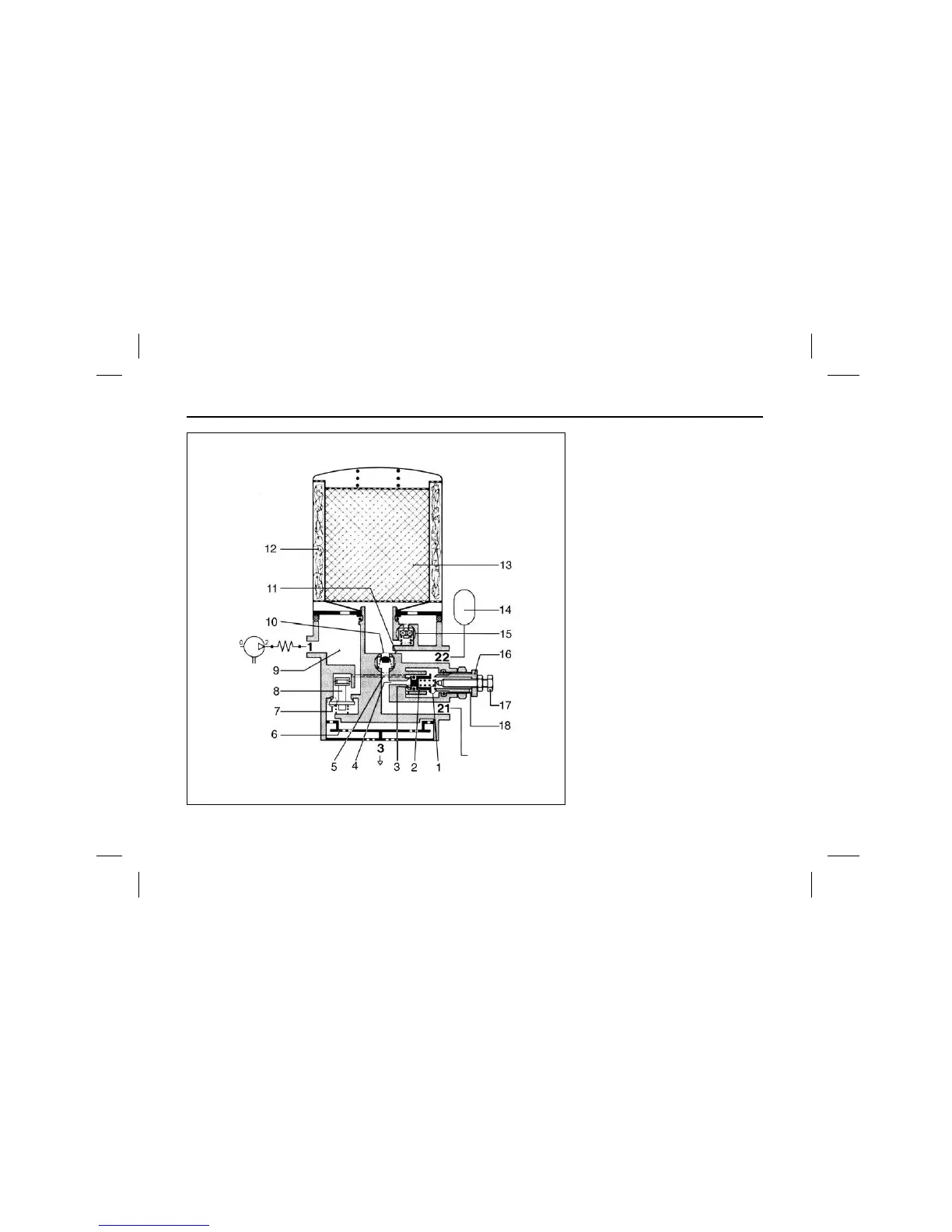

1. Outlet
2. Control piston
3. Inlet
4. Bore
5. Bore
6. Sliencer
7. Outlet
8. Blow–off valve
9. Preliminary dewatering chamber
10. Non–return valve
11. Nozzle
12. Ring filter
13. Desiccant
14. Regeneration air tank
15. Bypass valve
16. Adjusting screw
17. Adjusting screw
18. Vent bore
Connections
1. Energy inlet
21. Energy outlet
(to energy accumulator)
22. Energy outlet
(to regeneration air tank)
3. Vent
