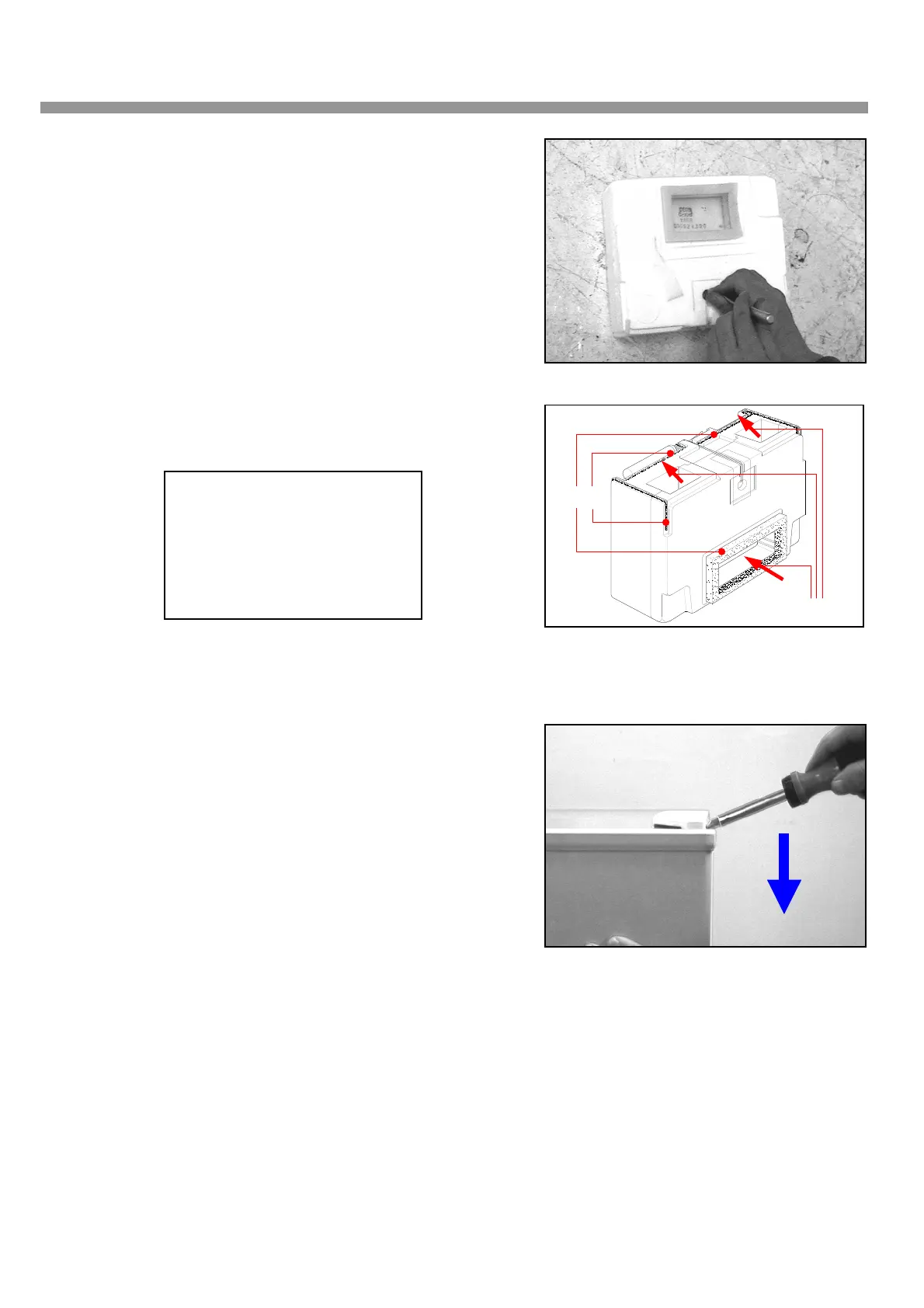

Methods of exchanging main parts
10) Spread out the R-damper sensor
11) Take out the damper by separating the damper insulated
object A and B
1. Replace the tape or seal to the original
positions.
2. Do not block the cool air discharge duct.
(Possible interruption by tape or seal).
3. Attach the damper sensor in S-shape to the
insulated object for easy assembly.
12. Top Hinge Cover
1) Take of the hinge cover.
Assembly Caution Points
Seal body
Cool air discharge duct
12
