OPERATION AND FUCTIONS
CONTENTS REMARKS

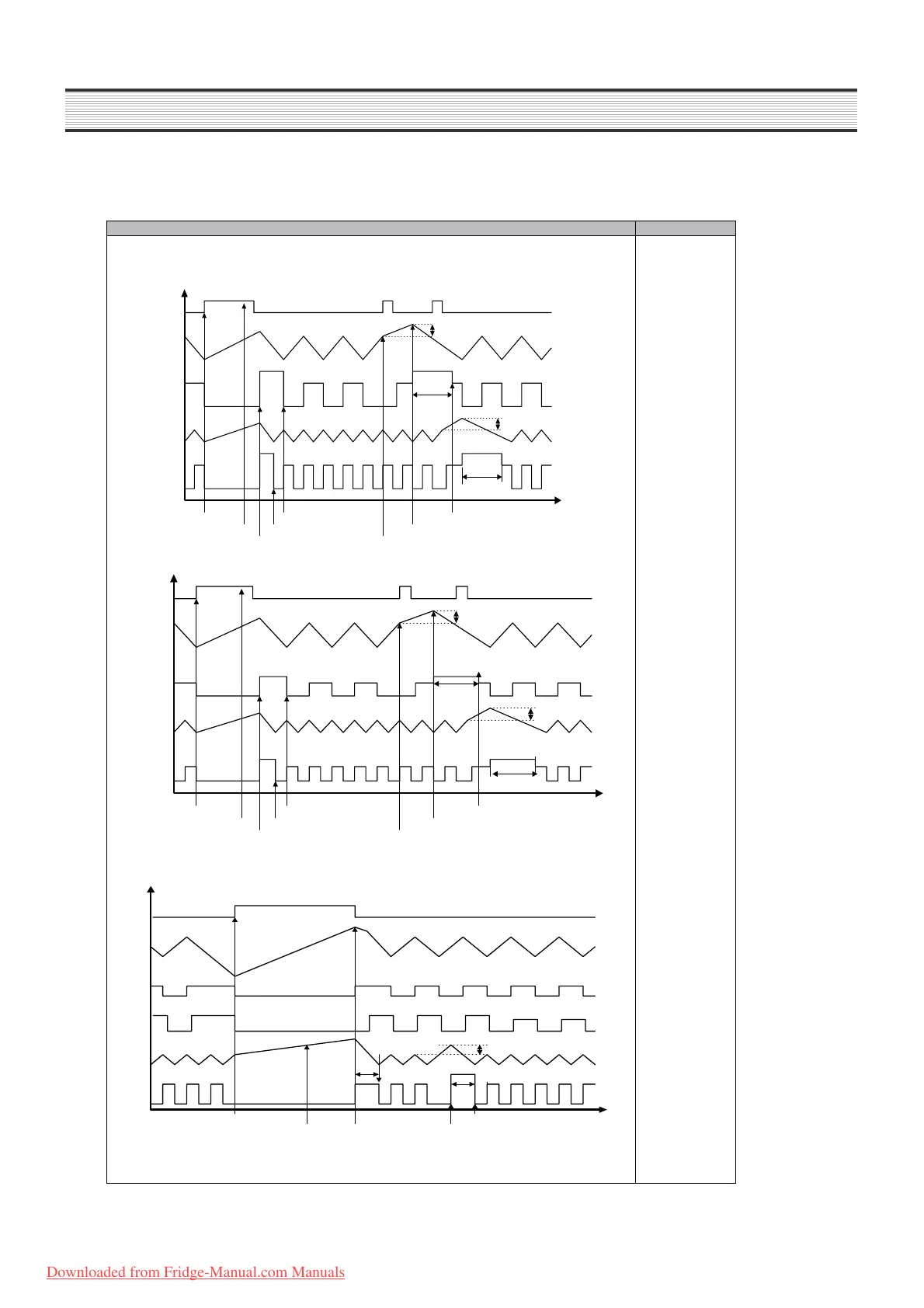

3. Control Time Chart of Each Mode
1) Start & stop of load control mode (Normal Control)
Door
F/S
F Fan
R/S
R Fan
Door Open
30 sec. after Open
Load Mode Start
Frz. Load Stop
Rez. Load Stop
On + 5deg
On + 5deg
Frz. Overload Input
Frz. Start Condition
Frz. Stop ; after 20min.
20min.
20min.
Ref. Load
14V
14V
12V
12V
2) Start & stop of load control mode (Silence Control)
Door
F/S
F Fan
R/S
R Fan
Door Open
30sec. after open
Load Mode Start
Ref. Load Stop
Frz. Load Stop
On + 5deg
On + 5deg
Frz. Overload Input
Frz. Load Start
Frz. Stop Condition ;
after 20min.
20min.
20min.
Ref. Load
12V
12V
10V
8V
3) Start & stop of load control mode (Normal defrosting control)
F/S
F Fan
R/S
R Fan
Defrosting Start
Condition to start Load
Mode, but avoided
buring defrosting mode
Ref. Load Stop
On + 5deg
No rm al O peratio n
20min.
Ref. Load Mode
14V
12V
8V
HTR
Comp
