27

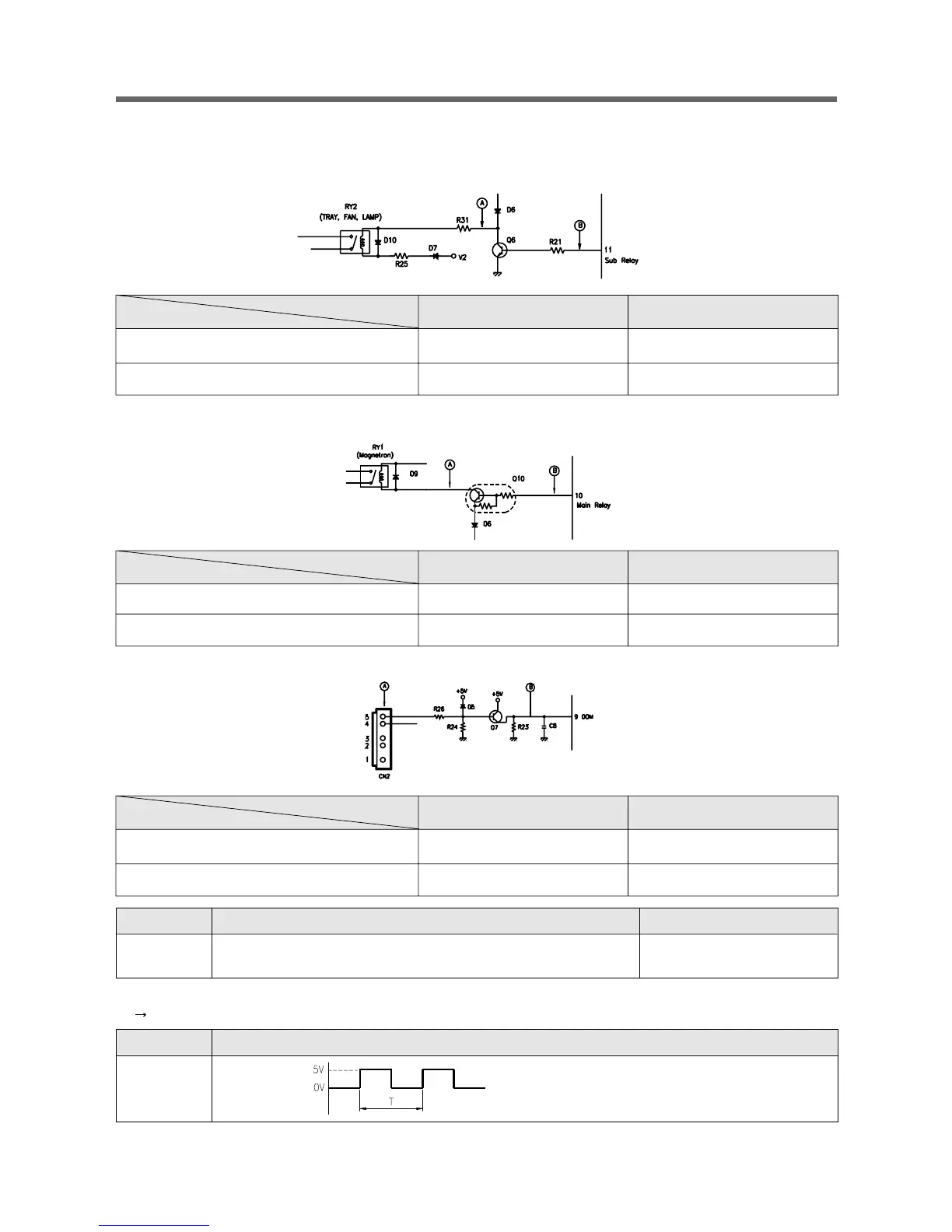

3. When there is no microwave oscillation
1) When touching the
START pad, oven lamp does not turn on.
Fan motor does not rotate, but cook indicator in display comes on.
- Check method
2) When touching the START pad, oven lamp turns on.
Fan motor and turntable rotate and cook indicator in display comes on.
- Check method
4. When the door is opened during operation, the count down timer does not stop.
-Check method
5. When the digital clock does not operate properly.
Refer to Circuit Diagram.
* If clock does not keep exact time, you must check R12,R17,D8,C3 and zener diode ZD1.
STATE
POINT
AB
RELAY 2 ON 5VDC GND
RELAY 2 OFF GND 15VDC
STATE
POINT
AB
RELAY 1
ON 5VDC GND
RELAY 1 OFF GND 15VDC
STATE
POINT
AB
1) DOOR OPEN OPEN 5VDC
2) DOOR CLOSED CLOSE GND
CHECK NO METHOD REMEDY
1 Check the stage (ON, OFF) of the door open monitor switch by Replace door open monitor
resistance measurement. switch.
POINT WAVE FORM
IC 1 PIN 8
T:20ms(50Hz)
