2-26 Operating Controls 022-00028AE Operation and Maintenance Manual
21. BLANK (EMPTY SWITCH SOCKET)
A blank socket is provided for addition of
accessory switches.
22. BUCKET FLOAT SWITCH (OPTION)
Bucket float allows the bucket to follow the
contour of the ground/working surface.
When pressing this switch and setting
work lever to floating position, lever is
locked (detent) and boom is lowered.
When boom is matched to setting position,
lever locking is released and lever is
turned to "NEUTRAL" position and boom
lowering is stopped.
O. In this position, this switch turns
"OFF" bucket float.
I. In this position, this switch turns "ON"
bucket float.

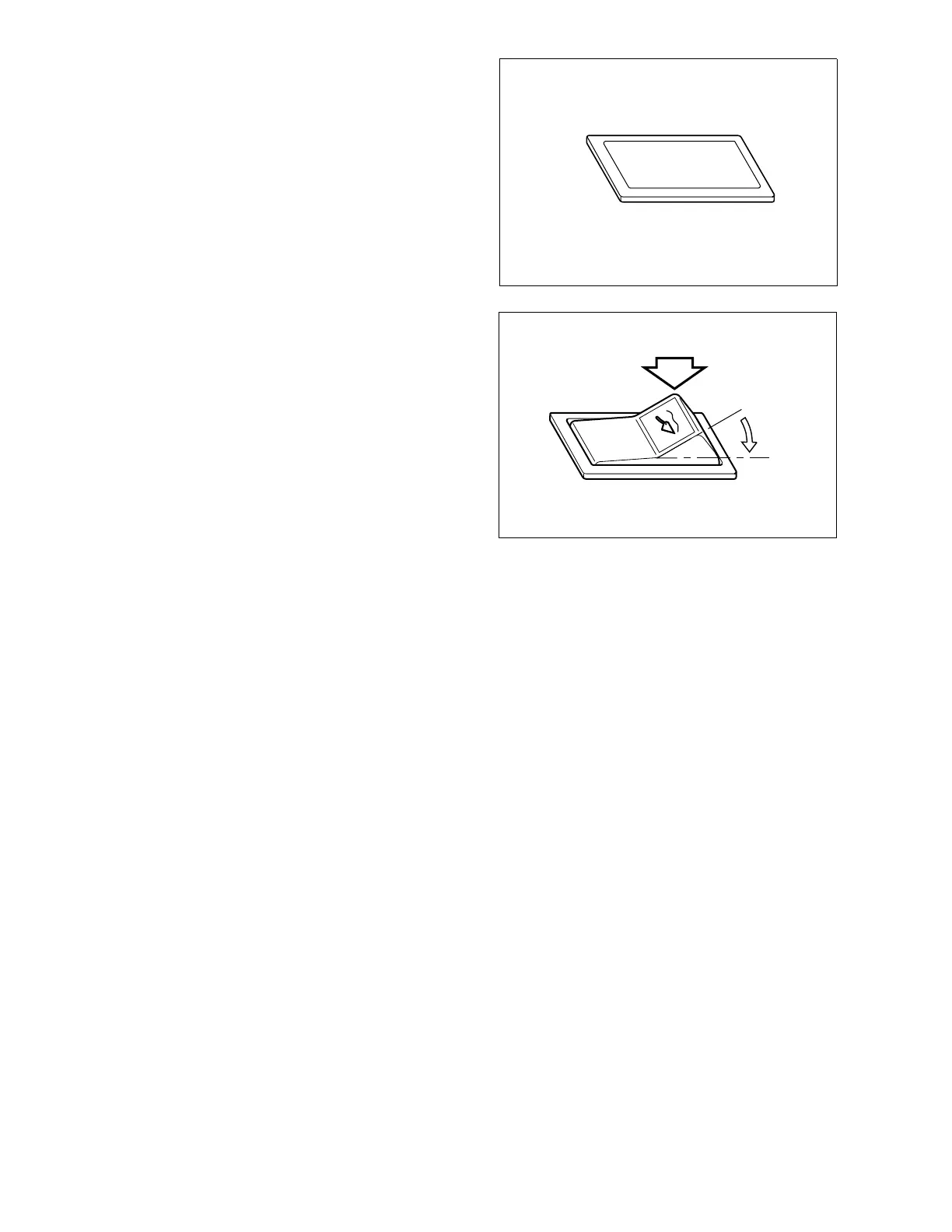

HAOA734L
Figure 44
HA0O2027
I
O
Figure 45
