022-00028AE Operation and Maintenance Manual Operating Controls 2-57

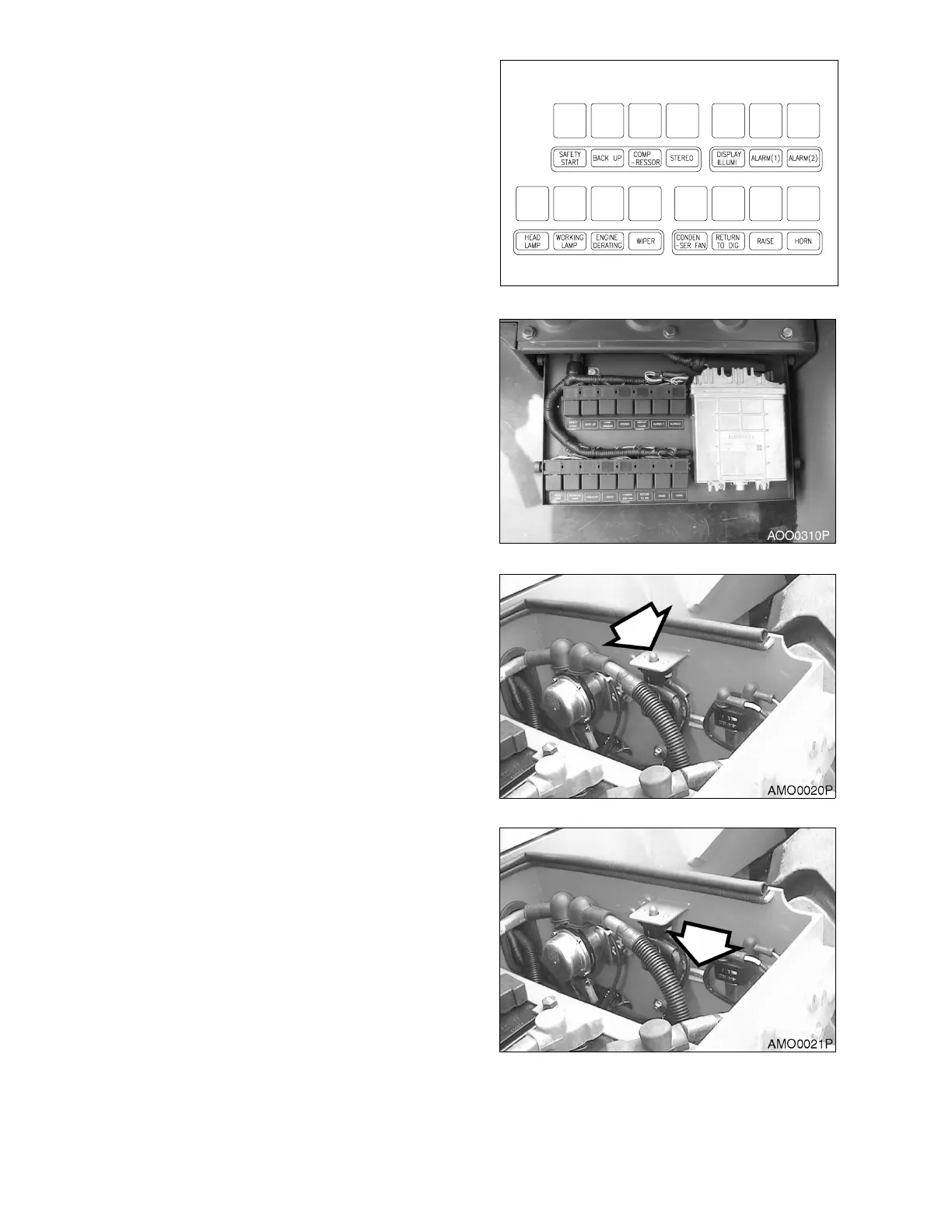

RELAY
The relays are in the electrical box under the
seat. If the problem is not solved after replacing
the fuse, check the function of the relay.
CIRCUIT BREAKER
A circuit breaker is next to the relay by the
batteries at back of unit under engine
compartment hood. When a short circuit or an
overload occurs, the circuit breaker
automatically cuts-off current, thus preventing
electrical wires from burning.
FUSIBLE LINK
A fusible link is in the battery box. If electric
power is not present at the "I" (ON) position of
the starter switch, check the fusible link first.
NOTE:
If fuse wire is burnt off, replace
link.
APO0210L
Figure 105
Figure 106
Figure 107
Figure 108
