CF65/75/85 series Pneumatic section of gearbox
TECHNICAL DATA
3-3

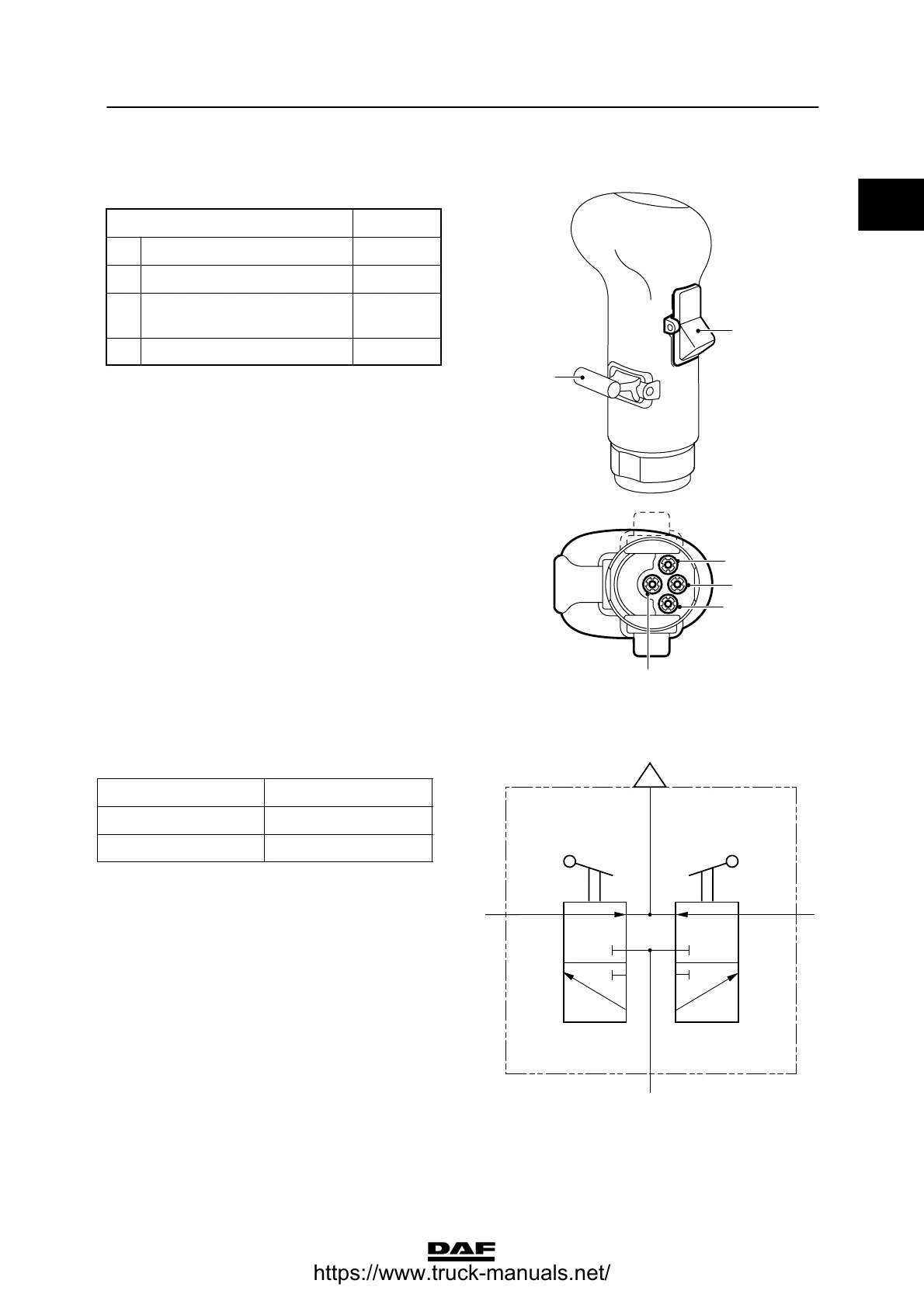

GEAR LEVER SELECTOR VALVE
Range-change gear and splitter
Connection point
Colour
1 Supply Black
3 Bleed Red
21 Range-change gear
command (A)
White
22 Splitter command (B) Yellow
V300489
21
1
22
B
A
3
PNEUMATIC SYMBOL
Range-change gear and splitter
Position
Function
GP Range-change gear
GV Splitter
1
22 21
GV GP
H
L
H
L
V300161
ᓻ 200337
