3
CF65/75/85 series Description of components
GEARBOX - PNEUMATIC SECTION
2-9

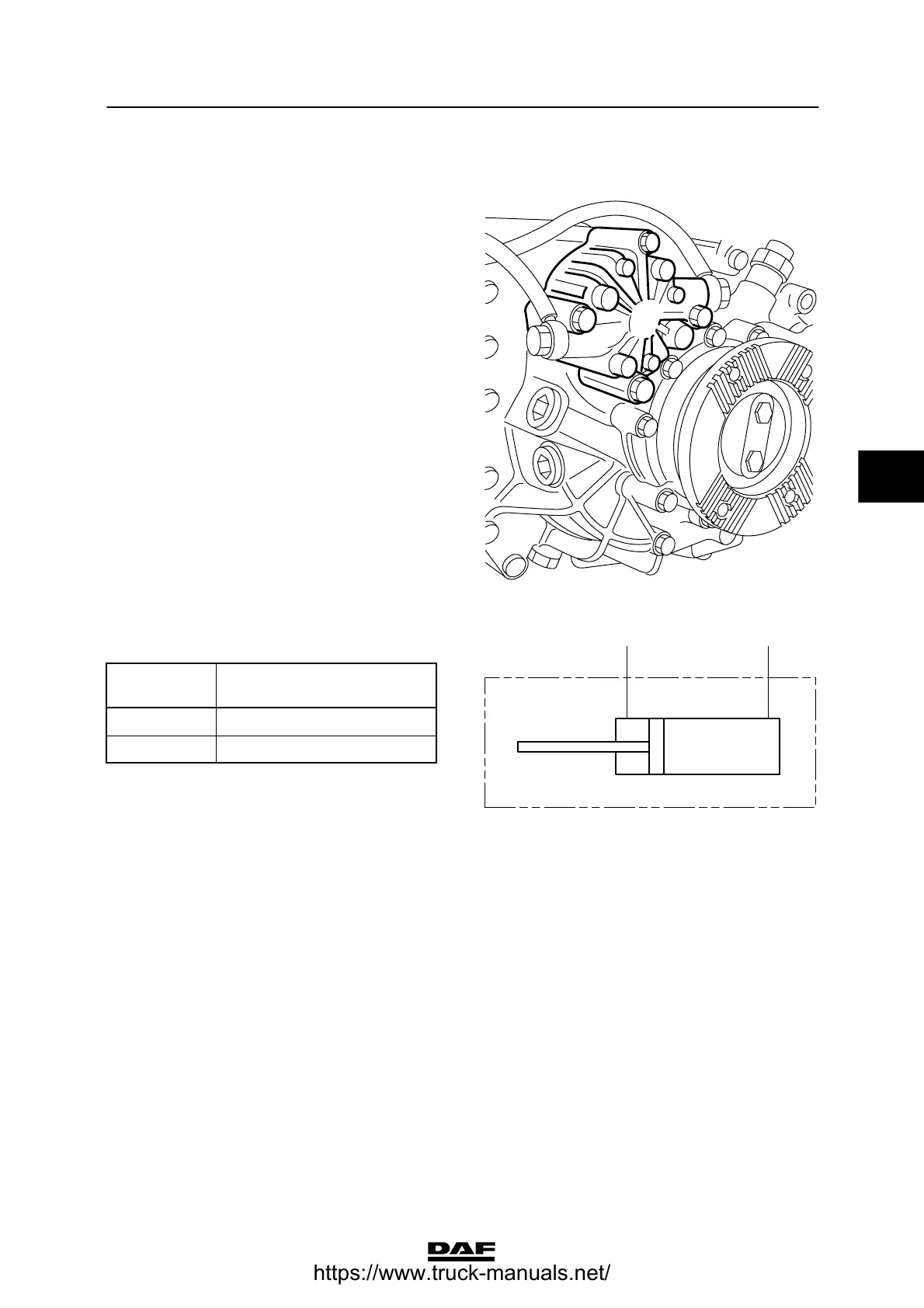

2.4 HIGH/LOW RANGE ENGAGING CYLINDER
V300141
Pneumatic symbol
Connection
point
Function
25 Range-change gear high
26 Range-change gear low
Operation
The engaging cylinder controlling the
high/low section of the gearbox, receives its
supply via the electropneumatic protection valve.
This protection valve is operated by the selector
valve on the gear lever. The gear engaging
cylinder is located at the rear end of the
gearbox.
V300142
26
HL
25
4
ᓻ 200337
