3
CF65/75/85 series Description of components
GEARBOX - PNEUMATIC SECTION
2-13

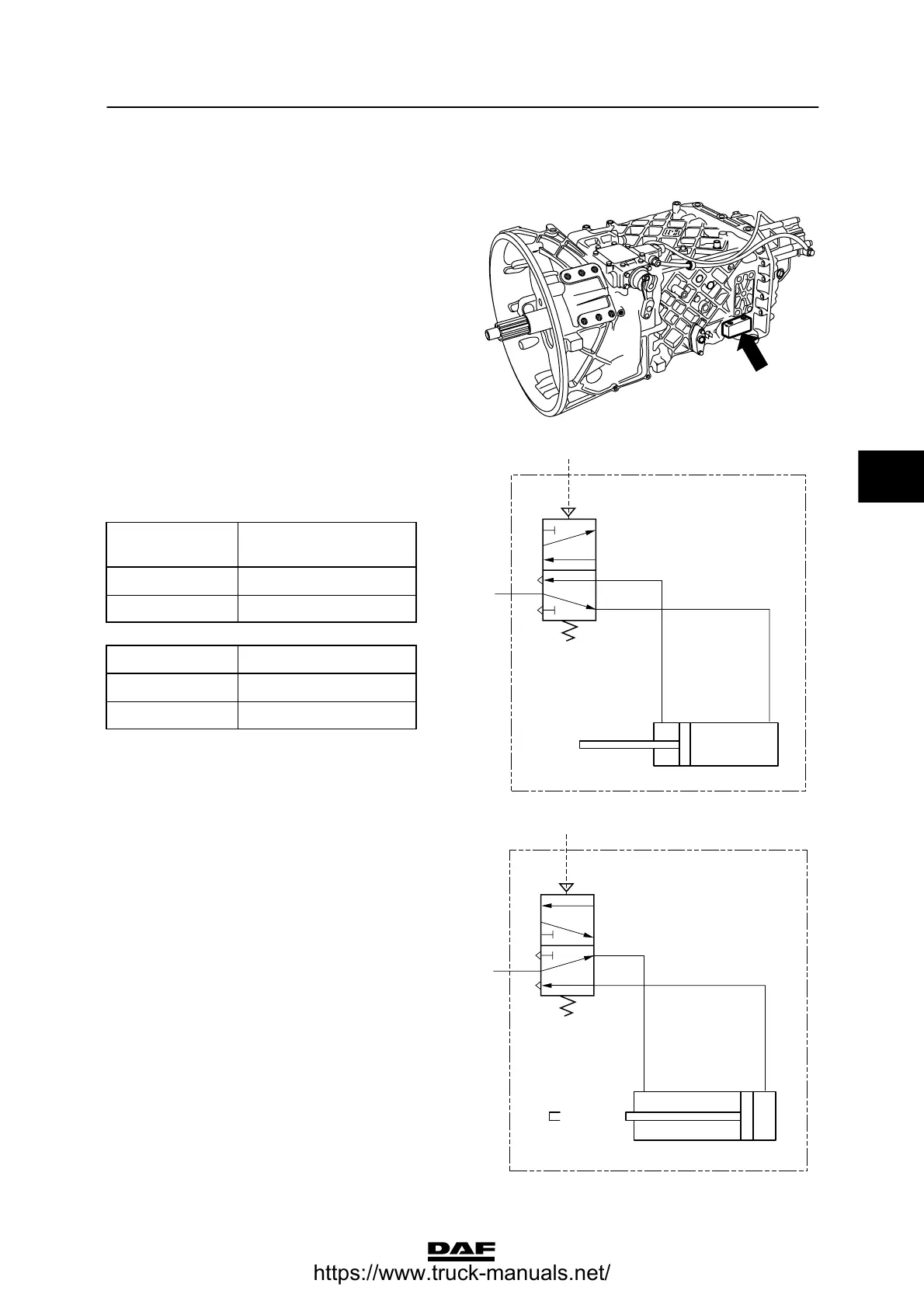

2.7 SPLITTER RELAY VALVE
In 16 S gearboxes, the splitter relay valve is
located at the left-hand side of the gearbox. The
valve is a 5/2 valve.
Depending on the type of gearbox (direct input
or overdrive), two variants are possible.
V300169
Pneumatic symbol
V300162 overdrive gearbox
V300163 direct input gearbox
Connection
point
Function
1 Supply
41 Control pressure
Position Function
L Splitter high
H Splitter low
V300162
1
41
H
L
HL
LH
V300163
1
41
H
L
4
ᓻ 200337
