GEARBOX - PNEUMATIC SECTION
Inspection and adjustment CF65/75/85 series
3-4

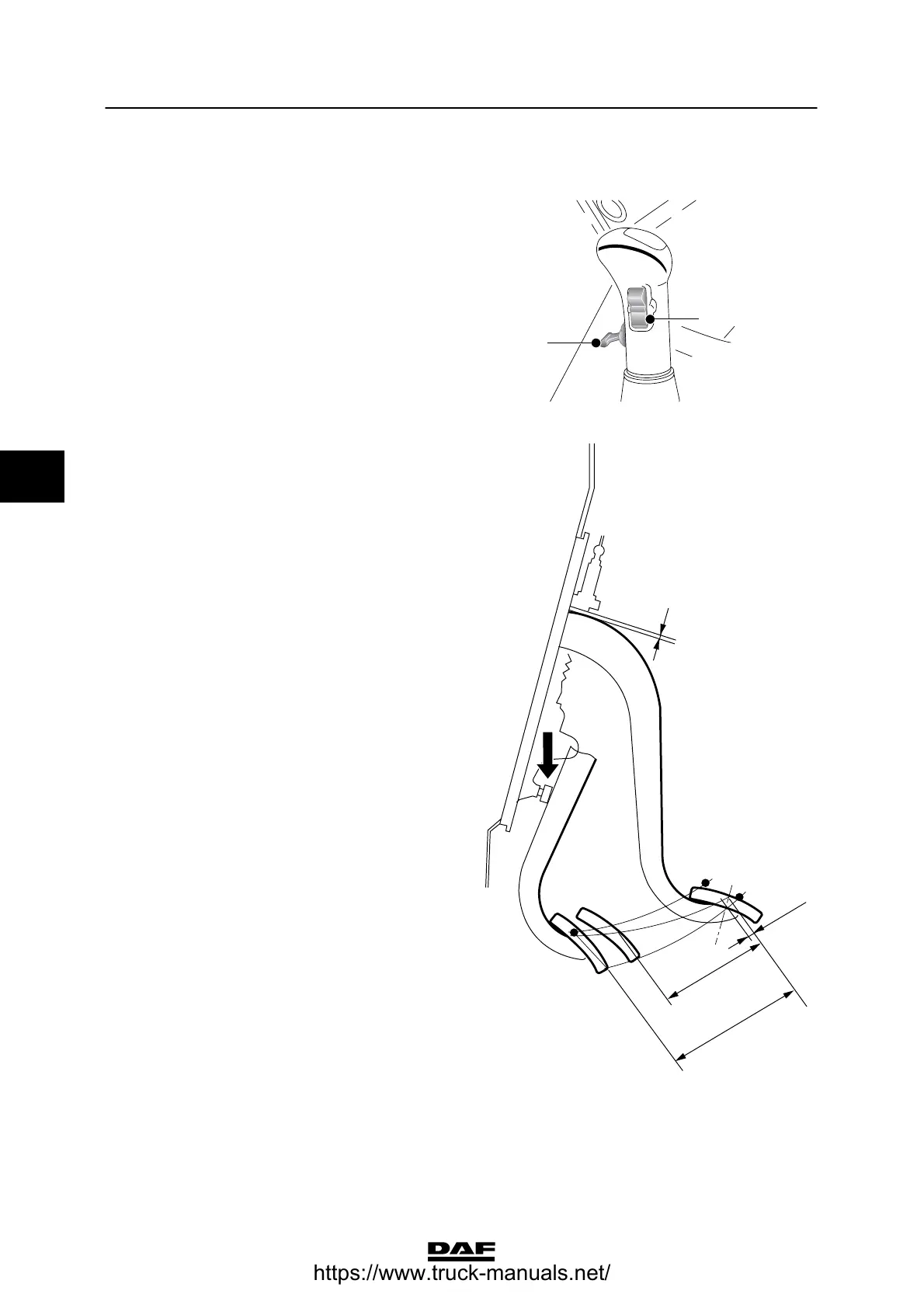

3.3 INSPECTION AND ADJUSTMENT, ZF/EATON GEARBOX GV VALVE
Inspection, ZF gearbox GV valve
1. Ensure that the gearbox is in neutral and
the parking brake is engaged.
2. Start the engine and run it at idling speed.
3. Usetherockerswitch(A ) on the gear lever
to select the other splitter mode without
depressing the clutch pedal.
4. Carefully push the gear lever in the direction
of reverse, until the teeth in the gearbox
start to rattle.
5. Slowly depress the clutch pedal until the
gear can be engaged in regular fashion
(without rattling).
Note:
After the gear has been engaged or the
rattling has stopped, the splitter must switch
to the pre-selected mode (high or low,
depending on the pre-selected position).
Inspection, Eaton gearbox GV valve
1. Ensure that the gearbox is in neutral and
the parking brake is engaged.
2. Start the engine and run it at idling speed.
3. Carefully push the gear lever in the direction
of reverse, until the teeth in the gearbox
start to rattle.
4. Slowly depress the clutch pedal until the
gear can be engaged in regular fashion
(without rattling). This point must be the
same as distance C. See “Technical data”.
B
A
D000096
V300315
C
D
B
1
A
4
ᓻ 200337
