CF65/75/85 series Draining and filling
ZF 8/9/16S-109 GEARBOX
5-1
5. DRAINING AND FILLING
5.1 DRAINING AND FILLING, GEARBOX
To prevent skin injury, avoid
unnecessary contact with the
drained oil.

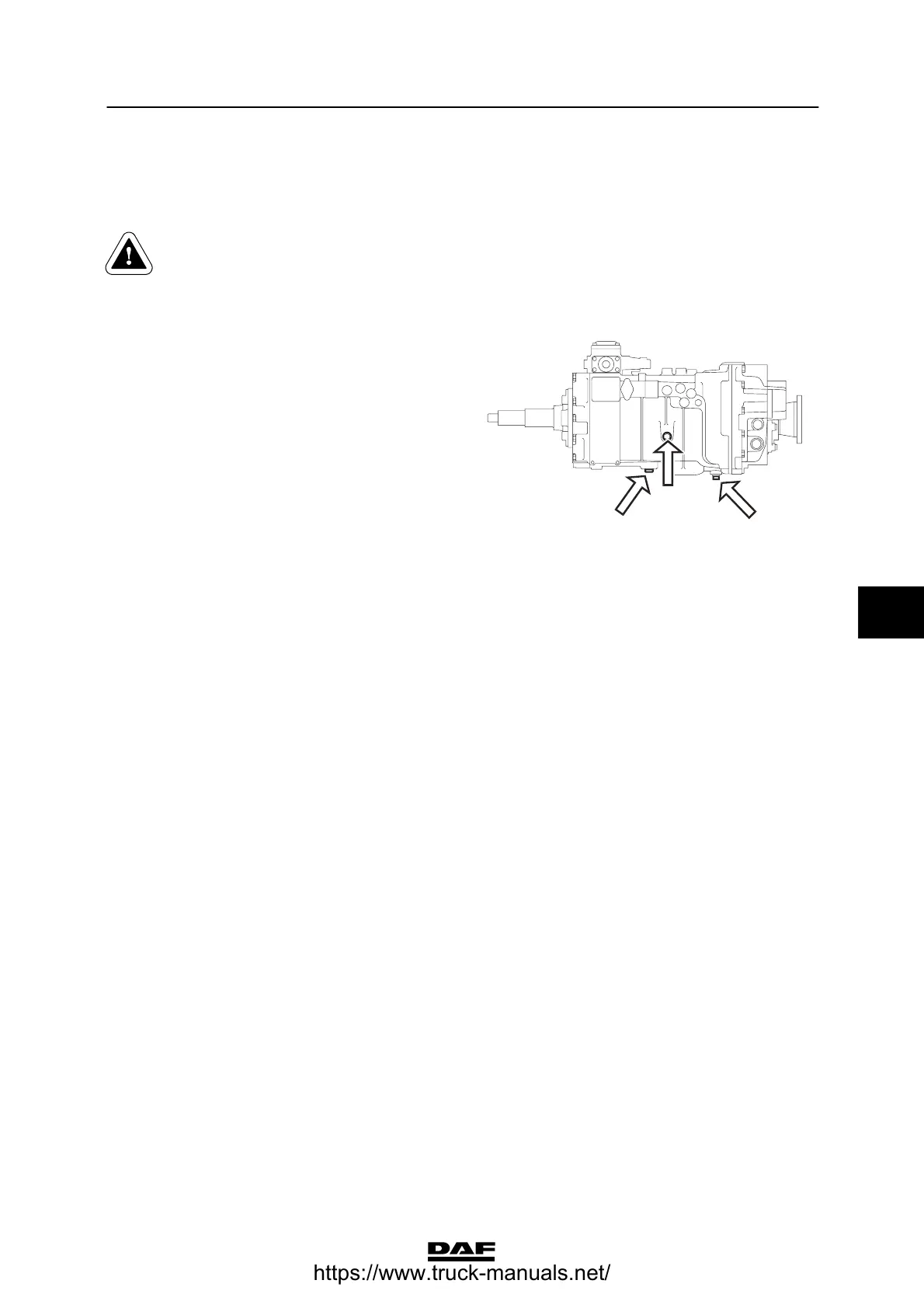

ZF 8/9/16S-109 gearbox
Draining, gearbox
1. Position the vehicle on a level surface.
2. Drain the gearbox at operating temperature.
3. Remove the level check/filler plug (A) and
drain plugs (B) and drain the oil.
Filling, gearbox
1. Clean the drain plugs (B) and tighten them
to the specified torque. See “Technical
data”.
2. Top up oil through the level check/filler
opening (A) until the oil reaches the rim of
the filling opening.
3. Fit the level check/filler plug (A), tightening it
to the specified torque. See “Technical
data”.
M3017
B
B
A
ᓻ 0111
66
