3
CF65/75/85 series Inspection and adjustment
ZF 8/16S-151/181 AND 16S-221 GEARBOXES
3-3

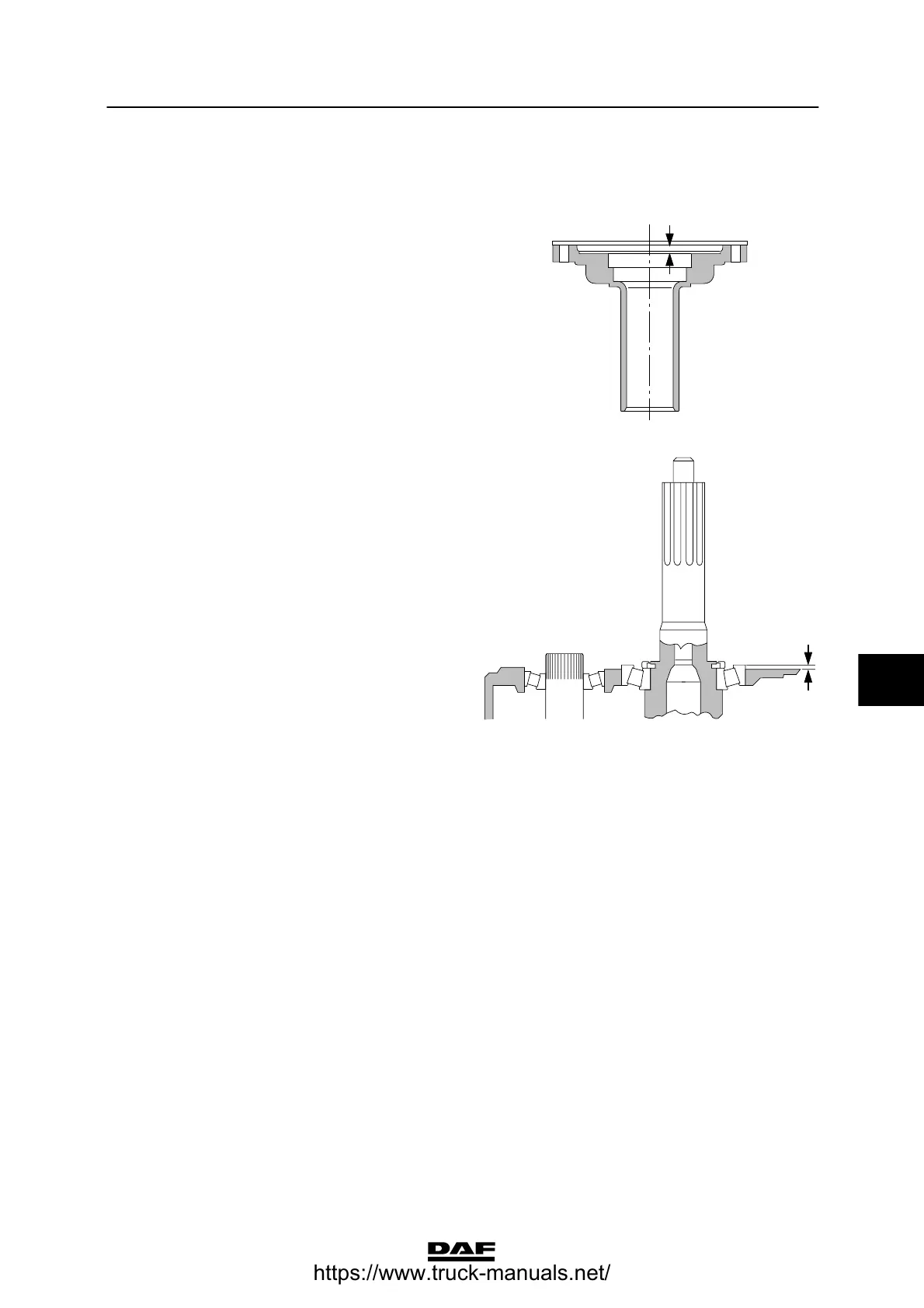

3.2 INSPECTION AND ADJUSTMENT, INPUT SHAFT BEARING AXIAL PLAY
Inspection and adjustment, input shaft
bearing axial play
1. Remove the gearbox front cover.
2. Use a depth gauge to determine the depth
of the recess in the gearbox front cover,
distance B.
B
V300240
3. Install a new gasket in the gearbox housing.
Use a depth gauge to determine the height
the ball bearing protrudes above the
gearbox housing, distance A.
4. Calculate the axial play. The axial play
equals distance B - distance A.
5. Compare the calculated value with the
maximum allowable axial play. See
“Technical data”.
6. If necessary, adjust the axial play by means
of another adjusting ring.
A
V300239
7
ᓻ 200337
