3
CF65/75/85 series Inspection and adjustment
ZF 8/16S-151/181 AND 16S-221 GEARBOXES
3-5

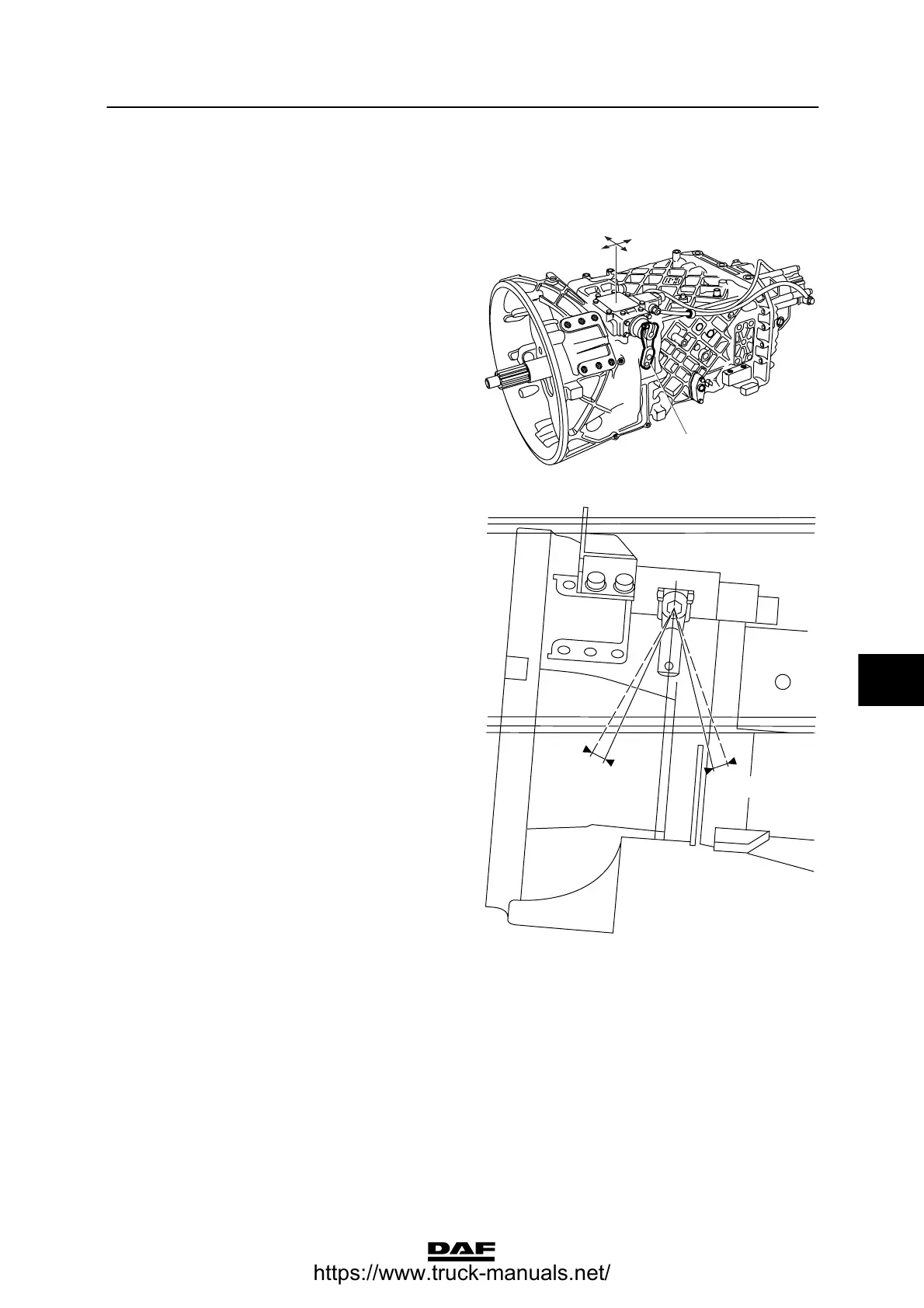

3.4 INSPECTION AND ADJUSTMENT, SELECTOR SHAFT HOUSING ON
GEARBOX
Inspection of selector shaft housing on
gearbox
1. Slacken the shift control from the lever (1).
2. Check in 5th and 6th gear how much further
the lever (1) can be pressed. The transfer
(P) should be identical in both gears.
Adjustment of selector shaft housing on
gearbox
Note:
If the transfer (P) is different, carry out the
following procedure.
1. Slacken the attachment bolts of the selector
housing slightly.
2. Shift the selector housing forwards or
backwards until this transfer is identical in
both gears (direction A-A).
3. Now repeat point 2 for 7
th
and 8
th
gears.
4. If 1
st
or 2
nd
gear cannot be engaged, the
selector housing must be shifted
transversely (direction B-B).
5. Tighten the selector housing attachment
bolts.
6. Check by hand whether the selector shaft
will lightly and easily spring back into its rest
position.
7. Check that the travel is about the same in
all gears.
8. Repeat the entire procedure, if necessary.
Note:
For improved retention a heavier retaining
spring (191N instead of 168N) may be fitted
(DAF No. 1341343).
9. Fit the shift control.
V300257
1
A
A
B
B
P
P
6/8th gear
5/7th gear
V300258
7
ᓻ 200337
