CF65/75/85 series Removal and installation of gearbox
ZF 8/16S-151/181 AND 16S-221 GEARBOXES
4-11
Installing the Servoshift selector shaft oil
seal

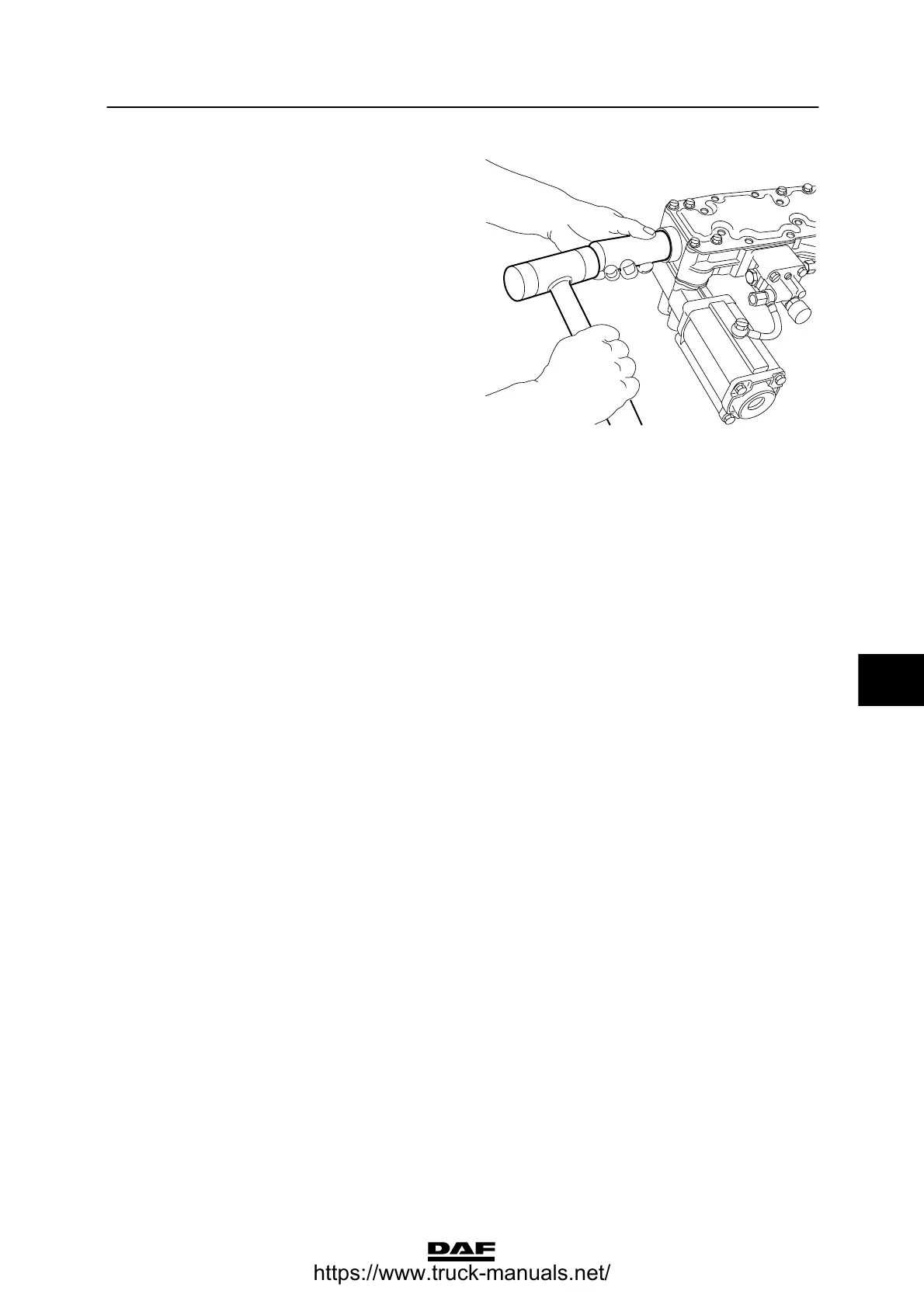

1. Apply a little grease to the inside of the oil
seal.
2. Fit the oil seal into the selector housing
using the special tool (DAF No. 1329450).
3. Install the selector housing with a new
gasket on the gearbox and tighten the
attachment bolts to the specified torque.
See “Technical data”.
4. Fit the dust cap and the selector shaft lever
on the selector shaft. Ensure that the dust
cap is placed without play relative to the
shifting arm.
5. Tighten the selector shaft lever locking bolt.
6. Install the torque rod nut.
7. Fasten the air pipes of the Servoshift unit
and the locking cylinder of the gate
protection with new sealing rings.
Pressurise the air circuit and check the
operation.
V300344
