CF65/75/85 series Draining and filling
ZF 8/16S-151/181 AND 16S-221 GEARBOXES
5-1
5. DRAINING AND FILLING
5.1 DRAINING AND FILLING, GEARBOX
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
ZF 8S/16S-151/181 and 16S -221 gearboxes
Draining the gearbox
1. Position the vehicle on a level surface.
2. Drain the gearbox at operating temperature.

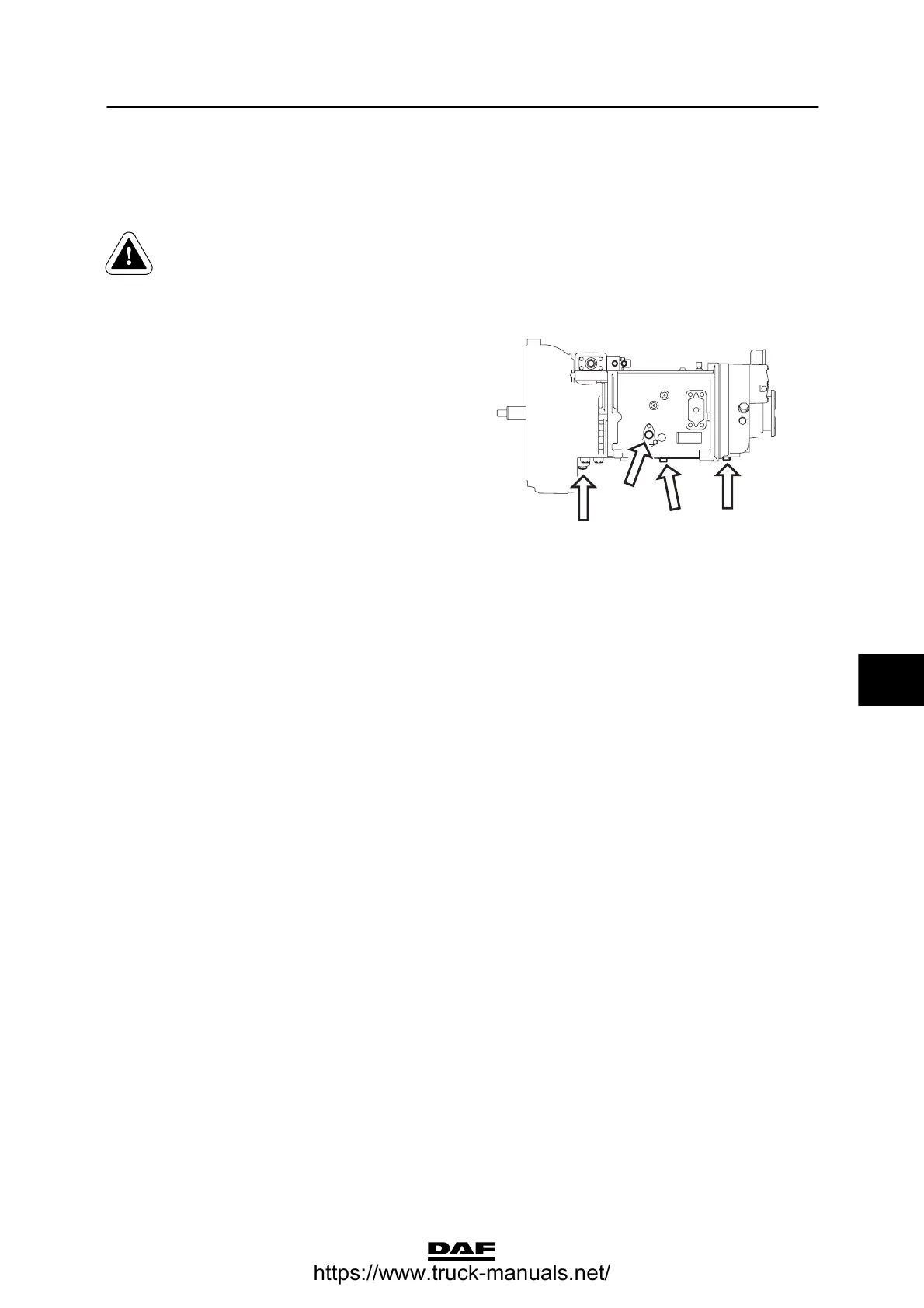

3. Remove drain plugs B, C and D and the
level check/filler plug (A) and drain the oil.
Filling the gearbox
1. Clean drain plugs B, C and D and tighten
them to the specified torque. See “Technical
data”.
2. Fill the oil through the level check/filler
opening (A) until the oil reaches the rim of
the filling opening.
3. Fit the level check/filler plug (A), tightening it
to the specified torque. See “Technical
data”.
M3023
D
A
B
C
7
ᓻ 200337
