3
CF65/75/85 series General
EATON FS/6309A GEARBOX
1-1
1. GENERAL
Gearbox type
Each gearbox has a type plate attached to it,
indicating the type of gearbox. This data can
also be found on the identity card for the vehicle
concerned.

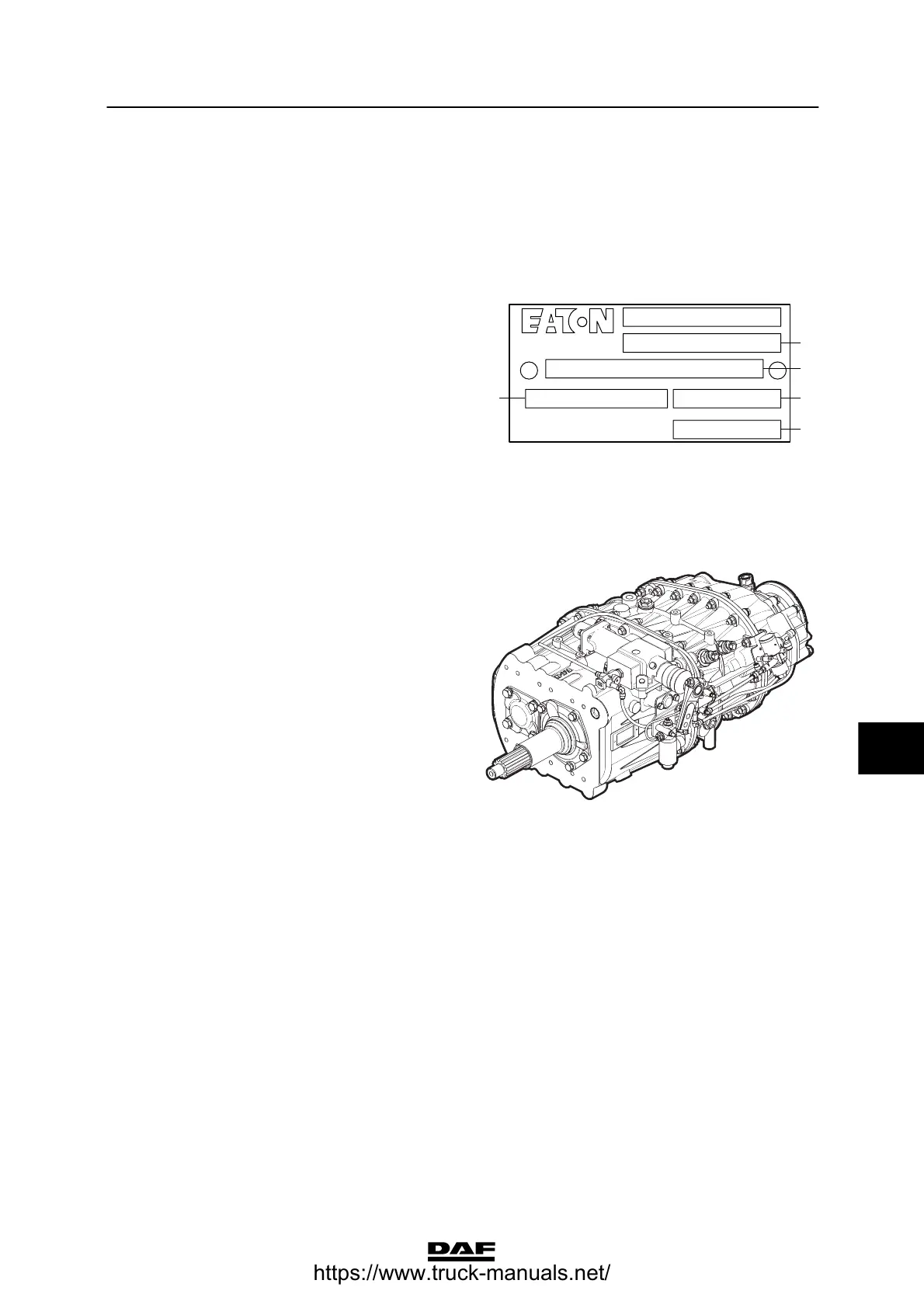

Eaton gearbox type-plate
1. Type of gearbox
2. Specification no. Eaton
3. DAF article Eaton code
4. Serial no. Eaton
5. Production date code
The Eaton specification number is unique to
each customer and gives detailed information on
the development level of the gearbox. The
number must be quoted whenever replacement
parts are ordered.
V300378
2
3
41
5
1.1 SYSTEM DESCRIPTION
The gearbox consists of a main gearbox with
four synchronised forward gears, a
non-synchronised crawler gear, and one
non-synchronised reverse gear. Between the
main gearbox and the output shaft, there is a set
of planetary range gears with pneumatic
synchronisation.
In the low range (planetary system engaged),
the crawler gear and gears 1, 2, 3 and 4 can be
engaged.
In the high range (planetary system
disengaged), gears 5, 6, 7 and 8 can be
engaged.
The switching system is in a “single-H” pattern.
Use of the “single-H” system means that the low
or high range must be selected by means of a
button on the ball of the gear lever prior to
engaging gear. The group is changed as soon
as the selector shaft passes through the neutral
position.
V300438
8
ᓻ 0111
