CF65/75/85 series Draining and filling
EATON FS/6309A GEARBOX
4-1
4. DRAINING AND FILLING
4.1 DRAINING AND FILLING, GEARBOX
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
Draining, gearbox
1. Place the vehicle on a level surface.
Note:
Drain the gearbox at operating temperature.
2. Remove the combined drain plug/oil strainer
(4) and level check/filler plug (1) and drain
the oil.
3. Clean the oil strainer (4) in a suitable
solvent and dry the oil strainer thoroughly.
Filling, gearbox
1. Check and replace the O-ring (3) and the
sealing ring (2), if necessary.
2. Tighten the combined drain plug/oil strainer
to the specified torque. See “Technical
data”.
3. Fill the oil through level check/filler opening
(1) until the oil reaches the rim of the level
check/filler opening.
4. Fit the level check/filler plug, tightening it to
the specified torque. See “Technical data”.

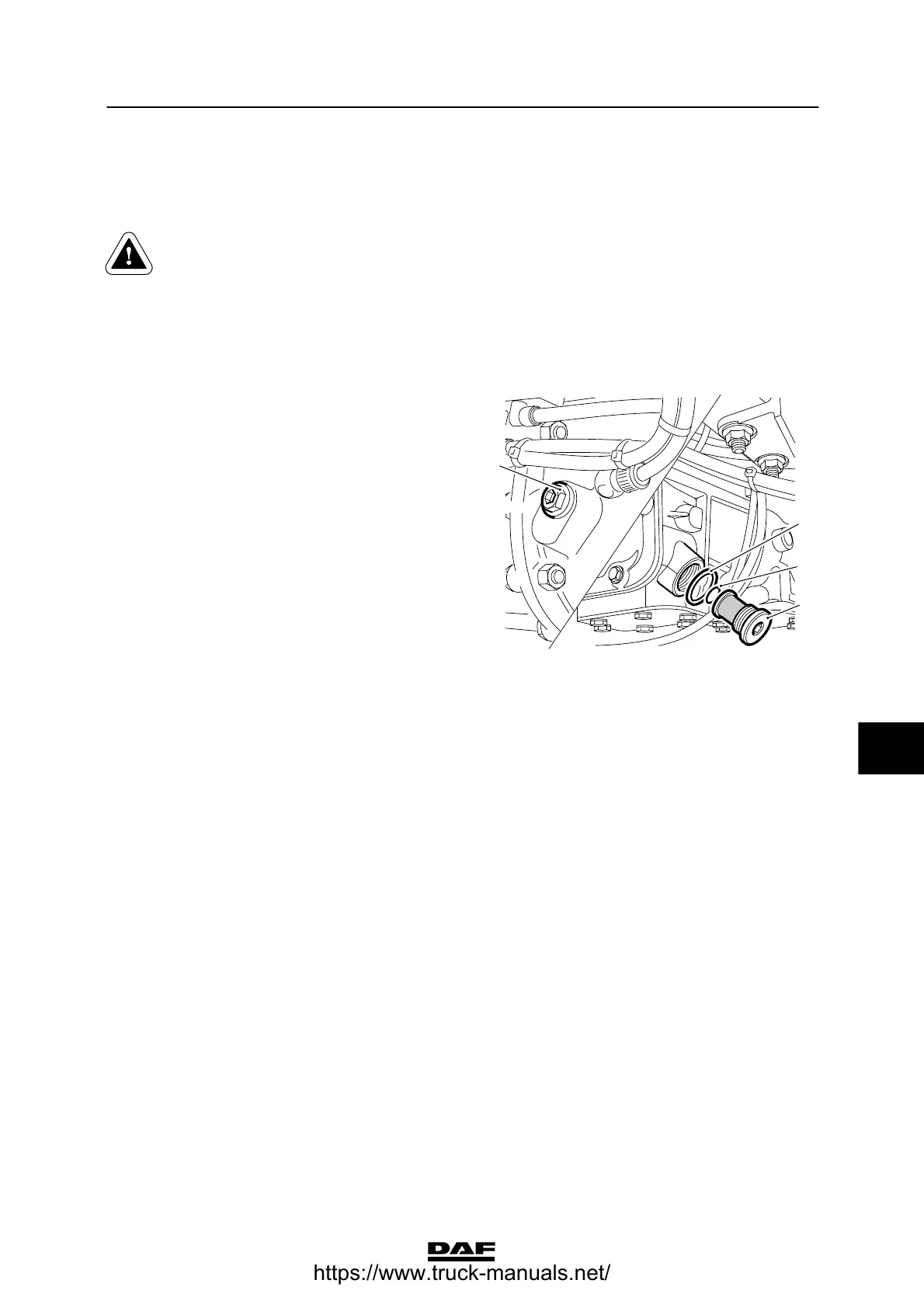

1
2
3
4
V3 00 376
8
ᓻ 0111
