PROP SHAFTS
Inspection and adjustment CF65/75/85 series
2-2
4. Now check the slide coupling radial play
manually.
If radial play is found in the slide
coupling, first make sure that the play
does not come from the universal joints.
In order to ensure that the play noticed
lies within the maximum permissible
tolerance, remove and check the prop
shaft.

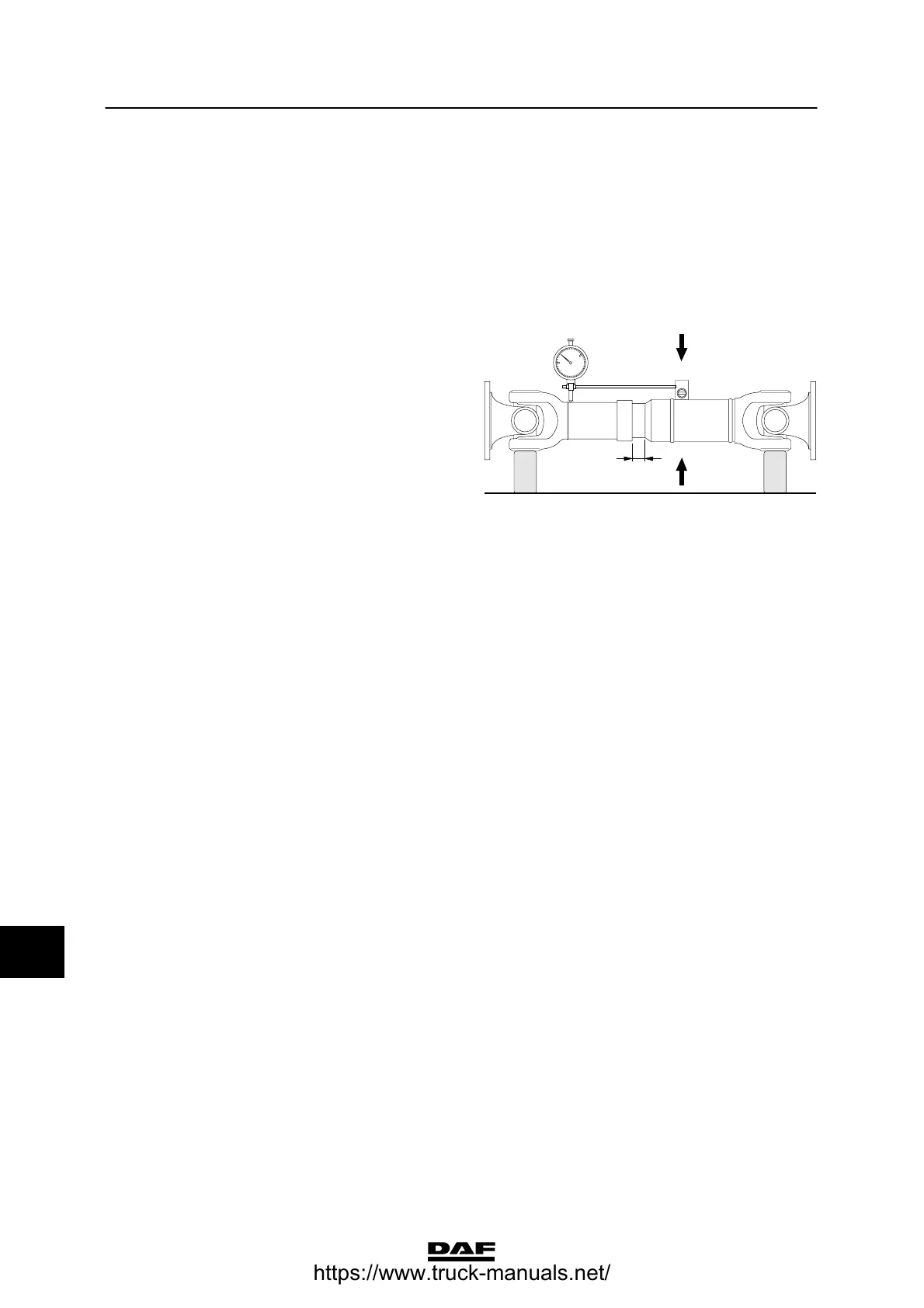

5. Place the removed prop shaft on a flat
working bench and support the shaft at
positions A and B.
6. Push the slide coupling around 45 mm
outwards.
7. Position the universal measuring tool on the
fitted prop shaft at position C.
8. Place the dial gauge at position D on the
prop shaft (next to the welding joint).
9. Move the prop shaft up in the centre of
gravity (see arrows) and measure the radial
play of the slide coupling.
For the maximum permissible play, see
“Technical data”.
45
AB
C
D
V300444
