CF65/75/85 series General
ZF INTARDER
2-3

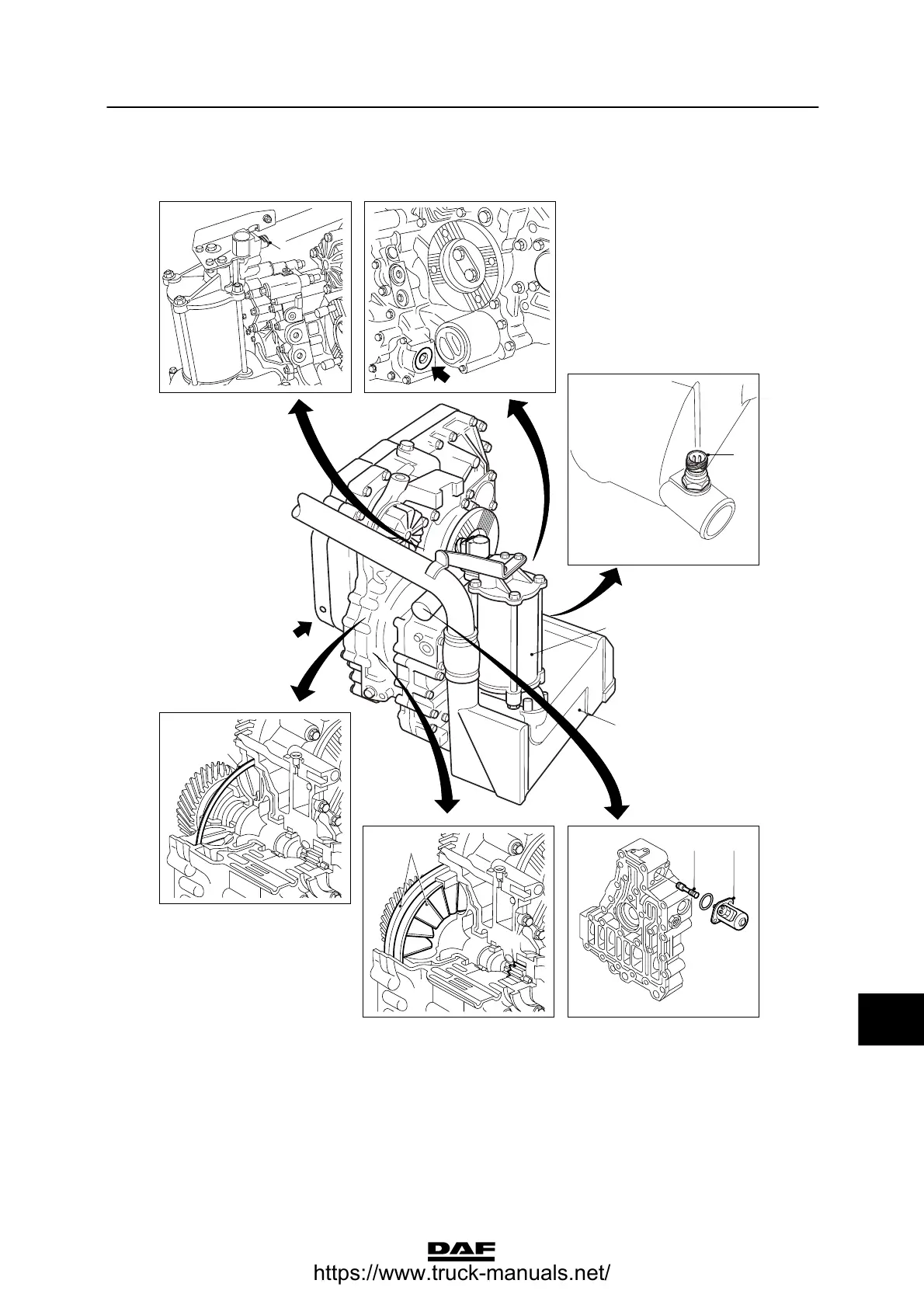

2.3 LOCATION OF MAIN COMPONENTS
3
7
2
9
4
10
81
5
6
V300490
11
1. Intarder proportional valve control plunger
2. Selector valve spring sealing plug
3. Accumulator
4. Heat exchanger
5. Oil pump gear wheels
6. Stator and rotor
7. Air supply solenoid valve
8. Proportional valve
9. Attachment to gearbox
10. Coolant temperature sensor
11. Freewheeling torque reduction ring segment
