ZF INTARDER
Removal and installation CF65/75/85 series
4-4
4.3 REMOVAL AND INSTALLATION, ACCUMULATOR
To prevent skin injury, avoid
unnecessary contact with the
drained oil.
In the course of the following
operations, oil and water will
escape from the heat exchanger.
Collect the oil and water.
To prevent skin injury, avoid
unnecessary contact with the
drained oil.

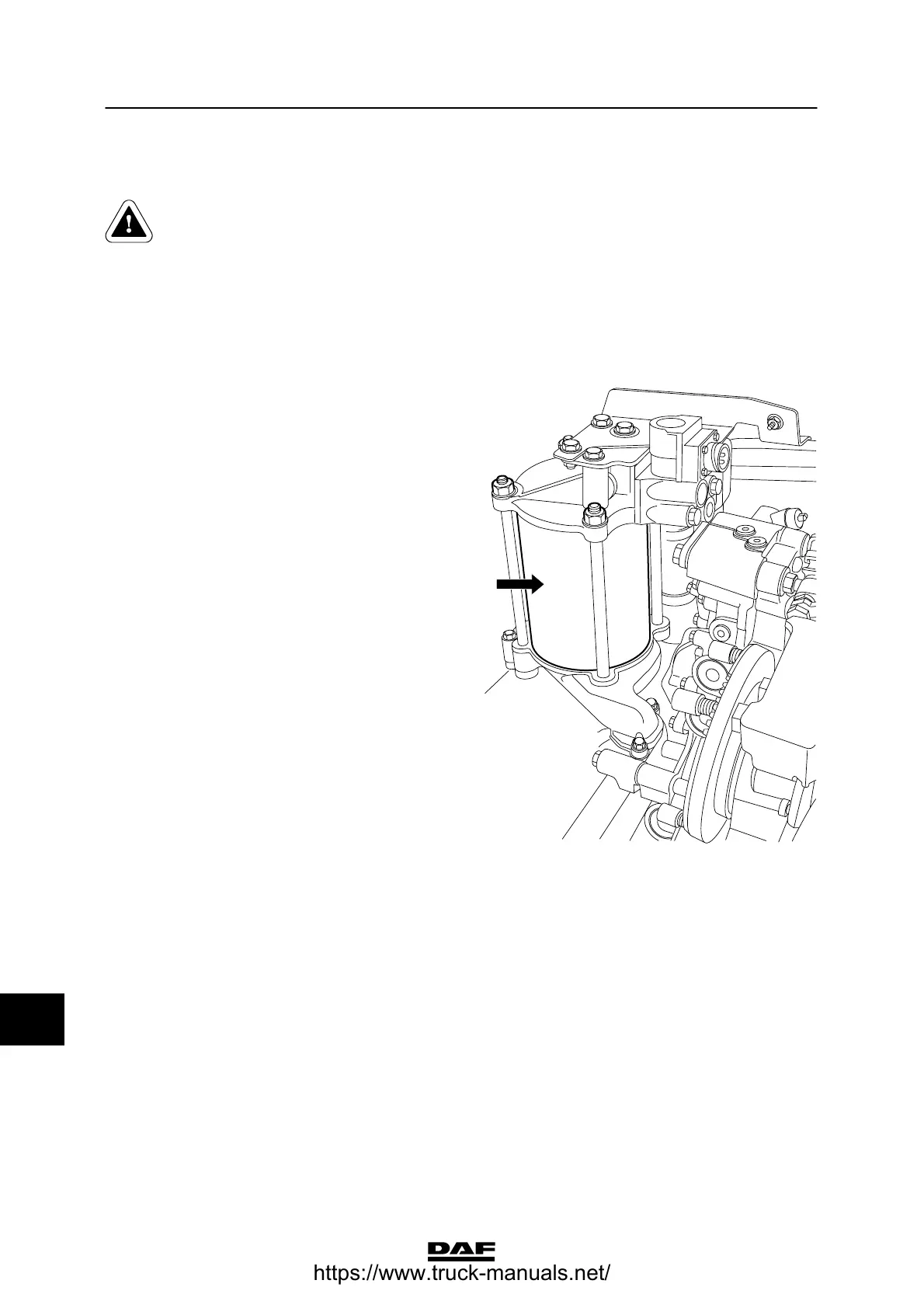

Removing the accumulator
1. Drain as much coolant and oil as necessary.
2. Disconnect the water hose from the
left-hand side of the heat exchanger.
3. Remove the air pipe from the solenoid
valve.
4. Remove the electrical wiring from the
solenoid valve.
5. Remove the attachment bolt from the water
pipe bracket and the attachment bolts on
top of the accumulator bracket.
6. Take out the bolts attaching the accumulator
to the heat exchanger and remove the
accumulator.
Installing the accumulator
1. Fit new O-rings on the accumulator bracket
and install the accumulator on the heat
exchanger.
2. Install the accumulator bracket attachment
bolts at the top.
3. Fit the water pipe bracket attachment bolt.
4. Install the solenoid valve.
5. Connect the air pipe to the solenoid valve.
6. Connect the electrical wiring to the solenoid
valve.
7. Install the water hose at the left-hand side.
8. Fill the cooling system.
9. Fill the gearbox with oil. Check the oil level
in the gearbox. See “Inspection and
adjustment”.
