Disassembly and assembly CF65/75/85 series
5-2
Mounting drive sprockets in flywheel
housing
1. Check that both drive sprocket assemblies
have correct bearing play.
2. Place the O-ring on the shaft.
3. Press an inner bearing race (3) onto the
sprocket shaft (2) (oil the shaft).
Note:
Take proper note of the original mounting
direction of the drive sprockets in the
flywheel housing.

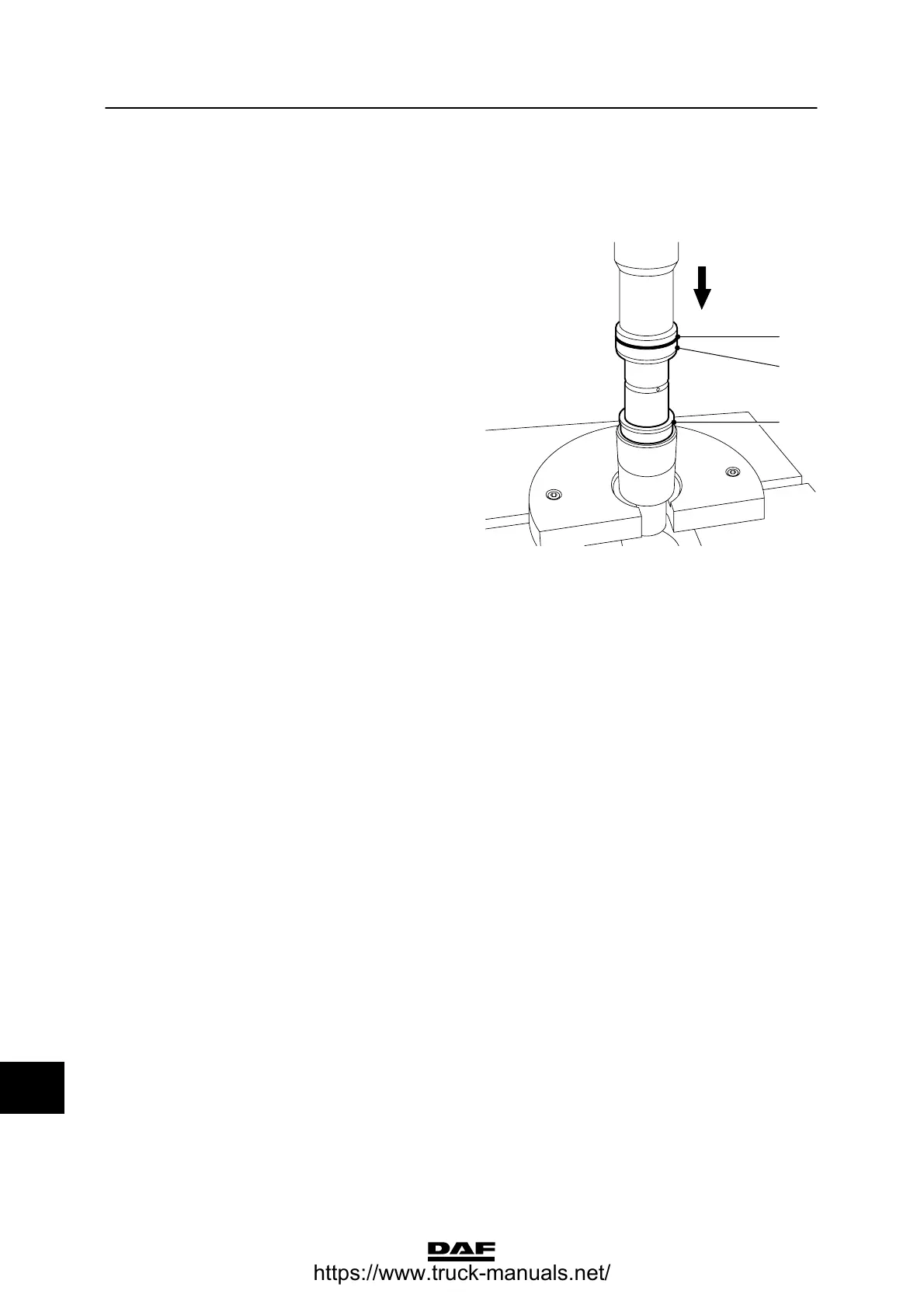

4. Place the flywheel housing under a hand
press and put the drive sprocket assembly
in the lower part of the flywheel housing.
5. Press the shaft through the flywheel
housing into the drive sprocket until the
shaft collar abuts the flywheel housing.
6. Mount the sealing plate on the rear of the
flywheel housing.
7. Mount the O-ring on the attachment bolt, oil
it lightly and tighten the bolt to the specified
torque. See “Technical data”.
8. Repeat this for the top drive
sprocket assembly.
Note!
The attachment bolt and O-ring are
mounted together with the flywheel housing
against the engine block.
