CF65/75/85 series General
AS TRONIC GEARBOX
1-3
V300662
852
1 3 4 10 9 6 7
AB C
3 2 1 R

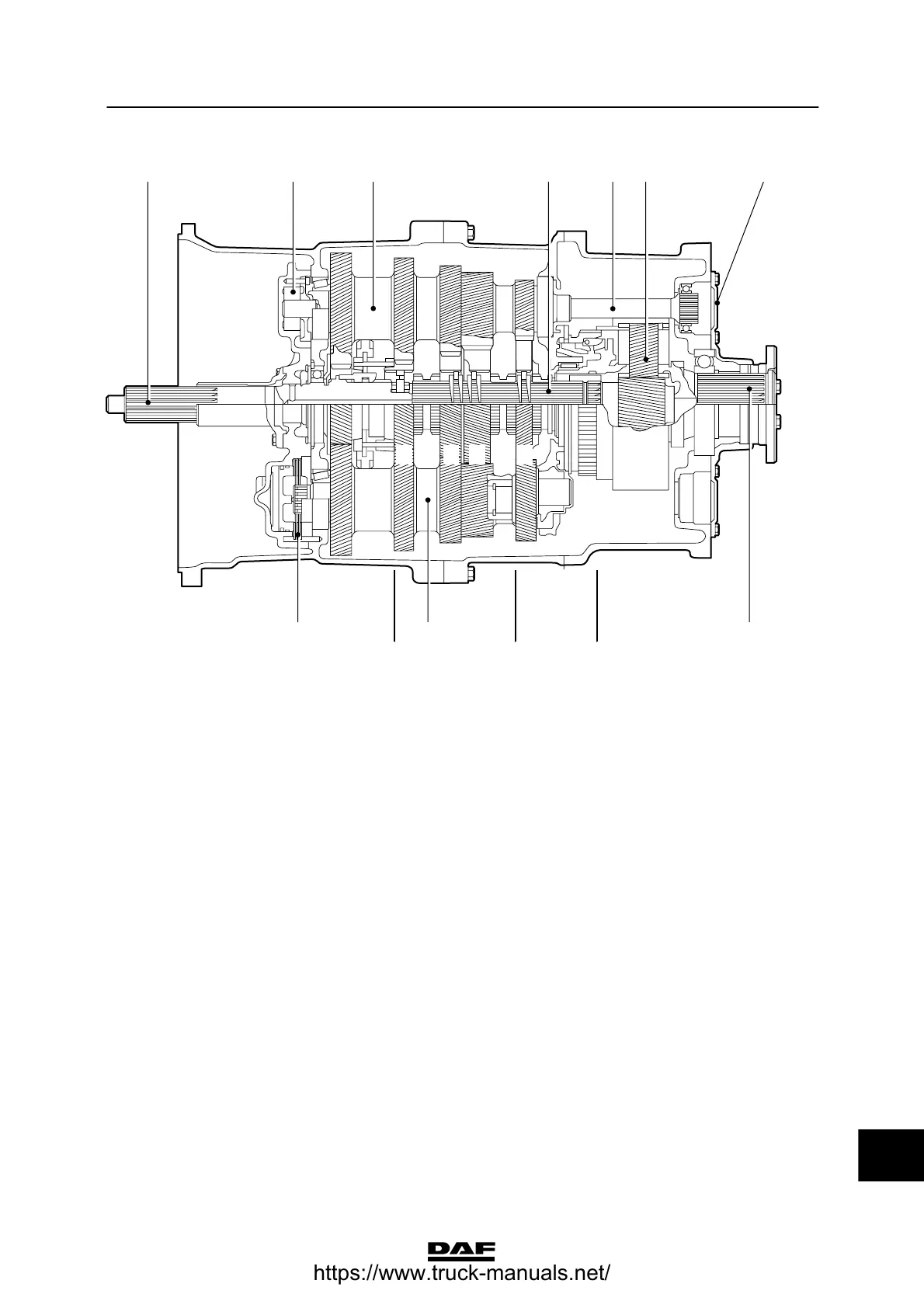

A. Integrated front-mounted range box or
splitter range (two gears)
B. Main box with three or four forward gears
and one reverse gear
C. Rear-mounted range box or range group
(two gears)
1. Input shaft
2. Transmission brake
3. Lubricating oil pump
4. Auxiliary shaft
5. Auxiliary shaft
6. Planetary gear wheel set for rear-mounted
range box
7. PTO connection point
8. Output shaft
9. PTO prop shaft
10. Main box
Two auxiliary shafts provide a favourable
distribution of the input engine torque and
reduce the mechanical load on the gear wheels
and bearings. This construction leads to a
compact, low-weight gearbox.
