3
AS TRONIC GEARBOX
Inspection and adjustment CF65/75/85 series
3-2
3.2 INSPECTION AND ADJUSTMENT, GEARBOX OUTPUT SHAFT BEARING
AXIAL PLAY
1. Remove the drive flange.
2. Remove the rear gearbox bearing cover.
3. Clean the sealing surfaces of the bearing
cover and the gearbox.

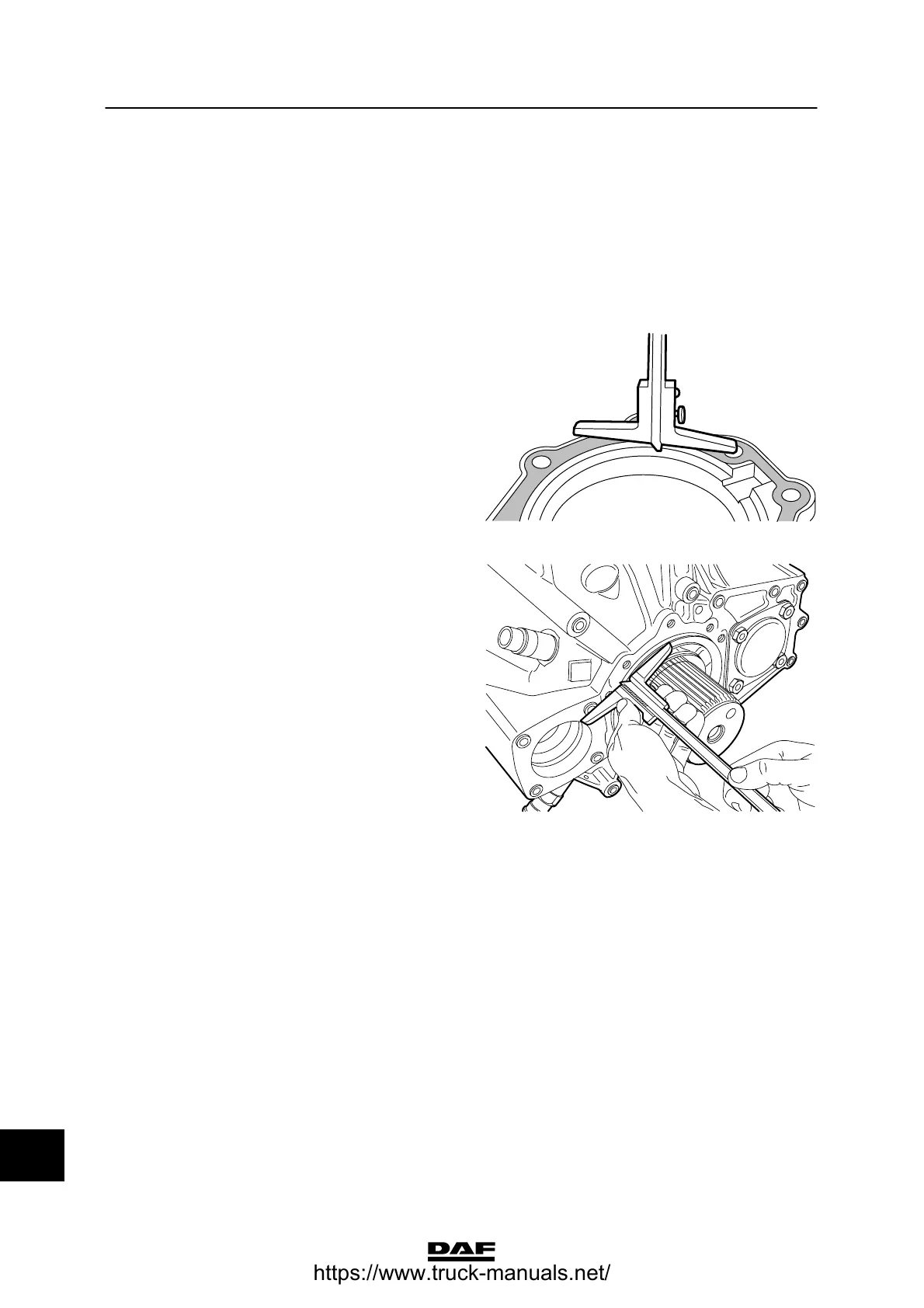

4. Use a depth gauge to determine the depth
of the bearing cover recess, distance A.
A
V300227
5. Use a depth gauge to determine the height
the ball bearing protrudes above the
gearbox housing, distance B.
6. Calculate the axial play. The axial play
equals distance A - distance B.
7. Compare the calculated value with the
maximum allowable axial play. See
“Technical data”.
8. If necessary, adjust the axial play by means
of another adjusting ring.
0 1 2 3 4 5 6 7 8
9 10
5 6 7 8 9 10 11 12 13 14 15
V300668
14
ᓻ 200337
