CF65/75/85 series Pneumatic section of gearbox
TECHNICAL DATA
3-1
3. PNEUMATIC SECTION OF GEARBOX
3.1 GENERAL
If the vehicle is modified and the
configuration changed, the
electronic unit may have to be
programmed.
Note:
If the vehicle’s drive configuration is changed,
this must always be stated. The gate protection
and range-change protection frequencies
programmed into the electronic unit are related
to the drive configuration.

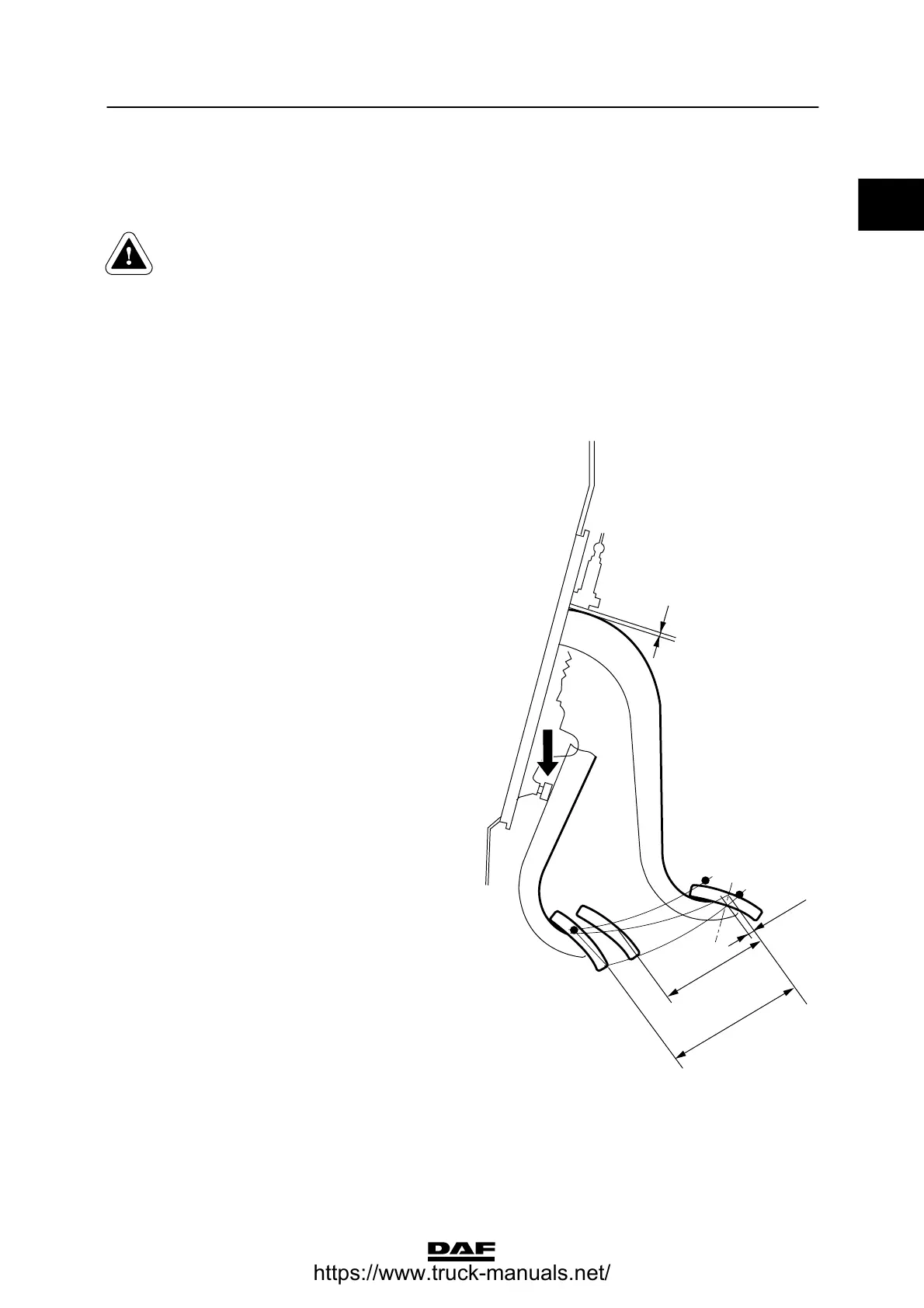

GV VALVE
GV valve begins to
open (C)
123  2mm
Total clutch pedal
travel (D)
154  2mm
NEUTRAL POSITION VALVE
Situation with separate air distribution block:
2 x 3/2-way valve
Servicepressure 6.5to10bar
Pipe connection M14 x 1.5
Situation with integrated air distribution
block:
3/2-way valve
Servicepressure 6.5to10bar
Pipe connection Not applicable
V300315
C
D
B
1
A
ᓻ 200337
