3
ZF 8/9/16S-109 GEARBOX
General CF65/75/85 series
1-2

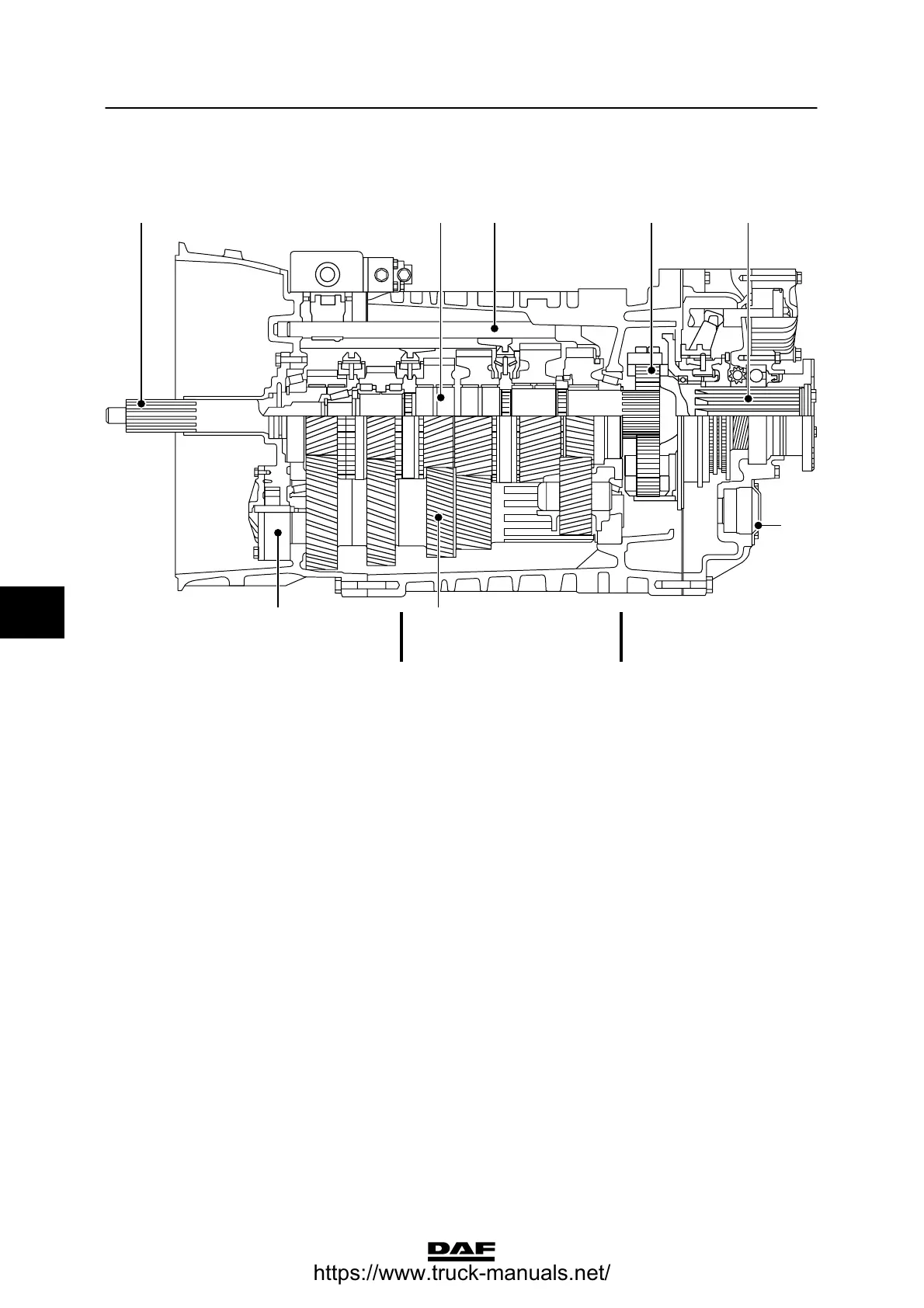

1.1 SYSTEM DESCRIPTION, 16S GEARBOXES
W303056
1456
7
28
3
ABC
A. Integrated auxiliary gearbox or splitter
gearbox (two gears)
B. Main gearbox with four forward gears and
one reverse gear
C. Auxiliary gearbox or range gearbox (two
gears)
1. Input shaft
2. Lubricating oil pump
3. Main shaft
4. Selector shafts with shifting forks
5. Planetary gears for range group
6. Output shaft
7. PTO connection point
8. Auxiliary shaft
Example of type designation 16 S 109
16 = 16 gears
S = all forward gears synchronised
109 = mark for the input engine torque
6
