CF65/75/85 series ZF 8/16S-151/181 and 16S-221 gearboxes
TECHNICAL DATA
6-1
6. ZF 8/16S-151/181 AND 16S-221 GEARBOXES
6.1 GENERAL
Gearbox type
Each gearbox has a type-plate attached to it,
indicating the type of gearbox. This data is also
stated on the identity card of the relevant
vehicle.

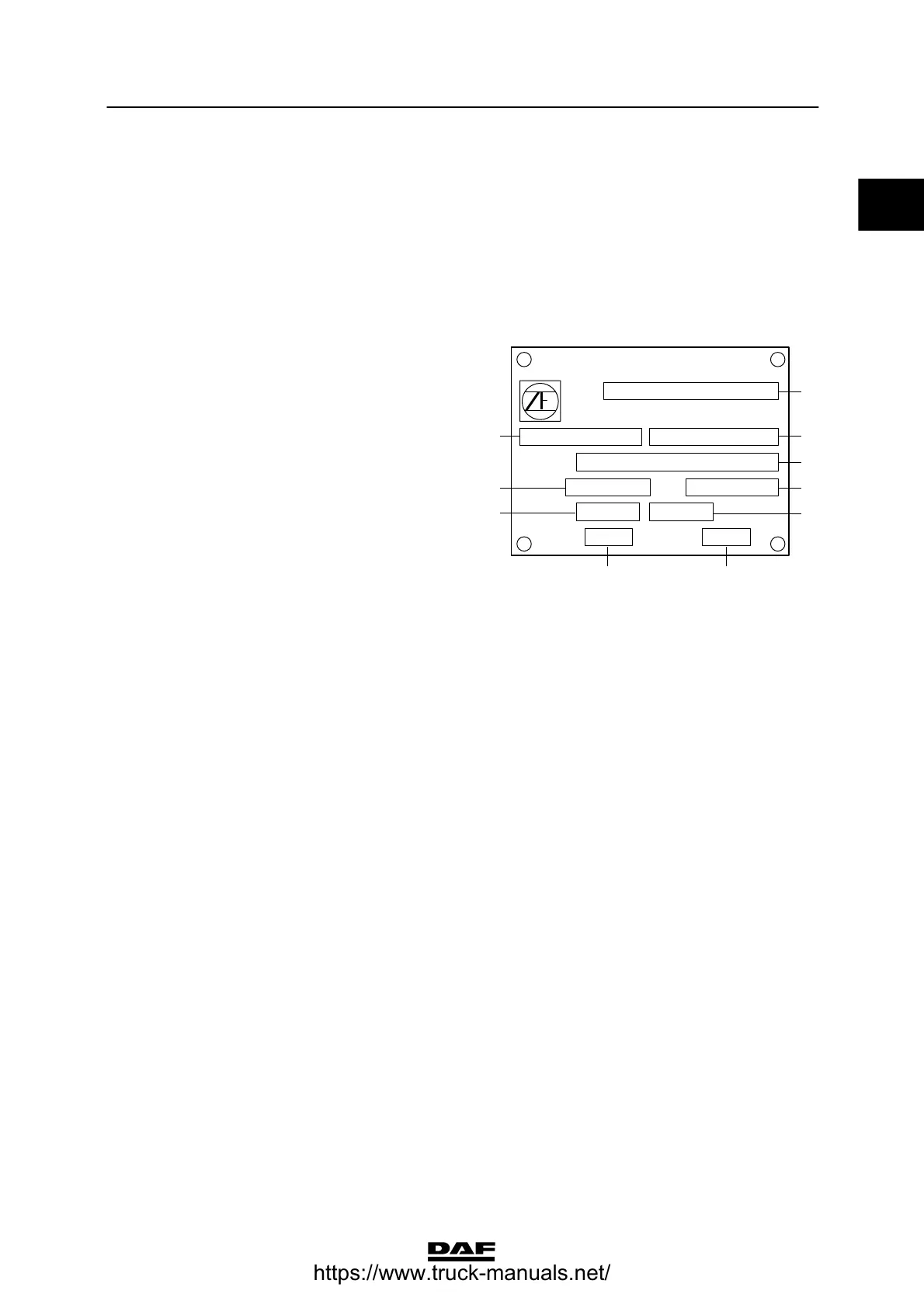

ZF gearbox type-plate
1. Type of gearbox
2. Series no. (ZF)
3. Parts list (ZF)
4. Specification no.
5. Pulse generator ratio
6. Gearbox ratio
7. Engine speed using PTO
8. PTO speed
9. Gearbox oil capacity
10. Oil specification
V300049
1
2
4
5
3
8
6
7
10
9
Output shaft bearing axial play
Output shaft bearing axial play 0.00 - 0.10 mm
Bearing axial play, main and input shafts
Bearing axial play, main and input shafts 0.00 - 0.10 mm
Auxiliary shaft bearing axial play
Auxiliary shaft bearing axial play 0.00 - 0.10 mm
Retaining element
Standard spring force 168 N
Heavy-duty spring force 191 N
ᓻ 200337
