3
TECHNICAL DATA
Prop shafts CF65/75/85 series
10-2

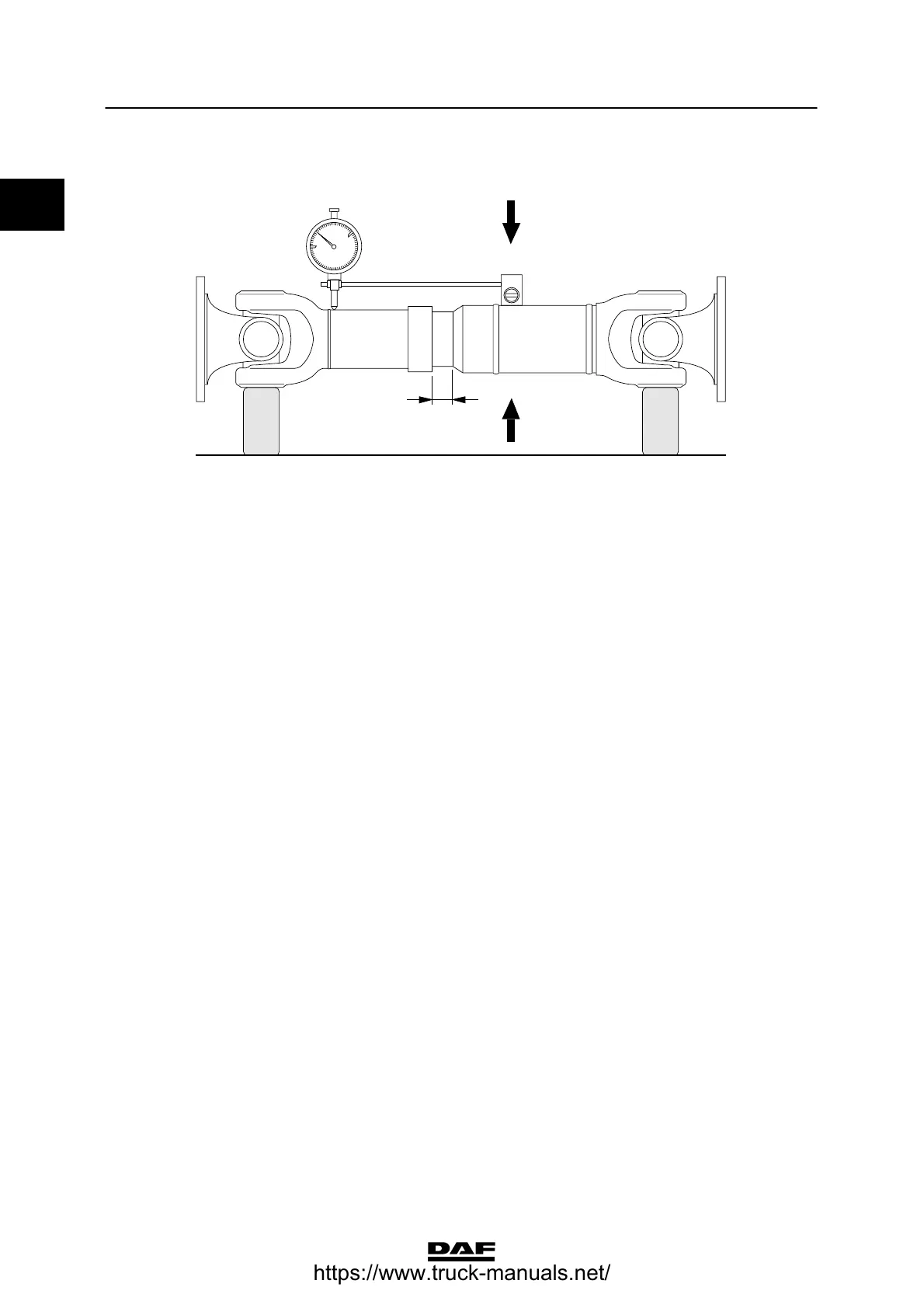

Maximum permissible axial play of slide joint 0.25 mm
45
AB
C
D
V300444
10.2 TIGHTENING TORQUES
The tightening torques stated in this section are
different from the standard tightening torques
included in the overview of standard tightening
torques.
Any other threaded connections that are
not specified must therefore be tightened to the
torque stated in the overview of
standard tightening torques.
When attachment bolts and nuts are to be
replaced, it is important that they are of exactly
the same length and property class as the ones
removed unless stated otherwise.
Attachment bolts, drive flanges
M12 - 10.9 110 Nm
M14 - 10.9 170 Nm
Centre bearing central nut
M24 x 1.5 250 Nm
M40 x 1.5 350 Nm
M55 x 1.5 380 Nm
Centre bearing attachment bolts 170 Nm
(1)
(1) Loctite 243
0
á“» 200337
