3
AS TRONIC GEARBOX
Description of components CF65/75/85 series
2-4

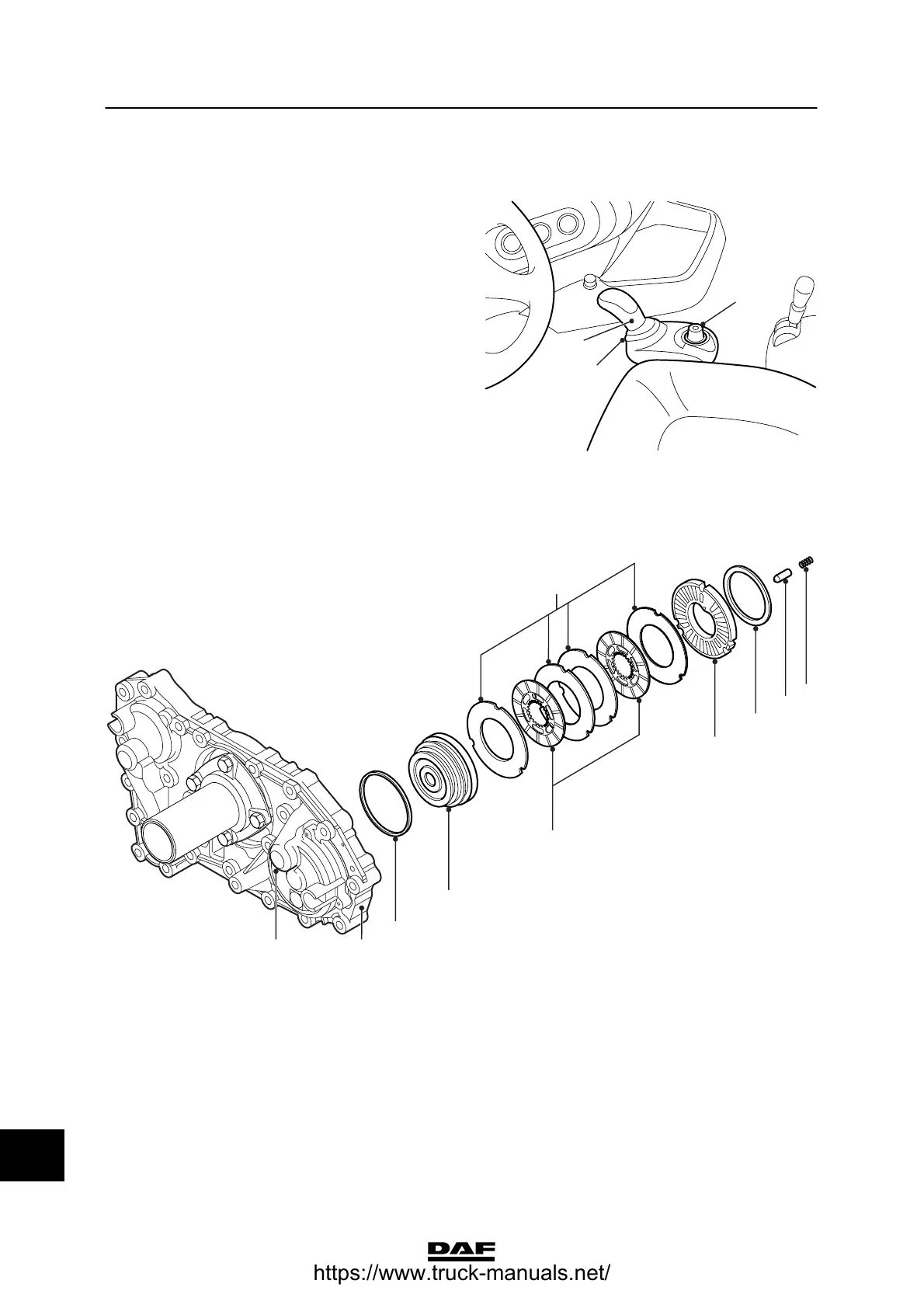

2.2 OPERATING UNIT
The operating unit (2) is not mechanically
connected to the gearbox. Operation is effected
via the selector switch (3) and the gear lever (1).
The operating unit contains various
position sensors that register the position of the
gear lever.
In this way the information relating to the correct
gear is transmitted to the gearbox modulator via
the internal electronics of the operating unit and
the cab wiring.
3
2
1
V300726
2.3 TRANSMISSION BRAKE
V300708
1
4
3
6
7
8
9
10
5
2
The transmission brake is located in the front
gearbox cover (2), which is situated in the clutch
housing. The transmission brake consists of a
piston (4), multiple lamella clutch (5, 6) and the
clutch cover (7).
14
ᓻ 200337
