1.2 -- THREE VIEW DRAWING

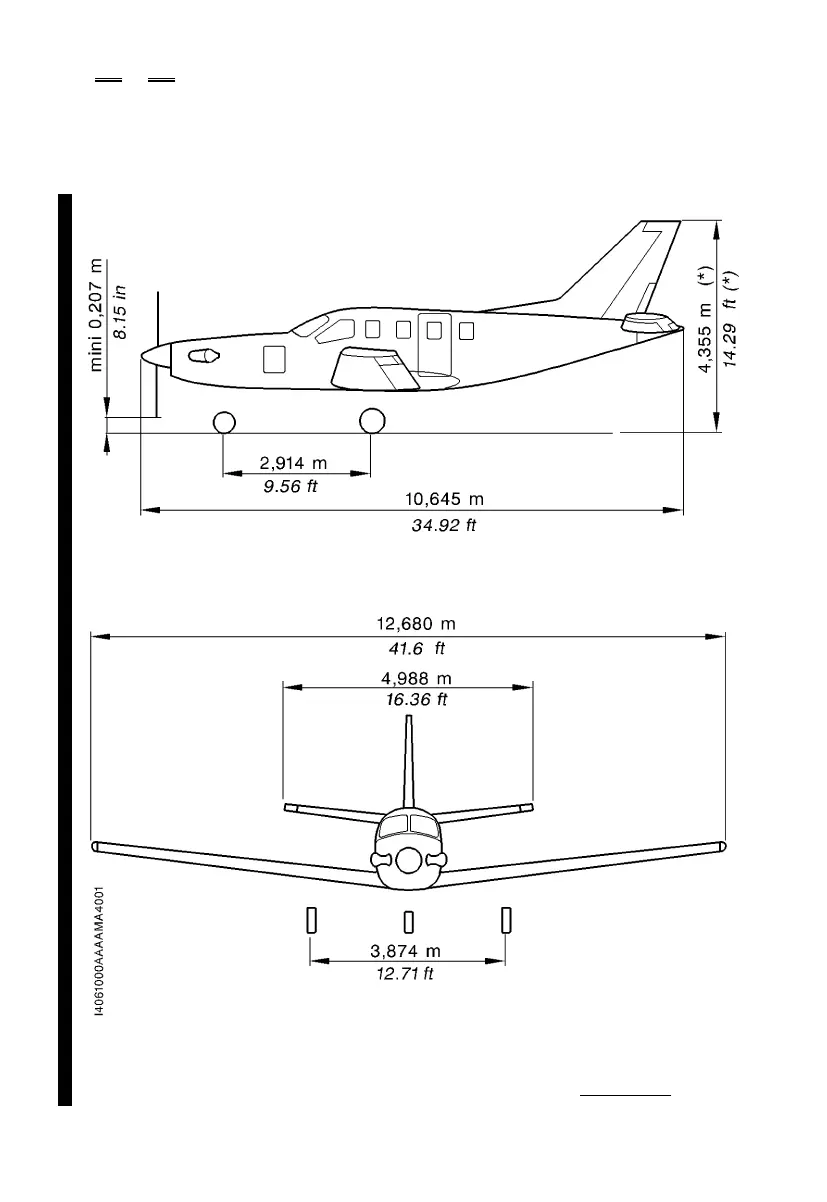

Figure 1.2.1 (1 / 2) -- THREE VIEW DRAWING -- TBM700A
* Airplane on line of flight with extended FWD shock--absorber
