User’s Manual
3
2 Installation
Connecting the Cable 2.1

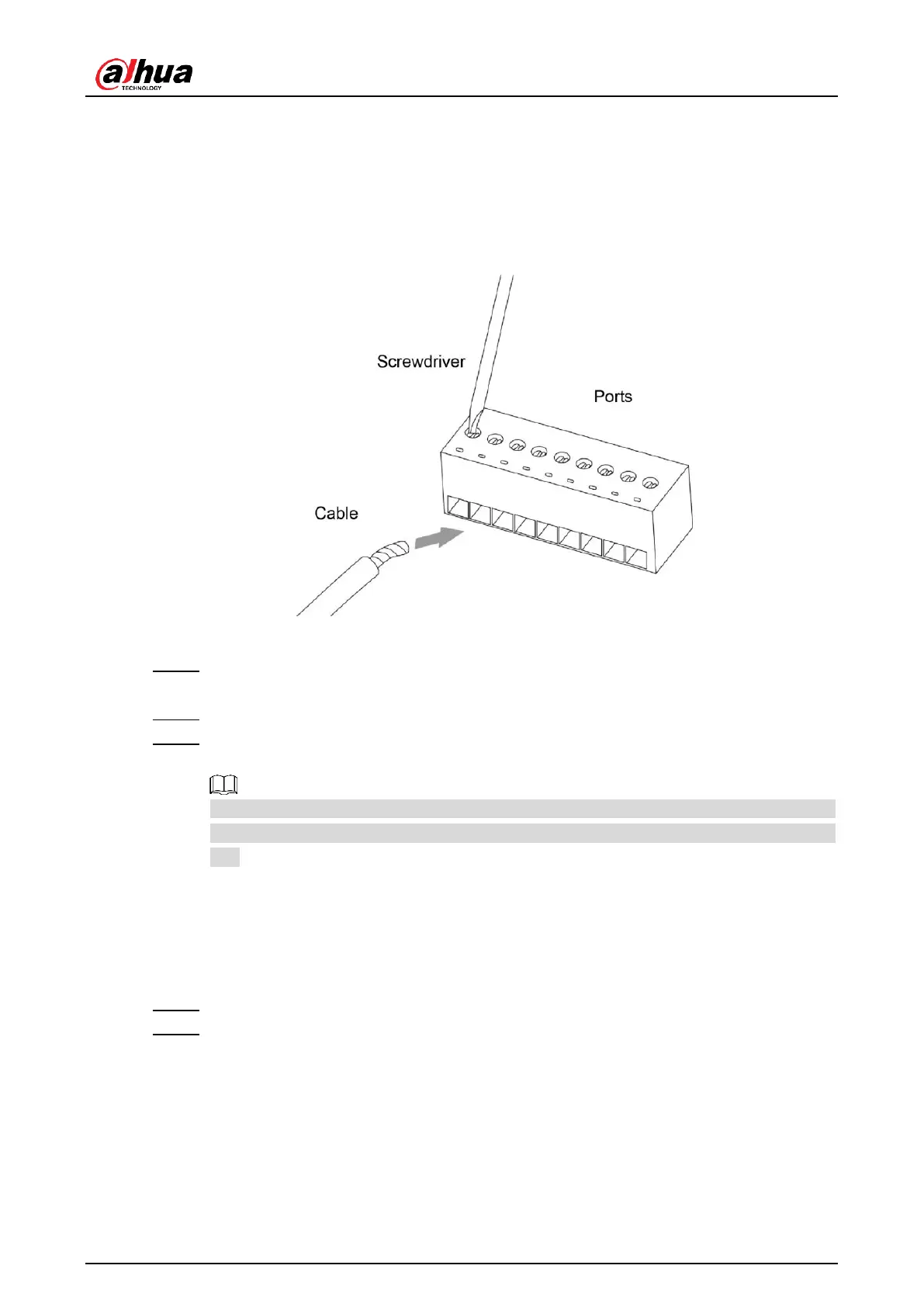

Connecting the cable Figure 2-1
Align the screwdriver with the screw in the cable slot, and turn the screwdriver Step 1
counterclockwise to loosen the screw.
Insert the cable into the corresponding slot. Step 2
Align the screw with the slot, and then turn the screwdriver clockwise to tighten the Step 3
screw.
To remove the cable, align the screwdriver with the screw in the cable slot, turn the
screwdriver counterclockwise to loosen the screw, and then pull the cable out of the
slot.
After connecting the cable, see "1.3 Ports" to insert the cable into the corresponding
port.
Installing the Kit 2.2
Confirm the position of holes on the mounting surface. Step 1
Use M8×80 expansion anchors to fix the base to the mounting surface. Step 2
There are four holes in the base, and every two holes are 99 mm apart.
