Si121174 Removal of Outer Panels
Removal Procedure 3
3

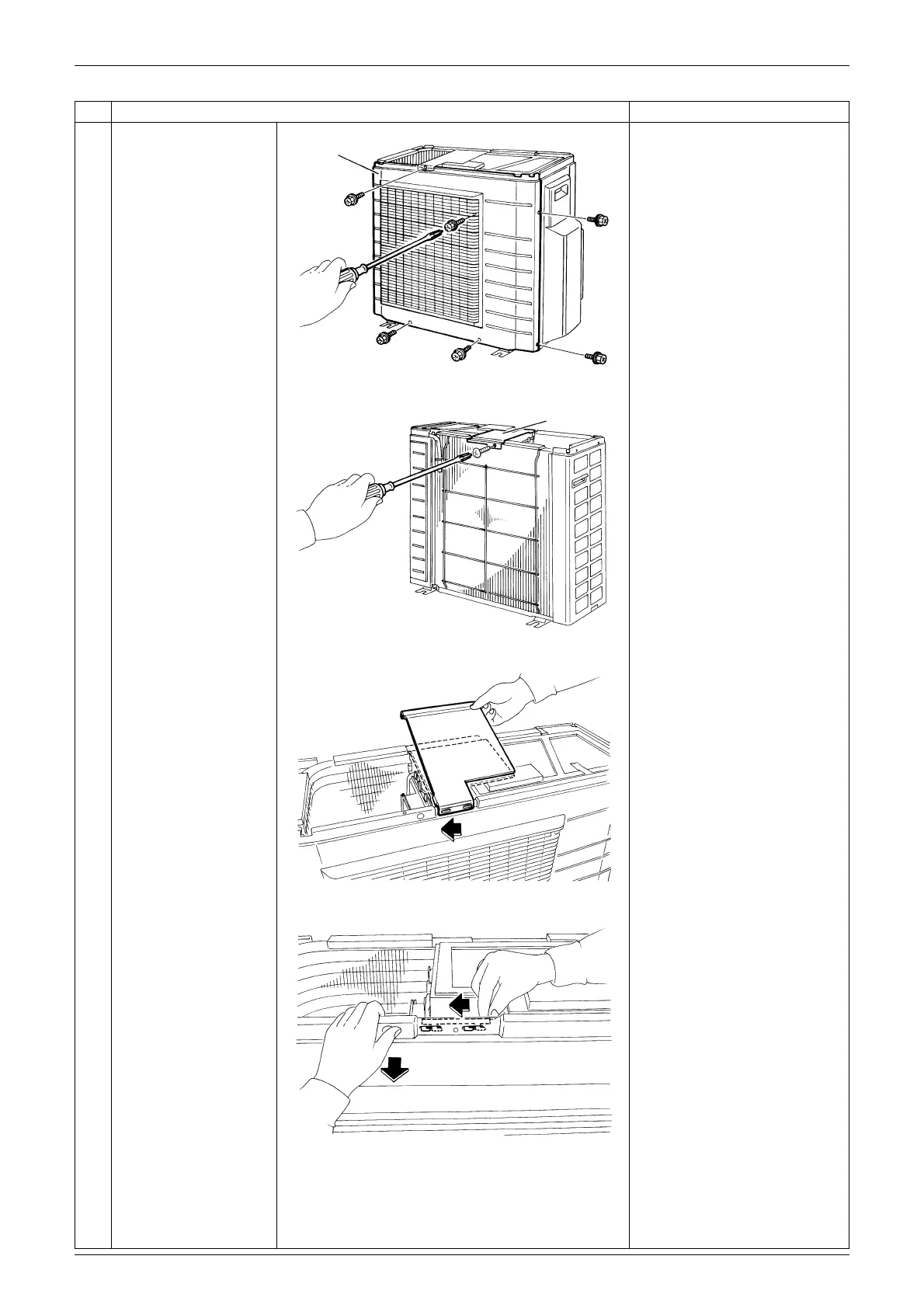

Remove the 6 screws
of the front panel.
4
Remove the screw of
the shield plate.
5
Slide the shield plate to
the left to unfasten the
hooks and remove the
shield plate.
6
Unfasten the upper 2
hooks.

Align the position of hole of
the upper hook to pull the
front panel out.
Step
Procedure Points
Front panel
(R17165)
Shield plate
(R11204)
(R5499)
(R5500)
