Si121174 Removal of Electrical Box

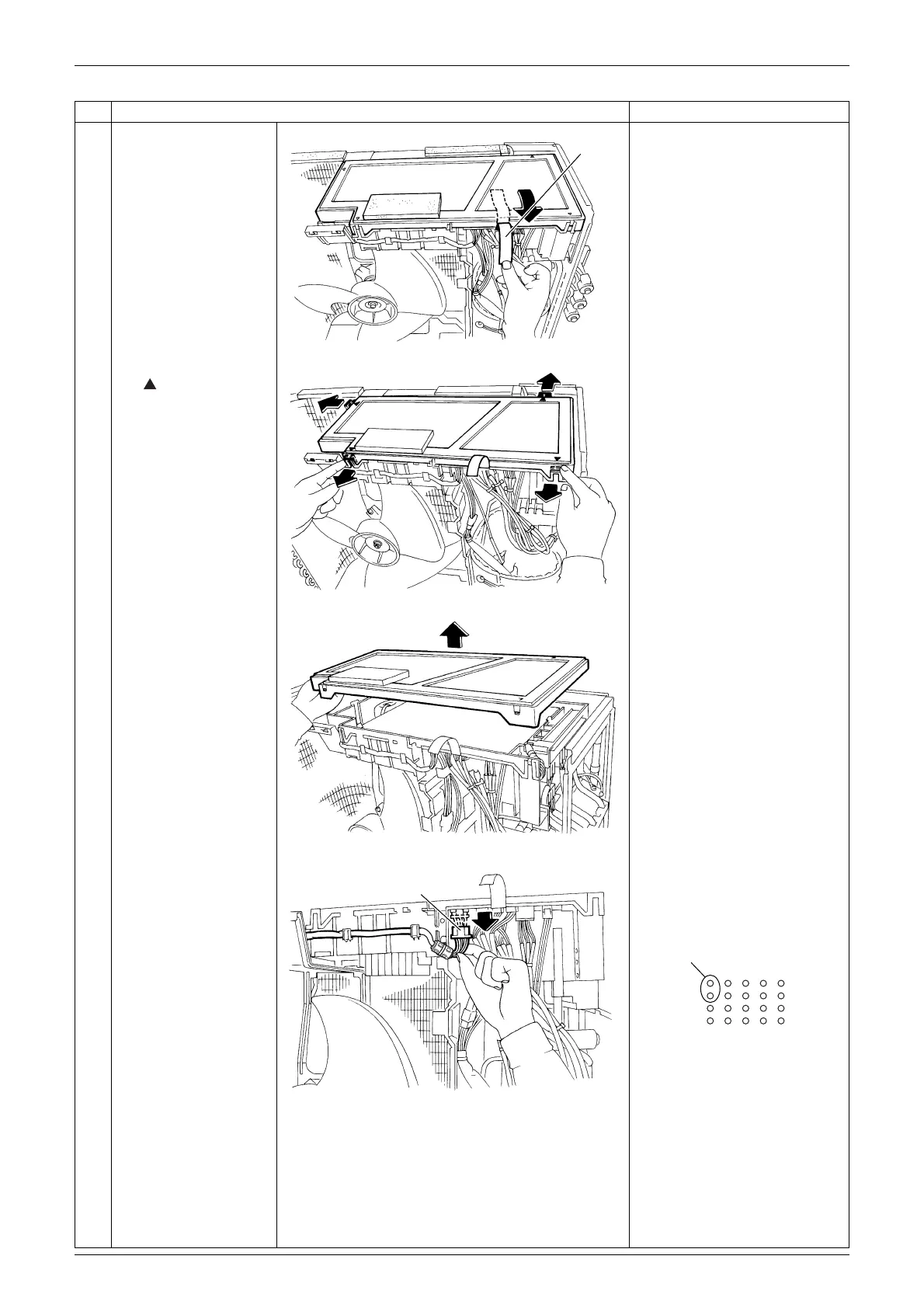

Removal Procedure 7
2
Detach the fixing tape
of the electrical box
cover.
3
Unfasten the 4 hooks at
the mark of the
electrical box cover.
4
Lift the electrical box
cover up and remove it.
5
Detach the clamp and
disconnect the
connector for the fan
motor [S70].

When reassembling, insert
the clamp into the either hole
as below.

Some models have no ferrite
core for the harness of [S70].
Step
Procedure Points
(R5512)
Fixing
tape
(R5513)
(R5514)
(R17166)
[S70]
For the ferrite
core of fan
motor harness
(R17167)
