Outdoor Unit SiBE04-809
186 Removal Procedure

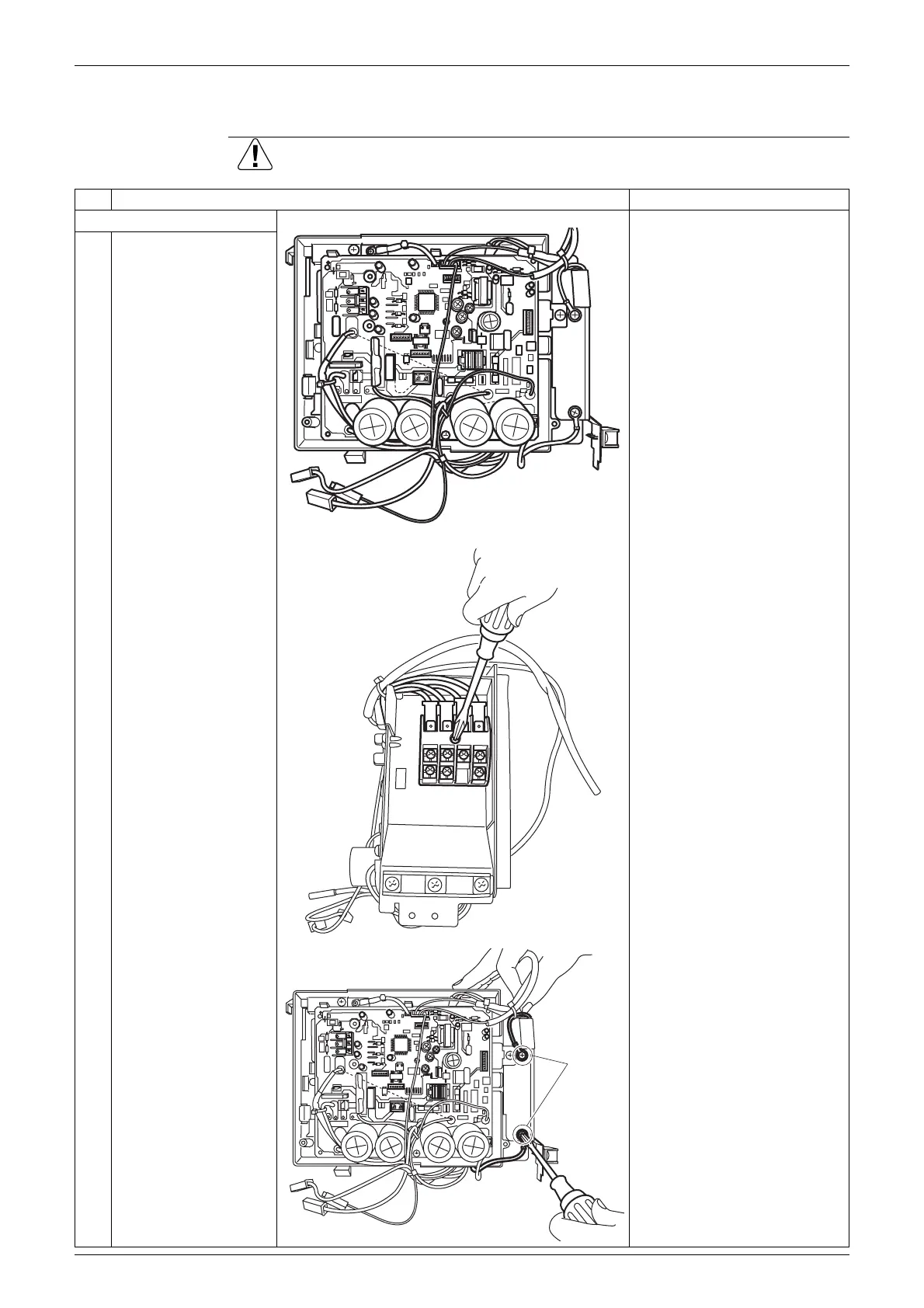

2.7 Removal of PCB
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the PCB.

You can remove the PCB
when you disconnect the
read wires on the terminal
board without removing the
electrical box.

PbF (Pb free brazing) is
adopted.

See page 11 for detail.
1
Feature of the PCB
2
Loosen the screw on
the terminal board.
3
Release the 2 earth
terminals.
(R7255)
(R7256)
(R7257)
The
earth
terminals
