8

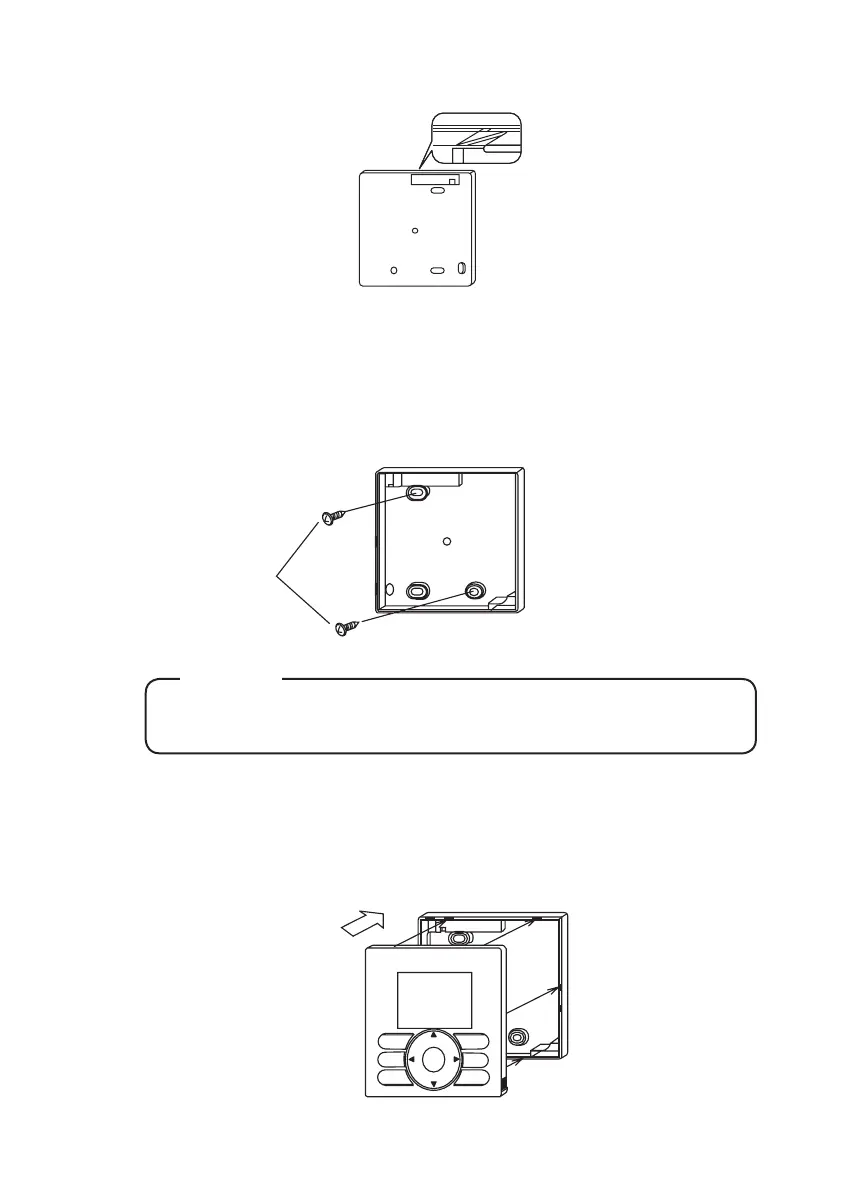

2.2 Location where the wiring will enter the remote controller.
Cut the plastic at the notched area and
remove any remaining burrs.
Top center outlet
2.3 Installation procedure for the lower case.
When wiring the remote controller through the top center or rear access points, attachment
of the wire to the lower case is required before it is wall mounted. Closely follow the wiring
procedures.
Wall installation
Screw
•
Install the control on a fl at surface only.
•
To prevent deformation of the lower case, avoid over-tightening the installation
screws.
! NOTE
2.4 Install the upper case.
•
Align the upper case with tabs of the lower case (6 points), insert and install the
upper case.
•
Install the wiring with care to prevent pinching.
•
Peel off the protective membrance which overlays the upper case.
