Daikin EBLA09DA3V3 - Page 2

General
(mm)

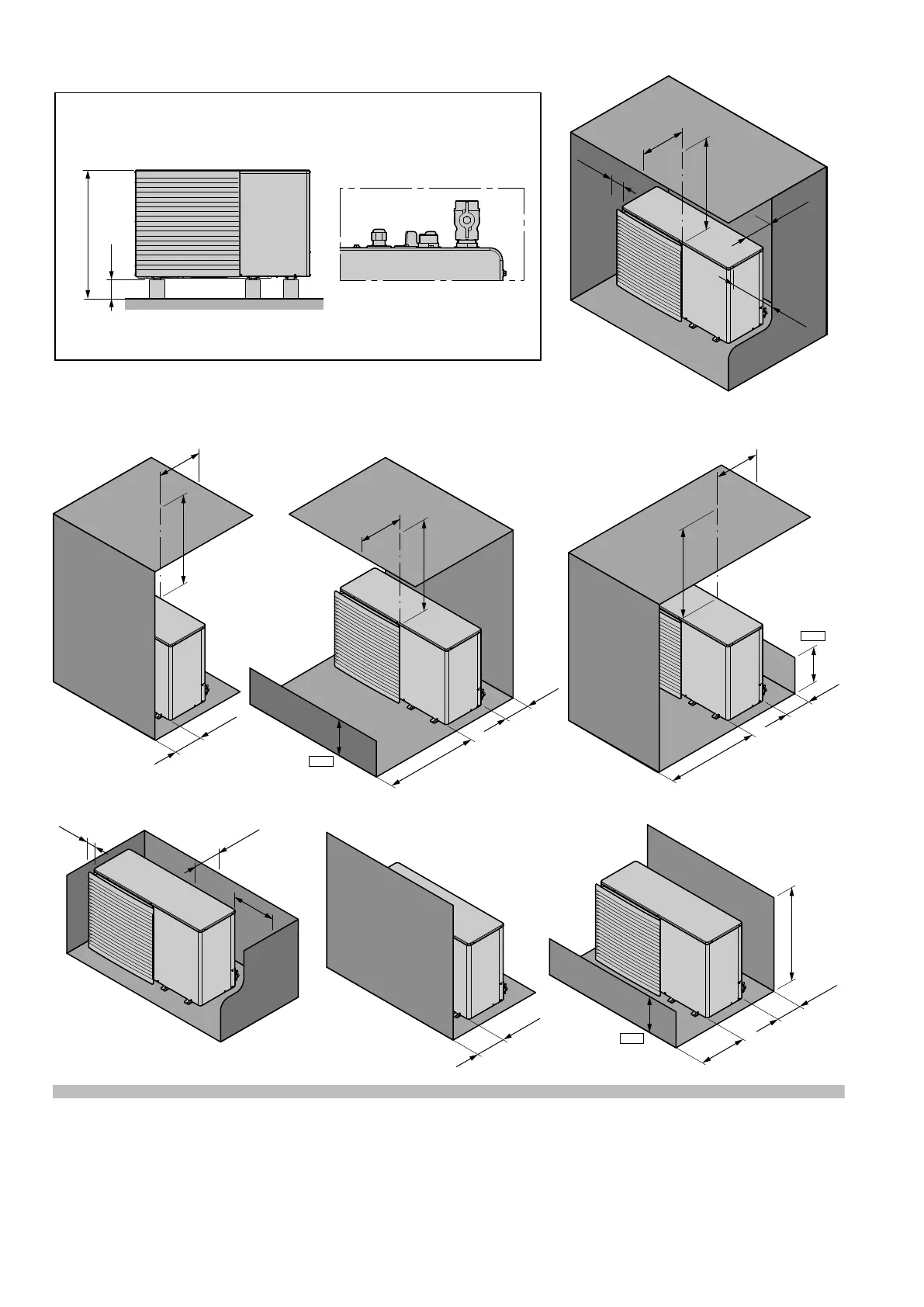

3D128957
*
Top-side obstacle
Suction-side obstacle
Top-side obstacle
Discharge-side obstacle
Top-side obstacle
Suction + discharge-side obstacle
Wall on suction side
No top-side obstacle
Suction-side obstacle
No top-side obstacle
Discharge-side obstacle
No top-side obstacle
Suction + discharge-side obstacle
Top-side obstacle
Suction + discharge-side obstacle
Wall on discharge side
≥150
H
≥500
≤500
≥150
≥1000
≥300*
≥1000
≤500
≥300
X
X<H
≤500
≤500
≥1000
≥300*
≥300*
≥500
≥100
≥1000
≥1000
X
X<H
X
X<H
≥300*
≥500
≥300
≥1000
≥
300*
Wall height unrestricted
1
