EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
a
cd
e
f g
b

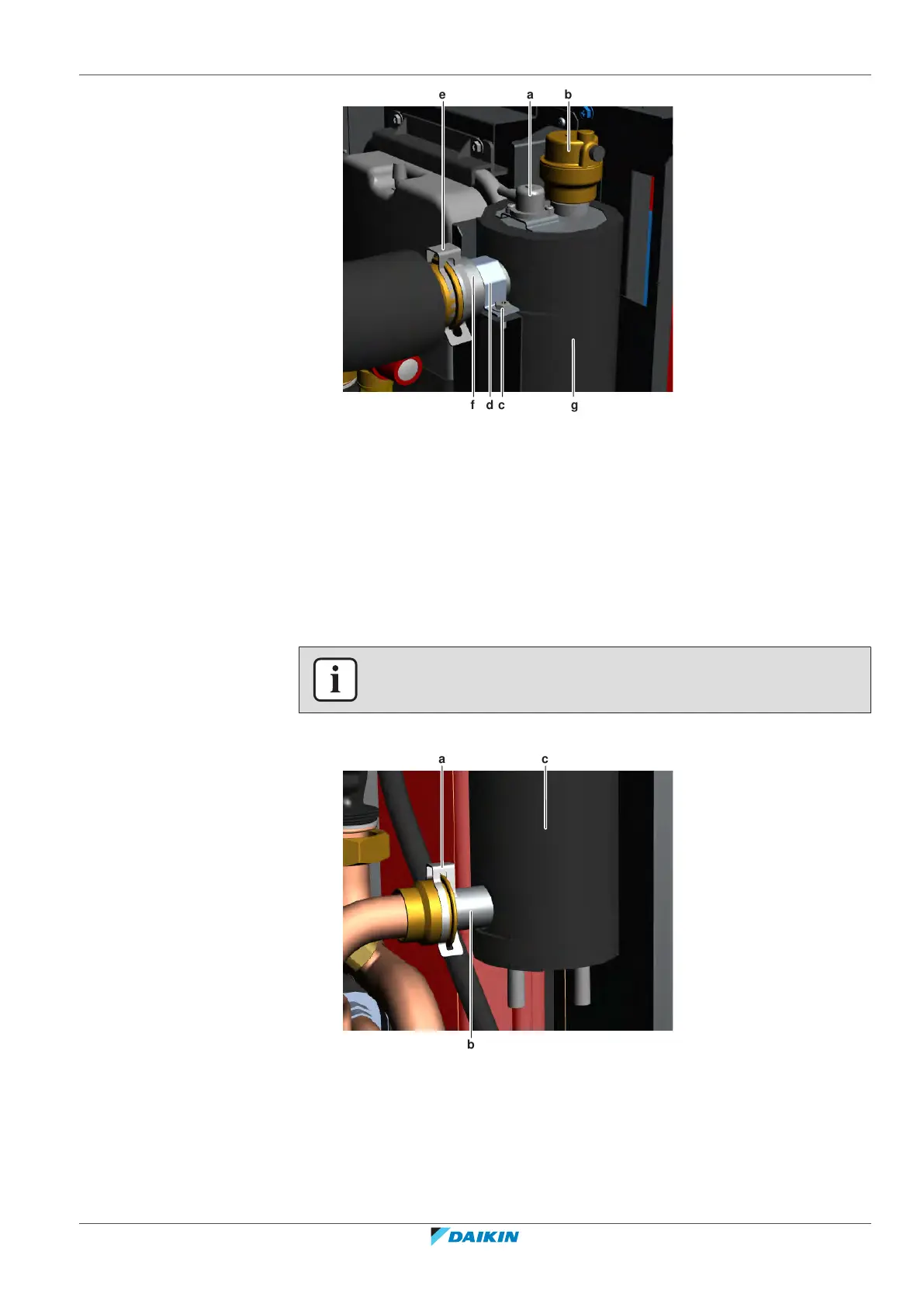

a Backup heater thermal protector sensor
b Air purge valve
c Screw (pipe clamp)
d Pipe clamp
e Clip
f Upper backup heater coupling
g Backup heater
5 Remove the clip from the upper backup heater coupling.
6 Remove the pipe from the pipe clamp to improve manoeuvrability of the
backup heater.
7 Separate the upper backup heater coupling.
INFORMATION
Make sure that the O-ring stays in place.
8 Remove the clip from the lower backup heater coupling.
a
b
c
a Clip
b Lower backup heater coupling
c Backup heater
9 Separate the lower backup heater coupling.
