Service manual
210
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
a
c
d
b

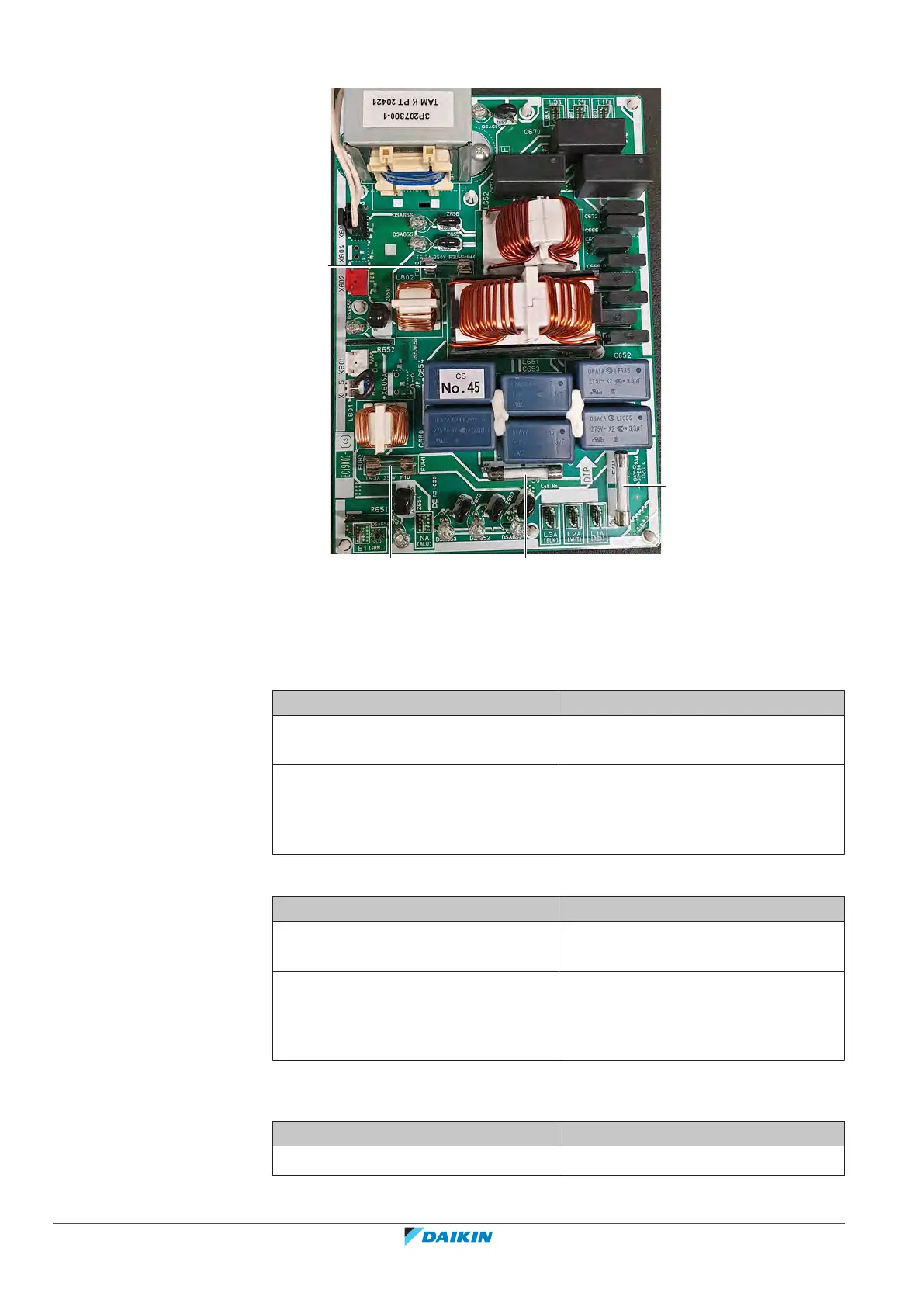

a Fuse F1U
b Fuse F3U
c Fuse F4U
d Fuse F5U
For fuses F4U and F5U
Blown fuse on the noise filter PCB? Action
Yes Replace the noise filter PCB, see "Repair
procedures"[4211].
No Return to "Checking
procedures"[4204] of the noise filter
PCB and continue with the next
procedure.
For fuses F1U and F3U
Blown fuse on the noise filter PCB? Action
Yes Replace the blown fuse, see "Repair
procedures"[4211].
No Return to "Checking
procedures"[4204] of the noise filter
PCB and continue with the next
procedure.
Problem solved?
After all checking procedures listed above have been performed:
Is the problem solved? Action
Yes No further actions required.
