3 | Components
Service manual
227
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
a
b
c
dd
e
c

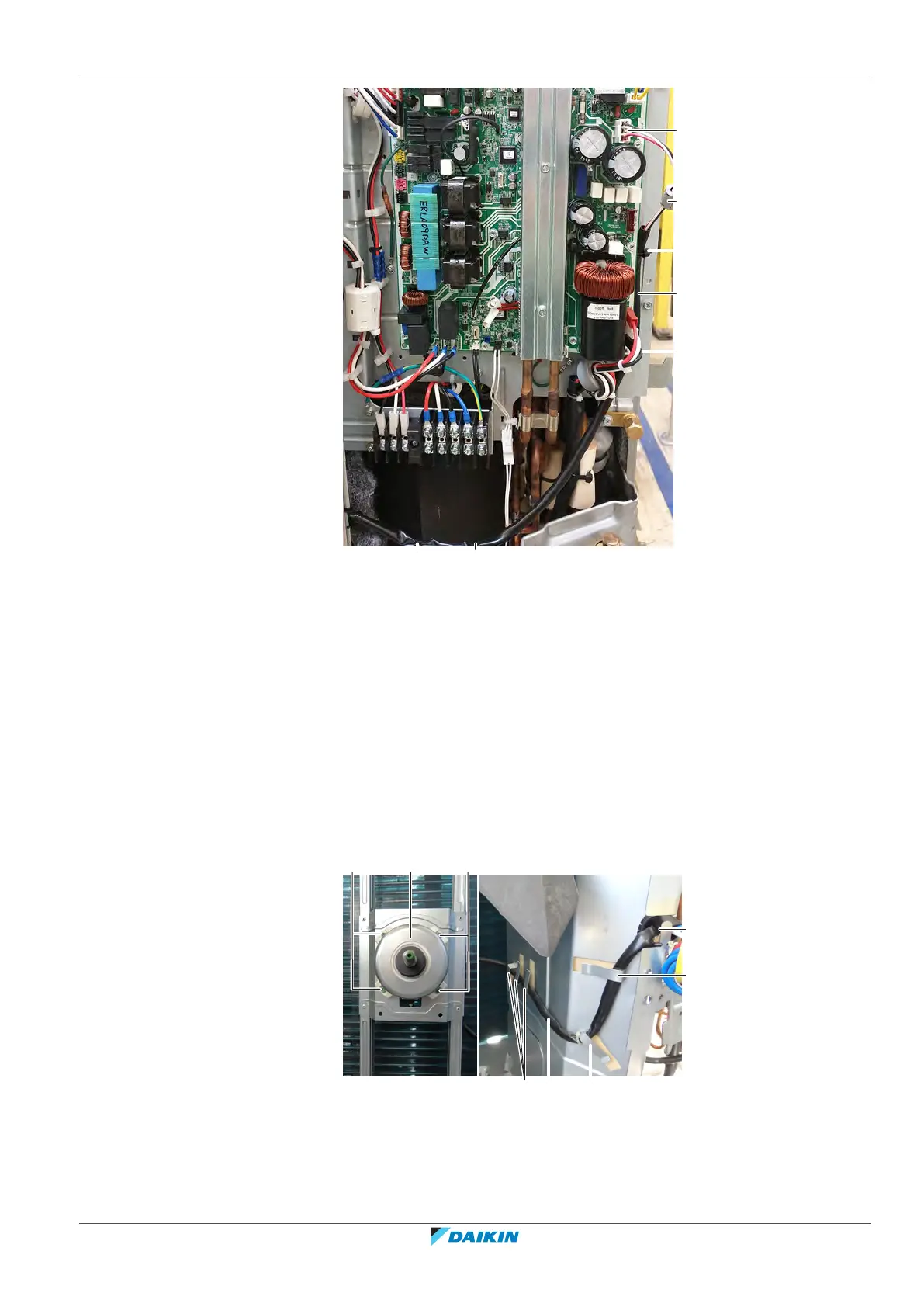

a DC fan motor connector X108A
b DC fan motor harness
c Tie strap (left side of PCB)
d Tie strap (on stop valve fixation plate)
e Ferrite core
3 On the left side of the main PCB, cut the tie straps that fix the DC fan motor
harness.
4 Cut the 2 tie straps that fix the DC fan motor harness to the stop valves
fixation plate.
5 Unlock the ferrite core to remove the DC fan motor harness from the core.
6 If applicable; cut the tie strap(s) that tie up the excessive DC fan motor
harness.
7 Slightly bend the harness retainers to detach the DC fan motor harness.
a bb
c
b
e
dd
a DC fan motor harness
b Harness retainer
c Opening in partition plate
d Screw
e DC fan motor assy
8 Guide the DC fan motor harness though the opening in the partition plate.
