3 | Components
Service manual
118
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03

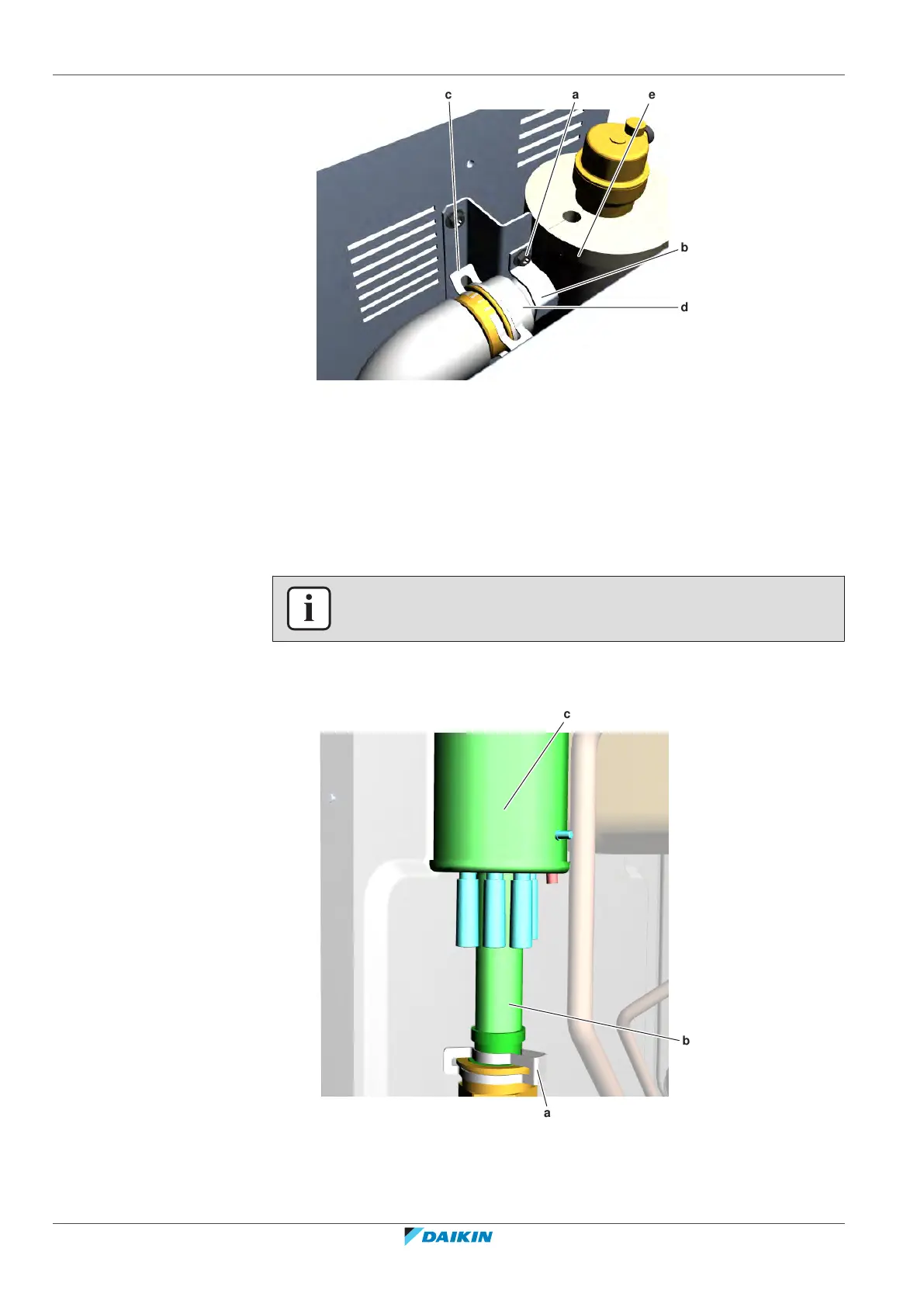

a e
d
c
b
a Screw
b Pipe clamp
c Clip
d Upper backup heater coupling
e Backup heater
5 Remove the clip from the upper backup heater coupling.
6 Remove the pipe from the pipe clamp to improve manoeuvrability of the
backup heater.
7 Separate the upper backup heater coupling.
INFORMATION
Make sure that the O-ring stays in place.
8 Remove the backup heater thermal protector sensor from the backup heater.
9 Remove the clip from the lower backup heater coupling.
c
a
b
a Clip
b Lower backup heater coupling
c Backup heater
10 Separate the lower backup heater coupling.
