3 | Components
Service manual
93
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03

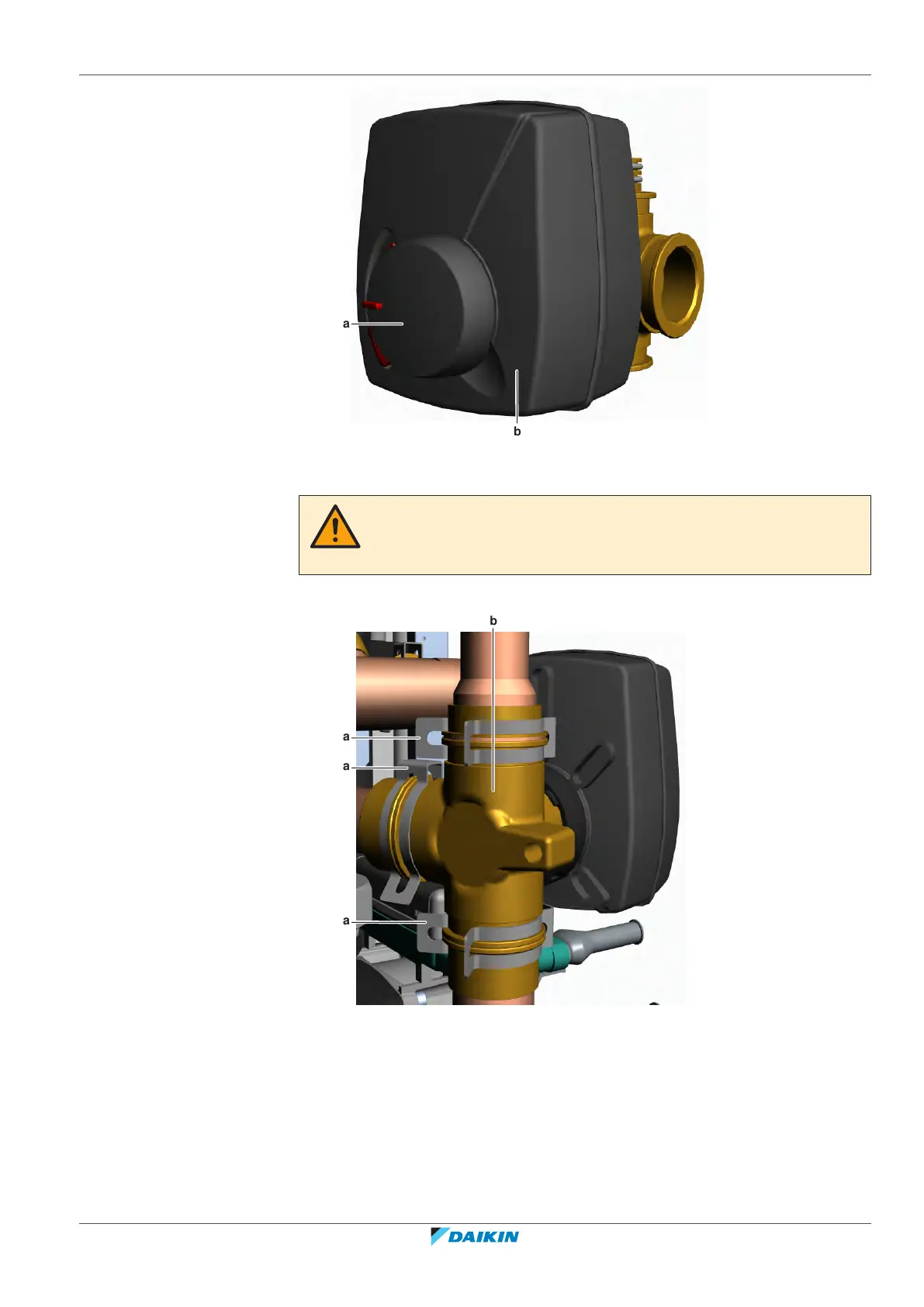

a
b
a 3-way valve knob
b 3-way valve motor
CAUTION
Check the condition of the O-rings and replace if needed. Apply water to the O-rings
before installation.
6 Install the 3‑way valve body.
a
b
a
a
a Clip
b 3-way valve body
7 Install the 3 clips to fix the 3‑way valve body to the piping.
8 Install the insulation around the 3‑way valve body.
9 Route the 3‑way valve motor harness through the grommet in the switch box.
10 Connect the 3‑way valve motor wiring to the wire terminal X2M.
11 Install new tie straps to fix the 3‑way valve harness.
12 Open the valve (if equipped) of the water circuit towards the expansion vessel.
