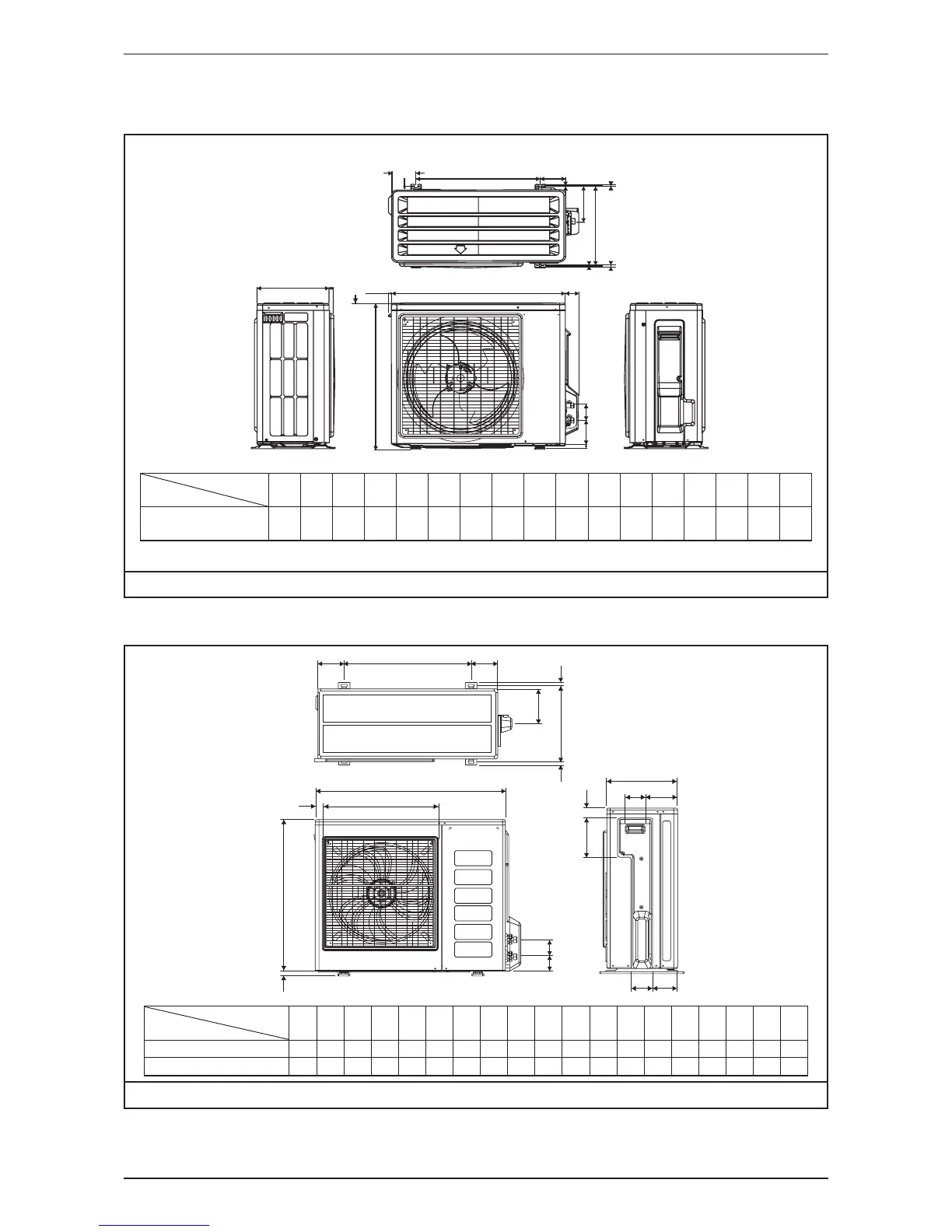

Outline & Dimension
Outdoor Unit
Model: RN10/15FV1
H I
N
G
B CD
E F
A
M K L
O
P
J
2.0
Q
Dimension
Model
A B C D E F G H I J K L M N O P Q
RN10/15FV1 550 658 51 11 273 16 14 470 96 93 94 60 14 133 8 10 299
Note: Dimension in mm
Model: RN20/25CV1 / RN28/30CV1
A
N
B
L
L
M
Q
O
D
N
C
HG
FE
JI
S
R
P
K
Dimension
Model
A B C D E F G H I J K L M N O P Q R S
RN20/25CV1 855 628 328 520 179 46 93 149 101 113 603 126 164 15 34 23 362 73 75
RN28/30CV1 855 730 328 520 179 46 93 149 101 113 603 126 164 15 34 23 362 73 75
Note: Dimension in mm
