Daikin FTKL35UV16W - Page 34

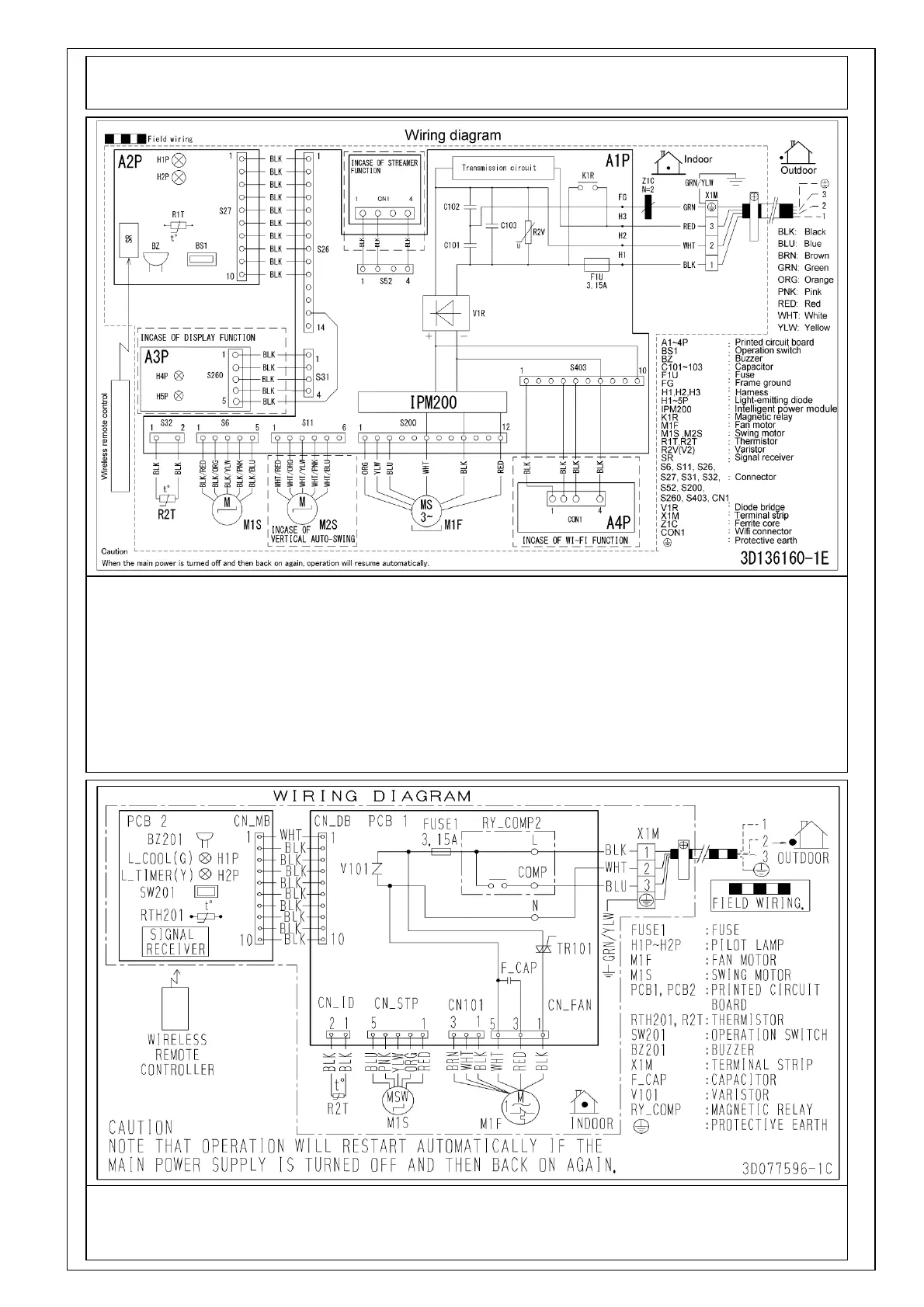

Indoor Unit -Wiring Diagram
Applicable Model :- FTKM50UV16VA, FTKM60UV16U, GTKM50UV16VA, GTKM60UV16U, MTKM50UV16VA,
MTKM60UV16U, ATKM50UV16VA, FTKU50UV16VF, GTKU50UV16VF, GTKL60UV16U, FTKF35UV16UA,
ATKL35UV16W, ATKL35UV16WA, ATKM35UV16WA, FTKL35UV16W, FTKC48UV16W, FTKC48UV16WF,
FTKL35UV16WA, MTKL35UV16W, MTKM35UV16W, MTKL35UV16WA, MTKM35UV16WA, GTKM35UV16W,
GTKL35UV16W, GTKL35UV16WA, GTKU35UV16W, GTKM35UV16WA, FTKM35UV16W, FTKU35UV16W,
FTKM35UV16WA, ATKL60UV16U, FTKL60UV16U, ATKL60UV16VC, ATKM50UV16VAC, FTKL60UV16VC,
FTKM50UV16VAC, FTKU50UV16VFC, GTKL60UV16VC,GTKM50UV16VAC, GTKU50UV16VFC, MTKL60UV16VC,
MTKM50UV16VAC, ATKL50UV16UA, FTKL50UV16UA,MTKL50UV16UA, GTKL50UV16UA , FTKC35UV16W,
GTKC35UV16W, FTKU35UV16WA & GTKU35UV16WA.
Applicable Model :- GTKL71UV16T.
