Daikin FTKM25PVM Removal Procedure

Drain Pan / Swing Motors / Vertical Blade ASSYs Si041551EB

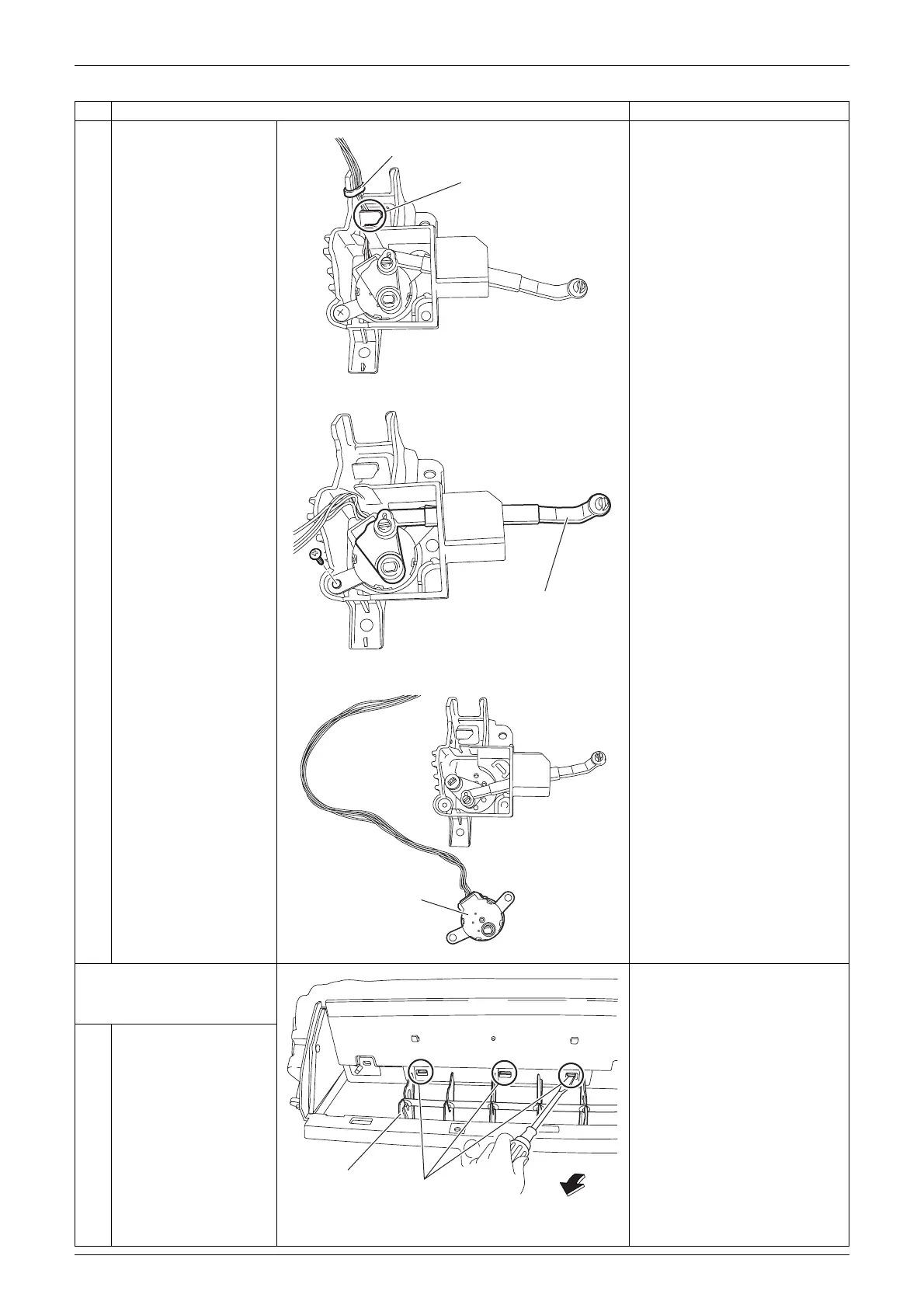

14 Removal Procedure
3 Cut the clamp and
release the harness
from the hook.
4 Remove the screw and
pull out the link shaft.
5 Remove the swing
motor for vertical
blades.
4. Remove the vertical blade
ASSYs (auto-swing
models).

Each vertical blade ASSY
has 5 fins. It is impossible to
replace only one fin.

The vertical blade ASSY is
not marked for difference
between right and left.
1
2
3
Unfasten the 3 hooks of
the vertical blade ASSY
by pressing them with a
flat screwdriver.
Remove the vertical
blade ASSY.
Remove the other
vertical blade ASSY in
the same way.
Step Procedure Points
Hook
Clamp
(R22089)
Link shaft
(R24250)
Swing motor for
vertical blade
(R22113)
Hook
Vertical blade
ASSY
(R22114)
