Daikin FTXN60KV1B Service Manual

Removal of Front Grille Si041055
6 Removal Procedure
2

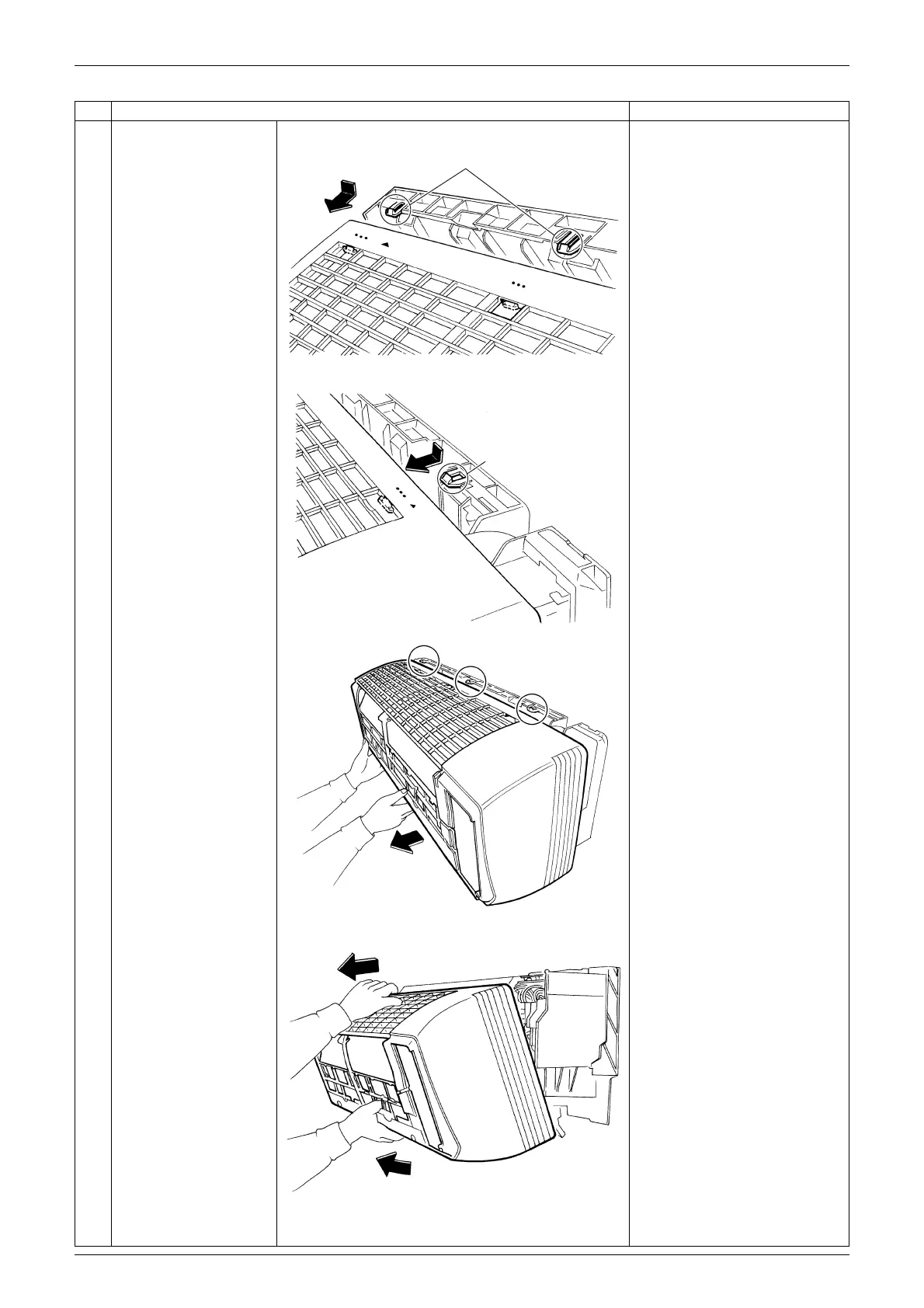

Unfasten the 3 hooks
on the top of the front
grille.

The convex marks (...) on
the front panel indicate the
position of the hooks.
3
Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.

Make sure that all the 3
hooks are engaged securely
when reassembling.
Step Procedure Points
Hook
(R2759)
Hook
(R2760)
(R2761)
(R2762)
