Nomenclature
3
Remark:
* : Air Flow Rate value under Nomenclature is an indication.
Please refer to Engineering and Physical Data for exact capacity value
Note:
Please consult factory for customised enquiry.

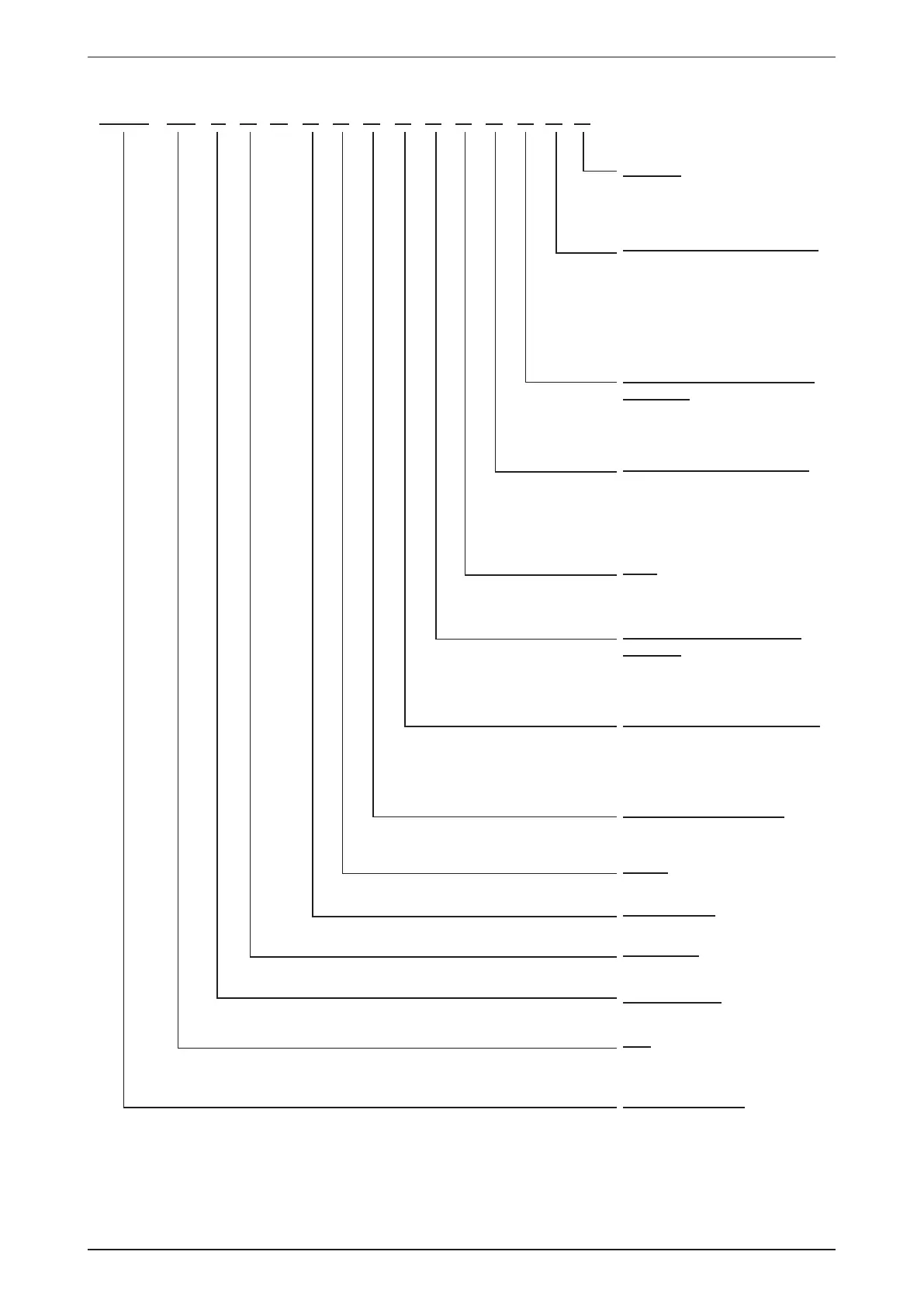

FWC 20 F D - A E 5 C R F A X A A
Fan Coil Unit Type
FWC: Ceiling Concealed
Size
02: 200CFM*
03: 300CFM*
Product Series
F: F series
Application
D: High ∆T (9°C)
Power Supply
A: 220-240V/1Ph/50Hz
Market
E: Export w/o Marking
External Static Pressure
5: 50Pa
8: 75-80Pa
Coil & Water Pipe Connection
C: 3 Row, Right Piping
D: 3 Row, Left Piping
E: 4 Row, Right Piping
F: 4 Row, Left Piping
Return Air Plenum & Filter
Removal
R: Rear Return & Side/Bottom
Filter Removal
Filter
F: 8mm Saranet Filter
H: 1inch Aluminium Filter
Drain Pan Material & Length
A: Coated Cold Rolled Steel &
Standard Length
D: Stainless Steel & Standard
Length
Motor/Control Module/Wired
Controller
X: AC/Without Control Module/
Without Wired Controller
Revision
A: Revision 1
B: Revision 2
Insulation Material/Thickness
A: PE/Drain Pan
Standard;Return Air Plenum
Without Insulation
K: NBR/Drain Pan
Standard;Return Air Plenum
Without Insulation
